Remove/Install Left Cylinder Head - AR01.30-P-5770SVZ

Engine 279 in model 223

MODIFICATION NOTES

17.06.2021

Information added.

Operation step 18.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove engine from front axle carrier.		AR01.10-P-2510SVZ
2	Remove transmission from engine.		AR27.10-P-0500SVZ
3	Mount the engine on the assembly stand with the engine crane.
	000 588 27 31 00 Assembly stand for cars		WS01.00-P-0262B
	000 588 00 62 00 Load tilter	Commercially available devices/tools: Engine crane	WS01.00-P-0102B
4	Remove front cap from cylinder head (8).		AR01.30-P-5711SVZ
5	Remove charge-air distributor.		AR09.41-P-8683SVZ
6	Remove left exhaust gas turbocharger with the left exhaust manifold.		AR09.40-P-6037SVZ

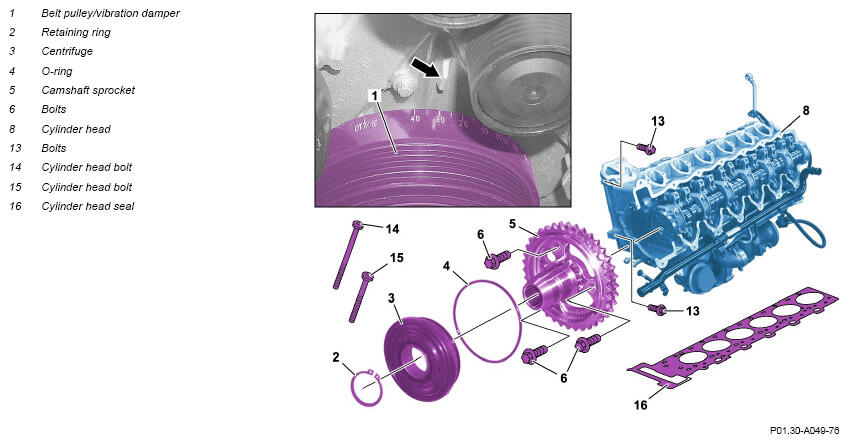

7	Place the piston of cylinder 1 at a 30° CKA (crank angle) after top dead center (for ignition TDC).	Do not turn engine opposite to the direction of engine rotation. The timing chain can skip otherwise and engine damage can occur. Rotate engine at crankshaft in direction of engine rotation until marking for a 30° crank angle on the belt pulley/vibration damper (1) coincides with marking on the timing case cover (arrow). Socket wrench bit	Fig 6
8	Remove the chain tensioner.		AR05.10-P-7800SVZ
9	Remove retaining ring (2) on camshaft sprocket (5) and remove centrifuge (3).		AR01.20-P-2100SVZ
10	Remove screws (6).	Camshaft sprocket bolt	*BA05.20-P-1001-02L
11	Place match marks on camshaft sprocket (5) and timing chain.

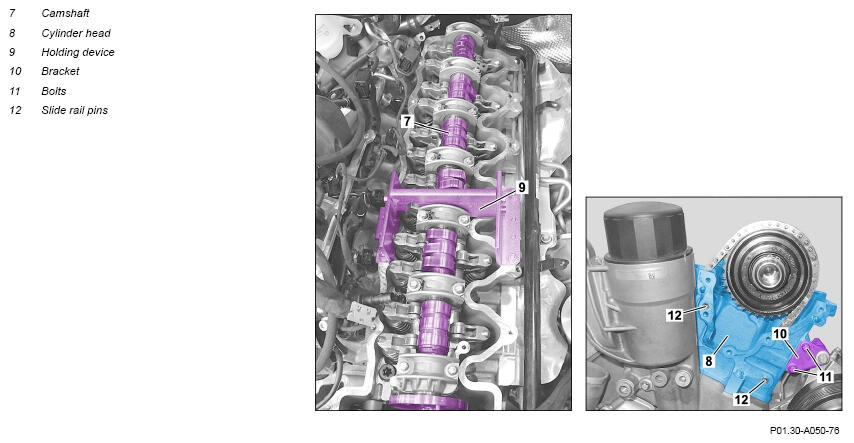

12	Remove camshaft sprocket (5) together with timing chain.	Rotate the camshaft (7) such that the holding device (9) can be mounted free of tension on the cylinder head (8). Retaining device	Fig 2
13	Unscrew screws (11) from holder (10).
14	Remove slide rail pins (12) from cylinder head (8).	Note different lengths of slide rail pins (12). Impact extractor	Fig 4
		Threaded bolt	Fig 5
15	Unscrew screws (13) from cylinder head (8).	Screw/bolt, cylinder head to timing case cover	*BA01.30-P-1002-01Z
16	Loosen and remove the cylinder head bolts (14, 15) in stages according to the loosening procedure.	Tightening specification	AR01.30-P-5800-07M
		Loosening procedure Observe tightening specifications for cylinder head bolts (14, 15). Observe the different screw lengths of the cylinder head bolts (14, 15). Lubricate cylinder head bolts (14, 15) at threads and bolt head contact surfaces.	AR01.30-P-5800-09M
		Screw/bolt, cylinder head to crankcase	*BA01.30-P-1001-01Z
		Screwdriver bit	Fig 3
17	Remove cylinder head (8).	Install new cylinder head gasket (16). Pay attention to pilot bushing for holding the cylinder head (8) in place.
	Clean
18	Clean threaded holes as well as sealing surfaces on cylinder head (8) and crankcase.	Do not use sharp-edged tools or abrasive paper. Otherwise, damage to the sealing surfaces and then engine and environmental damage may result. Mechanically processing or cleaning the sealing surfaces, spot grinding with abrasive paper or other abrasive materials to remove seal residue is not permitted. Even the smallest amounts of aluminum oxide particles, grinding particles or wear debris entering the oil reservoir, the bearing points or the combustion chambers will cause damage and thus result in damage to the engine/major assemblies. The sealing surfaces must feel even after treatment. The sealing surfaces need not be metallic bright; thin layers of firmly adhering silicone sealant may remain. Only cleaning with the approved adhesive and sealant remover is permitted. Observe processing information from manufacturer.	AR01.00-P-0050-01A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Loctite 7200	*BR00.45-Z-1038-04A
	Check
19	Check valves, valve seats and valve guides for damage. General information on checking valves, valve seats and valve guides	If there is a problem, ↓ Replace corresponding component.	AH05.30-P-1000-02SZ
			AR05.30-P-3511SVZ
20	Check cylinder head bolts (14, 15) for permissible dimension.		AR01.30-P-5800-03M
		Cylinder head bolt If there is a problem, ↓ Replace the cylinder head bolts (14, 15).	*BE01.30-P-1001-04B
21	Check sealing surfaces between crankcase and cylinder head (8) for cracks, shrink holes, and flatness. Notes on application of flange sealants to seal major assemblies	Do not rework the cylinder head (8) or crankcase (surface grinding). The cylinder head (8)/crankcase may otherwise be destroyed because the machining tolerances are exceeded. Sealing surfaces between crankcase and cylinder head (8) are provided with an 0.8 mm-thick silicone layer during series production. During repair installation, apply sealant only if there are shrink holes in the sealing area. Process the sealant within 10 min.	AH00.00-P-0500-01MNE
		Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Application gun If cracks, shrink holes, or unevenness are present, ↓ Replace the crankcase/cylinder head (8).	Fig 1
22	Install in the reverse order.
	Check
23	Check, correct engine oil level.		AP18.00-P-1812A
	Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
24	Carry out engine test run and check engine for leak tightness.

CYLINDER HEAD/CYLINDER HEAD BOLTS

Number	Designation			Engine 279
BE01.30-P-1001-04B	Cylinder head bolt	Thread diameter	M	10
		Length (L) when new	mm	168, 5
		Length (L)	mm	≤170
		-		-

CYLINDER HEAD

Number	Designation				Engine 279
BA01.30-P-1001-01Z	Screw/bolt, cylinder head to crankcase	M10	Stage 1	Nm	40
			Stage 2	∠°	90
			Stage 3	∠°	90

CYLINDER HEAD

Number	Designation			Engine 279
BA01.30-P-1002-01Z	Screw/bolt, cylinder head to timing case cover	M6	Nm	9

CAMSHAFT, CAMSHAFT ADJUSTMENT

Number	Designation			Engine 279
BA05.20-P-1001-02L	Camshaft sprocket bolt	Stage 1	Nm	20
BA05.20-P-1001-02L	Camshaft sprocket bolt	Stage 2	∠°	90

Fig 1: Identifying Application Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Retaining Device (285 589 00 40 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Screwdriver Bit (000 589 03 10 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Impact Extractor (116 589 20 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Threaded Bolt (116 589 01 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Sealant, Loctite 5970, 50 ml	A 003 989 98 20 10
BR00.45-Z-1038-04A	Loctite 7200	A 010 989 90 71
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
