Tightening Specifications For Cylinder Head Bolts - AR01.30-P-5800-07M

Engine 275, 277, 279, 285

CYLINDER HEAD

Number Designation Engine 277 Engine 279
BA01.30-P-1001-01Z Screw/bolt, cylinder head to crankcase M10 Stage 1 Nm 40 40
Stage 2 ∠° 90 90
Stage 3 ∠° 90 90
CYLINDER HEAD

Number Designation Engine 275 Engine 285
BA01.30-P-1004-01G Internal Torx bolt, cylinder head to crankcase Stage 1 Nm 40 40
Stage 2 ° ∠ 90 90
Stage 3 ° ∠ 90 90
Fig 1: Identifying Screwdriver Bit (000 589 03 10 00)
G16227334Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Screwdriver Insert (000 589 04 10 00)
G16227335Courtesy of MERCEDES-BENZ USA

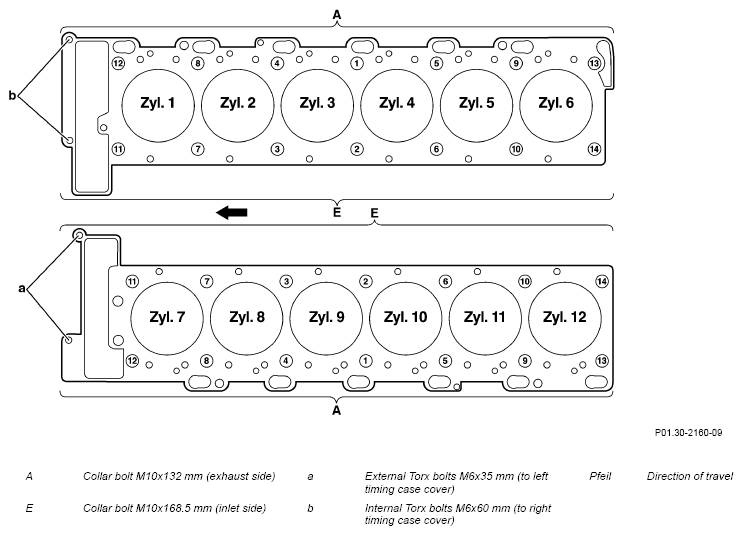

G16227336Courtesy of MERCEDES-BENZ USA

Tightening procedure/bolt assignment

Tightening specifications for right and left cylinder head

  1. Tighten down cylinder head bolts using the SPECIAL TOOL screwdriver insert or SPECIAL TOOL screwdriver insert.

    Engine 277, 279

    TORQUE SPECIFICATION

    Engine 275, 285

    TORQUE SPECIFICATION

    IMPORTANT Observe tightening procedure, see tightening procedure.

    IMPORTANT Cylinder head bolts must not be retightened.

    If the tightening torque was exceeded on a cylinder head bolt.

    ↓

    Remove cylinder head bolt, check the shank length (replace cylinder head bolt if necessary) and begin to tighten to stage 1.
