Remove/Install Transmission With Torque Converter - AR27.10-P-0500SVZ

Transmission 725.0 in model 223 with engine 279

MODIFICATION NOTES

07.11.2023

Screw/nut, transmission to engine

BA27.10-P-1001-04H

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB

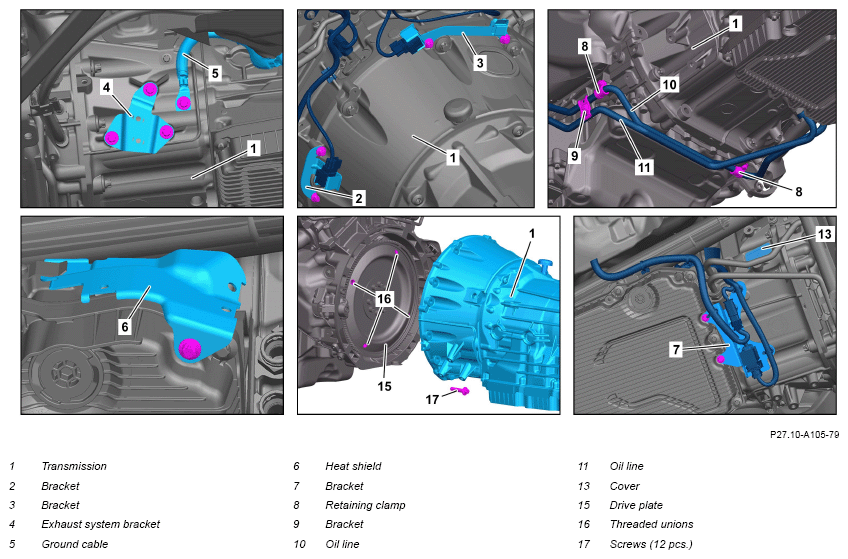

	Remove/install
1	Secure vehicle to prevent it moving away.
2	Shift the transmission (1) into neutral position.
3	Release parking brake.
4	Remove ground line of battery.		AR54.10-P-0051S
5	Raise vehicle using vehicle lift and secure in place.		AR00.60-P-1006A
6	Remove center engine compartment lining and rear engine compartment lining.	Only install engine compartment paneling after a leak test.	AR61.20-P-1105S
7	Remove rear propeller shaft.		AR41.10-P-0050SVZ
8	Remove left catalytic converter.		AR49.20-P-0101SVZ
9	Remove right catalytic converter.		AR49.20-P-0102SVZ
10	Detach left and right exhaust system holder (4) from transmission (1).	Screw, Exhaust system bracket to transmission	*BA49.10-P-1004-02Y
11	Remove ground line (5) from transmission (1).	Bolt, ground strap to transmission housing	*BA54.18-P-1001-02D
12	Remove heat shield (6).		AR27.40-P-0700-01S
		Bolt, leaf spring for heat shield to transmission	*BA27.10-P-1008-04H
		Bolt, heat shield to oil pan	*BA27.10-P-1009-04H
13	Release and disconnect central connector from transmission (1).
14	Detach holder (7) from oil pan and place to one side with attached electrical wiring harnesses.	Screw, electrical wiring harness holder to oil pan	*BA27.10-P-1035-04H
15	Detach retaining clamps (8) and holder (9) from engine housing.	Screw, holder for oil line to engine block	*BA27.55-P-1025-01D
16	Detach oil lines (10, 11) from transmission (1) and seal connections with suitable stop plugs.		AR27.10-P-0501-03LF
		Assembly cleaner	*BR00.45-Z-1028-04A
		Record plug	Fig 2
17	Detach front axle differential propeller shaft from front axle differential.	Transmission 725.0 in model 223 with engine 279 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR41.10-P-0070SVZ
18	Remove cover (13).
19	Detach torque converter from drive plate (15).	Do not use an impact wrench or compressed air tool to remove the bolts. Otherwise, the threaded unions (16) in drive plate (15) may be damaged.	AR27.20-P-0001-01EWM
		Screw, torque converter/rotor to drive plate/star-shaped drive plate	*BA27.20-P-1001-01D
		Socket wrench bit	Fig 3
		Long wedge	Fig 1
20	Lower transmission (1) until holders (2, 3) are accessible.
21	Detach holders (2, 3) from transmission (1) and place to one side with attached electric lines.	Screw, electrical wiring harness holder to torque converter housing	*BA27.10-P-1036-04H
22	Remove screws (17).	Screw/nut, transmission to engine	*BA27.10-P-1001-04H
23	Detach transmission (1) together with torque converter and front axle differential propeller shaft from engine and remove.
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
	000 588 24 62 00 Major assembly mount	Secure torque converter against falling down. Damage will otherwise occur.	WS01.00-P-0253B
24	Remove torque converter from torque converter housing.	If necessary.	AR27.20-P-0050EWM
25	Check threaded unions (16) for damage and looseness.	If threaded unions (16) are damaged or loose, ↓ Replace drive plate (15).	AR03.30-P-8003SVZ
26	Remove corrosion from crankshaft.		AR03.20-P-1000-01A
		Multi-purpose paste	*BR00.45-Z-1009-06A
		Assembly cleaner	*BR00.45-Z-1028-04A
27	Install in the reverse order.
	Check
28	Check and correct transmission oil level.		AR27.00-P-0270EWN
29	Read out and delete fault memory.
			AD00.00-P-2000-06FR
30	Perform transmission adaptation with vehicle	When replacing or repairing transmission (1).
			AD00.00-P-2000-06FR
31	Reset data on service life of torque converter lockup clutch with the vehicle diagnosis system.	When replacing or repairing torque converter.
			AD00.00-P-2000-06FR
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
32	Perform engine test run and check transmission (1) for proper operation and leak tightness.
