Remove/Install Engine From/Onto Front Axle Carrier - AR01.10-P-2510SVZ

Engine 279 in model 223

MODIFICATION NOTES

08.12.2021

Bolt, front engine mount to engine support

Model 223 except code M005 (Vehicles with 4MATIC/all-wheel drive)

BA22.10-P-1002-03S

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove front axle shafts.	Engine 279 in model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR33.30-P-0620S

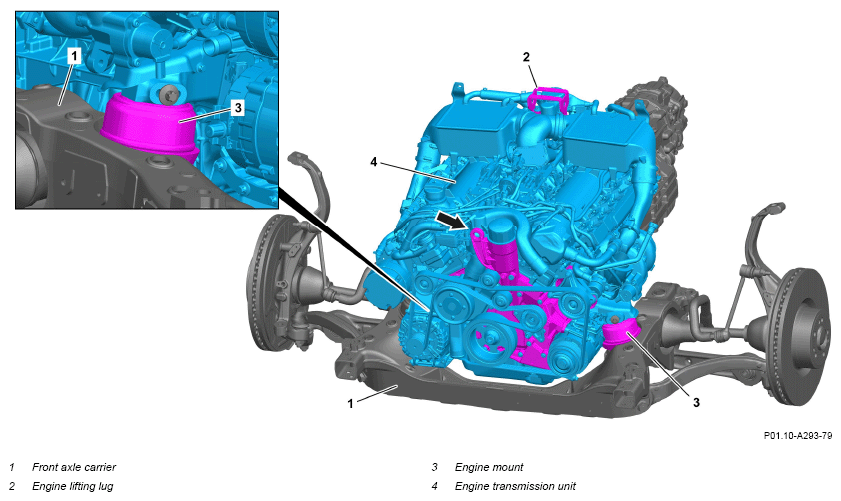

2	Remove engine transmission unit (4) with front axle carrier (1).		AR01.10-P-2500SVZ
3	Attach engine lifting lug (2).	Screw/bolt for engine suspension lug at top	*BA01.30-P-1007-01Z
		Lifting eye	Fig 1
	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
4	Secure front axle carrier (1) to lifting platform against slipping and falling down using tensioning strap.
	000 588 25 62 00 Lift table		WS01.00-P-0264A
5	Attach load tilter to engine lifting lug (2), engine lifting lug (arrow) and to engine crane.	Commercially available devices/tools
	000 588 00 62 00 Load tilter	Engine crane	WS01.00-P-0102B
6	Remove tension belt from engine transmission unit (4).
7	Carefully lift engine transmission unit slightly (4).	Do not subject engine mounts (3) to tension. Otherwise, the engine mounts (3) will be damaged.
8	Remove engine mounts (3) at respective engine carrier.	Screw front engine mount to engine support	*BA22.10-P-1002-03S
9	Lift engine transmission unit (4) off front axle carrier (1) and set down on suitable base.	Commercially available devices/tools
	000 588 00 62 00 Load tilter	Engine crane Aid of helper required.	WS01.00-P-0102B
10	Install in the reverse order.

CYLINDER HEAD

Number	Designation			Engine 279
BA01.30-P-1007-01Z	Screw/bolt for engine suspension lug at top	M10	Nm	60

ENGINE MOUNT, ENGINE SUPPORT (VEHICLE SIDE)

Number	Designation			Model 223 except code M005 (Vehicles with 4MATIC/all-wheel drive)	Model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive)
BA22.10-P-1002-03S	Screw front engine mount to engine support	Stage 1	Nm	100	45
BA22.10-P-1002-03S	Screw front engine mount to engine support	Stage 2	∠°	-	120

Fig 1: Identifying Lifting Eye (285 589 01 61 00)

Courtesy of MERCEDES-BENZ USA
