Remove/Install Cylinder Head Valves - AR05.30-P-3511SVZ
Engine 279 in model 223
Example illustration
Example illustration
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove | |||
| 1 | Remove cylinder head (1). | Cylinder head (1) on the right | AR01.30-P-5780SVZ |
| Cylinder head (1) on the left | AR01.30-P-5770SVZ | ||
| 2 | Remove hydraulic valve clearance compensating elements. | AR05.00-P-2011SVZ | |

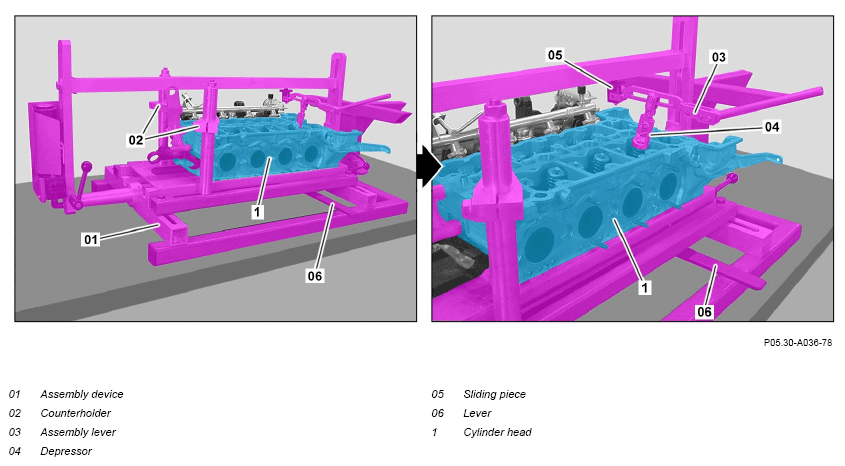

| 3 | Attach the relevant cylinder head (1) to the assembly device (01). | Ensure that the counterholders (02) are correctly attached to the cylinder head (1). The cylinder head (1) and valves (6) may otherwise be damaged. |
Fig 2 |
| 4 | Attach assembly lever (03) with depressor (04) to the sliding piece (05). | Fig 1 | |
| Fig 4 | |||
| 5 | Align the air cushion on the assembly device (01) centrally with respect to the corresponding combustion chamber using the lever (06). | ||
| Fig 2 | |||
| 6 | Connect compressed-air hose to the assembly device (01) and open compressed air valve. | Fig 2 | |

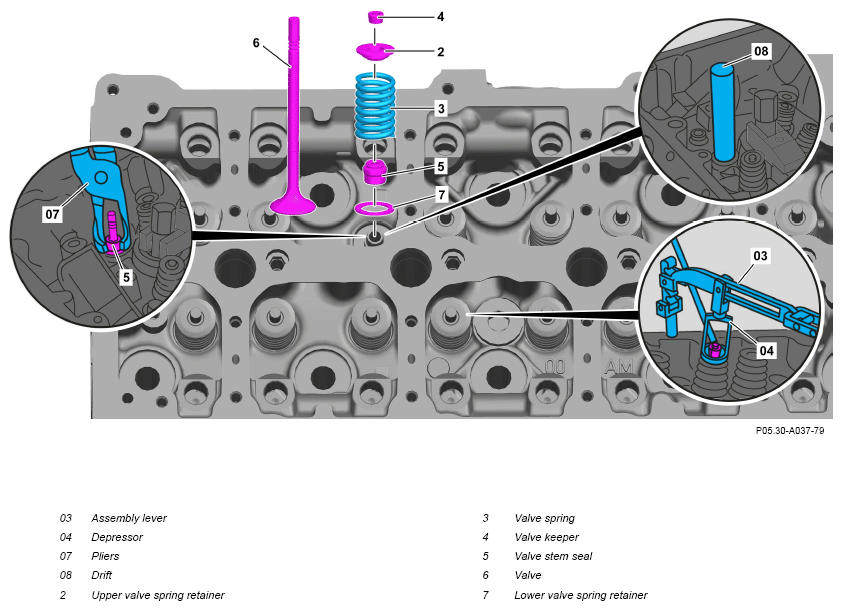

| 7 | Compress the valve springs (3), remove the valve keepers (4) and decompress the valve springs (3). | ||
| Fig 3 | |||
| 8 | Remove the upper valve spring retainers (2), valve springs (3) and lower valve spring retainers (7). | ||
| 9 | Remove the valve stem seals (5). | AR05.30-P-3510-01SVZ | |
| Fig 7 | |||
| 10 | Close the compressed air valve and remove the compressed-air hose from the assembly device (01). | ||
| Fig 2 | |||
| 11 | Remove cylinder head (1) from assembly device (01) and remove valves (6). | ||
| Fig 2 | |||
| Check | |||
| 12 | Check valve springs (3) for damage. | If there is a problem, ↓ Replace all valve springs (3). |
|
| 13 | Check top valve spring retainers (2) and bottom valve spring retainers (7) for score marks, cracks, and pitting. | If there is a problem, ↓ Replace the upper valve spring retainers (2) and lower valve spring retainers (7). |
|
| 14 | Check valve stems for formation of burrs and pitting. | If there is a problem, ↓ replace valves (6). |
|
| 15 | Check the condition of the valves (6), valve seats and valve seat guides. | ||
| General information on checking valves, valve seats and valve guides | If problems exist, ↓ Replace the valves (6) or cylinder heads (1). |
AH05.30-P-1000-02SZ | |
| Install | |||
| 16 | Insert the valves (6) in the cylinder head (1). | ||
| 17 | Attach the relevant cylinder head (1) to the assembly device (01). | Ensure that the counterholders (02) are correctly attached to the cylinder head (1). The cylinder head (1) and valves (6) may otherwise be damaged. |
Fig 2 |
| 18 | Align the air cushion on the assembly device (01) centrally with respect to the corresponding combustion chamber using the lever (06). | ||
| Fig 2 | |||
| 19 | Connect the compressed-air hose to the assembly device (01) and open the compressed air valve. | ||
| Fig 2 | |||
| 20 | Install new valve stem seals (5). | AR05.30-P-3510-01SVZ | |
| Fig 6 | |||
| Fig 5 | |||
| 21 | Position the lower valve spring retainers (7), valve springs (3) and upper valve spring retainers (2). | ||
| 22 | Attach assembly lever (03) with depressor (04) to the sliding piece (05). | Fig 1 | |
| Fig 4 | |||
| 23 | Compress the valve springs (3), position the valve keepers (4) and decompress the valve springs (3). | ||
| 24 | Remove the complete assembly device (01) from the cylinder head (1). | ||
| 25 | Install hydraulic valve play compensation elements. | AR05.00-P-2011SVZ | |
| 26 | Install cylinder head (1). | Cylinder head (1) on the right | AR01.30-P-5780SVZ |
| Cylinder head (1) on the left | AR01.30-P-5770SVZ |
