Remove/Install Timing Chain Tensioner - AR05.10-P-7800SVZ
Engine 279 in model 223
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove electric air pump (M33) with bracket (1). | AR14.30-P-7251SVZ | |
| 2 | Place piston for cylinder 1 at a 30° CKA after TDC (for ignition). | Do not crank engine in the direction opposite to the direction of engine rotation. The timing chain can skip otherwise and engine damage can occur. |

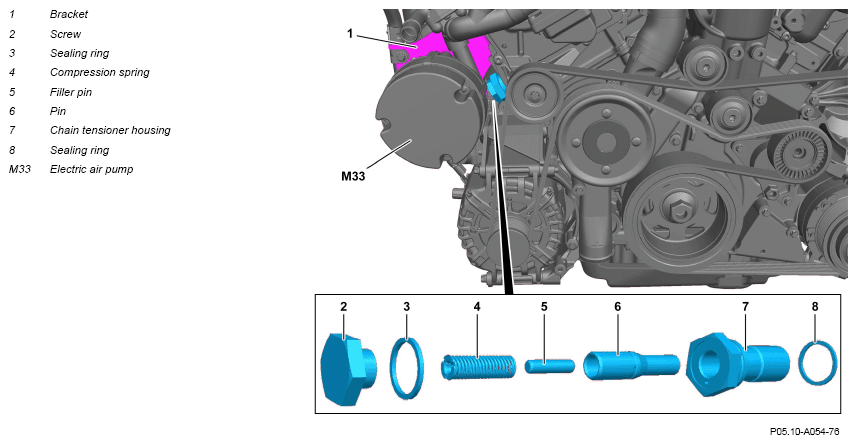

Fig 1 |
| 3 | Remove screw (2) and take off sealing ring (3). | *BA05.10-P-1002-01T | |
| 4 | Pull compression spring (4) and filler pin (5) out of the chain tensioner housing (7). | ||
| 5 | Remove chain tensioner housing (7) from the timing case cover. | *BA05.10-P-1001-01T | |
| 6 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run and check engine for leak tightness. |
TIMING CHAIN, CHAIN TENSIONER
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA05.10-P-1001-01T | Chain tensioner housing to cylinder head | Nm | 120 |
TIMING CHAIN, CHAIN TENSIONER
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA05.10-P-1002-01T | Screw/bolt at chain tensioner housing | Nm | 80 |
