Remove/Install Front Cover On Left Cylinder Head - AR01.30-P-5711SVZ
Engine 279 in model 223
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove left cylinder head cover. | AR01.20-P-5013SVZ | |
| 2 | Unscrew screws (1) and remove front cover (2). Notes on application of flange sealants to seal major assemblies |
AH00.00-P-0500-01MNE | |
| Notes on sealant path for front cover to cylinder head xxx | AH01.30-P-1000-02C | ||
| *BA01.30-P-1004-01Z | |||
| Sealant, Loctite 5970, 50 ml | *BR00.45-Z-1013-01A | ||

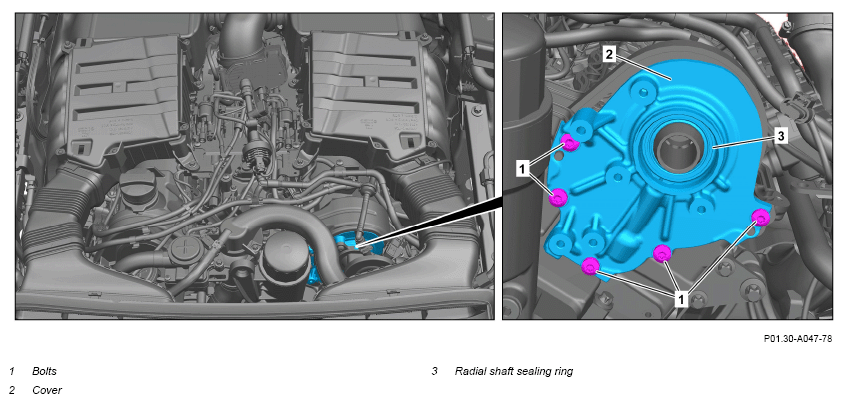

| Fig 1 | |||
| 3 | Remove radial shaft sealing ring (3) from mounting hole of front cover (2) using screwdriver. | ||
| Clean | |||
| 4 | Clean sealing surfaces on front cover (2), cylinder head, and cylinder head cover. | The sealing surfaces can be damaged otherwise. |
AR01.00-P-0050-01A |
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| 5 | Install in the reverse order. | ||
| Check | |||
| 6 |
Check and correct oil level of engine. | AP18.00-P-1812A |
CYLINDER HEAD
| Number | Designation | Engine 279 | ||
|---|---|---|---|---|
| BA01.30-P-1004-01Z | Screw/bolt, left front cover to cylinder head | M6 | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Sealant, Loctite 5970, 50 ml | A 003 989 98 20 10 |
| BR00.45-Z-1038-04A | Loctite 7200 | A 010 989 90 71 |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
