Remove/Install Centrifuge - AR01.20-P-2100SVZ
Engine 279 in model 223
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove/install | |||
| 1 | Drain coolant at radiator. | AR20.00-P-1142SVZ | |
| 2 | Remove engine cover. | AR01.10-P-2405SVZ | |
| 3 | Remove left air filter housing. | AR09.10-P-1151SVZ | |

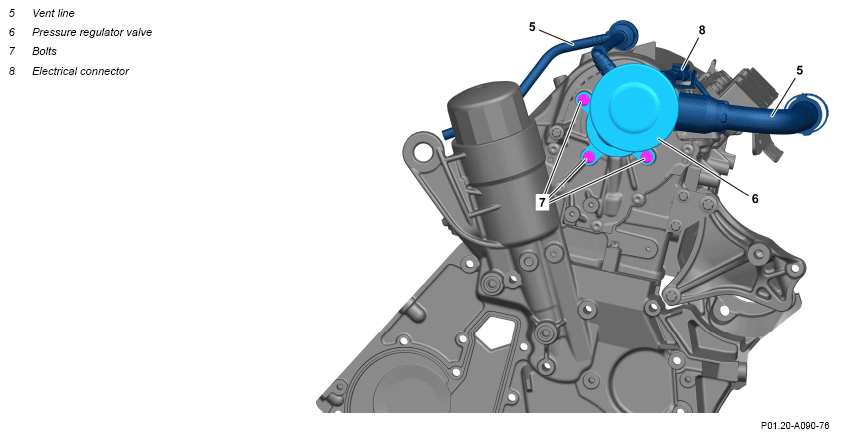

| 4 | Remove bleed lines (5) from pressure regulating valve (6). | ||
| 5 | Disconnect electrical connector (8). | ||
| 6 | Unscrew screws (7) and remove pressure regulating valve (6). | ||
| 7 | Remove front cap on left cylinder head. | AR01.30-P-5711SVZ | |

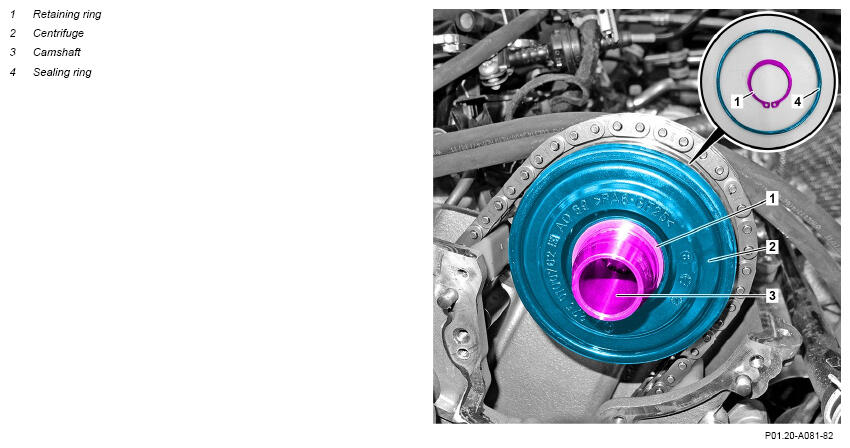

| 8 | Remove retaining ring (1). | ||
| 9 | Remove centrifuge (2) from camshaft (3). | ||
| 10 | Install in the reverse order. | ||
| Check | |||
| 11 |
Check, correct engine oil level. | AP18.00-P-1848U | |
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform engine test run and check engine in terms of leak tightness while engine is running. |
