Remove/Install Poly-V Belt - AR13.22-P-1202SVZ
Engine 279 in model 223
Shown on removed engine
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove/install | |||
| 1 | Remove engine cover. | AR01.10-P-2405SVZ | |
| 2 | Remove left and right air intake pipe to air filters. | ||

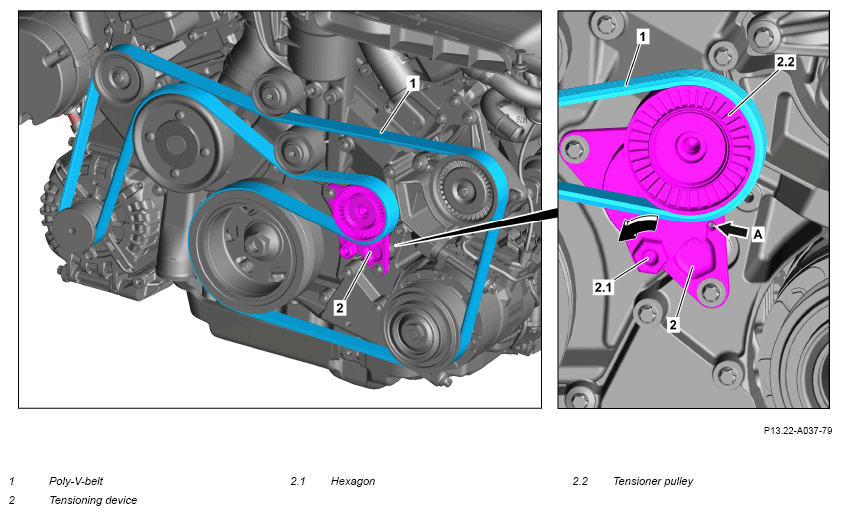

| 3 | Release poly-V-belt (1) and remove. | ||
| Routing diagram | Slide a pin with a diameter of 5 mm in bore (arrow A). Turn hexagon (2.1) at tensioning device (2) in direction of arrow, pull pin out of bore (arrow A) and slow relieve tensioner pulley (2.2) of tension. |
GF13.20-P-0001-01SVZ | |
| Check | |||
| 4 | Check poly-V-belt (1) for damage and wear. | ||
| If damage or wear is present, ↓ Replace poly-V-belt (1). |
AP13.22-P-1351-01A | ||
| 5 | Check belt pulleys, guide pulleys and tensioning device (2) for soiling, damage and wear. | If soiling is present: ↓ Clean corresponding component part. If damage or wear is present, ↓ Replace corresponding component. Remove/install poly-V-belt guide pulley |
AR13.20-P-0015SVZ |
| Remove/install poly-V-belt tensioning device | AR13.25-P-3220SVZ | ||
| Remove/install alternator belt pulley | AR15.40-P-5710SVZ | ||
| Remove/install coolant pump | AR20.10-P-1271SVZ | ||
| Remove/install belt pulley | AR03.30-P-1700SVZ | ||
| Refrigerant compressor, remove/install | AR83.55-P-5310SVZ | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and make sure that the poly-V belt (1) is positioned correctly. |
