Remove/Install Poly-V-Belt Guide Pulley - AR13.20-P-0015SVZ
Engine 279 in model 223
MODIFICATION NOTES
| 02.10.2023 | Screw, guide pulley to | BA13.25-P-1002-01ZA |

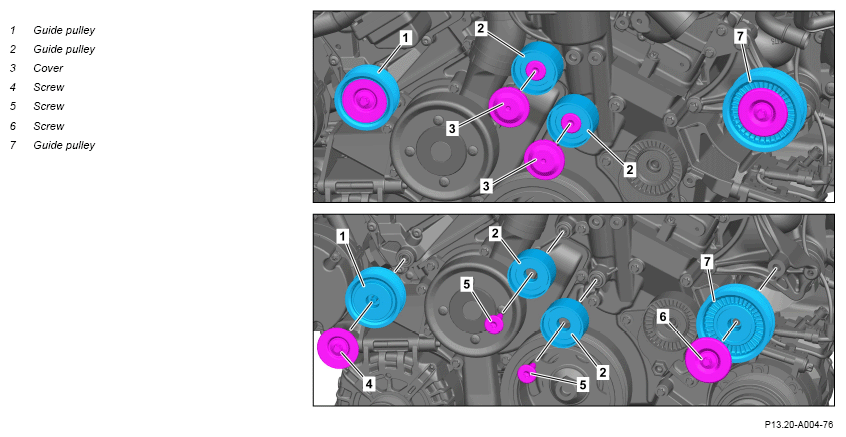

Shown with engine removed
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Release tension from poly-V belt and remove. | AR13.22-P-1202SVZ | |
| 2 | Unclip corresponding cover (3) and remove. | If corresponding guide pulley (2) will be removed. | |
| 3 | Unscrew corresponding screw (5) and remove guide pulley (2). | If corresponding guide pulley (2) will be removed. |
*BA13.25-P-1003-01ZA |
| 4 | Unscrew screw (4) and remove guide pulley (1). | If guide pulley (1) is removed. |
*BA13.25-P-1002-01ZA |
| 5 | Unscrew screw (6) and remove guide pulley (7). | If guide pulley (7) will be removed. |
*BA13.25-P-1004-01ZA |
| Check | |||
| 6 | Check corresponding guide pulley (1, 2, 7) for damage and wear. | If damage or wear is present: ↓ Replace corresponding guide pulley (1, 2, 7). |
|
| 7 | Install in the reverse order. |
BELT TENSIONING DEVICE
| Number | Designation | Engine 279 | ||
|---|---|---|---|---|
| BA13.25-P-1002-01ZA | Screw, guide pulley to | Right front cap | Nm | 32 |
| Carrier | Nm | 35 | ||
BELT TENSIONING DEVICE
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA13.25-P-1003-01ZA | Screw/bolt, guide pulley to timing case cover | Nm | 30 |
BELT TENSIONING DEVICE
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA13.25-P-1004-01ZA | Screw, guide pulley to holder | Nm | 35 |
