Remove/Install Coolant Pump - AR20.10-P-1271SVZ

Engine 279 in model 223

MODIFICATION NOTES

02.10.2023

Screw, guide pulley to

BA13.25-P-1002-01ZA

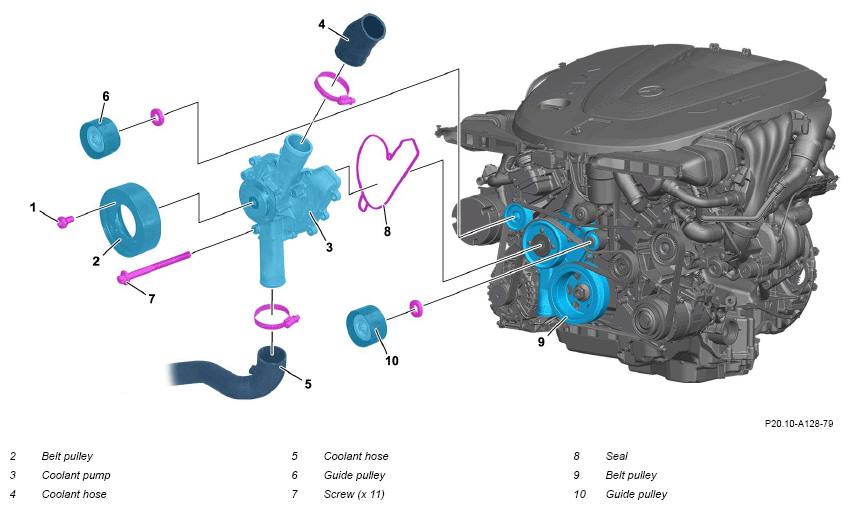

Fig 1: Coolant Pump Components Location - Model 223 With Engine 279

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove belt pulley (2).		AR20.10-P-1275SVZ
2	Remove belt pulley (9).		AR03.30-P-1700SVZ
3	Remove coolant hoses (4, 5) from coolant pump (3).	Check status of coolant hoses (4, 5) and hose clamps. If damage is present: ↓ Replace damaged assembly part.
4	Remove guide pulley (6).	Screw, guide pulley to	*BA13.25-P-1002-01ZA
5	Remove guide pulley (10).	Screw/bolt, guide pulley to timing case cover	*BA13.25-P-1003-01ZA
6	Unscrew screws (7) and remove coolant pump
	Coolant pump tightening procedure	Install new seal (8). Pay attention to length of bolts and tightening sequence.	GF20.10-P-1271-01SVZ
7	Clean sealing surfaces.	Assembly cleaner	*BR00.45-Z-1028-04A
8	Install in the reverse order.

BELT TENSIONING DEVICE

Number	Designation			Engine 279
BA13.25-P-1002-01ZA	Screw, guide pulley to	Right front cap	Nm	32
		Carrier	Nm	35

BELT TENSIONING DEVICE

Number	Designation		Engine 279
BA13.25-P-1003-01ZA	Screw/bolt, guide pulley to timing case cover	Nm	30

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
