Routing Diagram Of Poly-V Belt - GF13.20-P-0001-01SVZ

Engine 279 in model 223

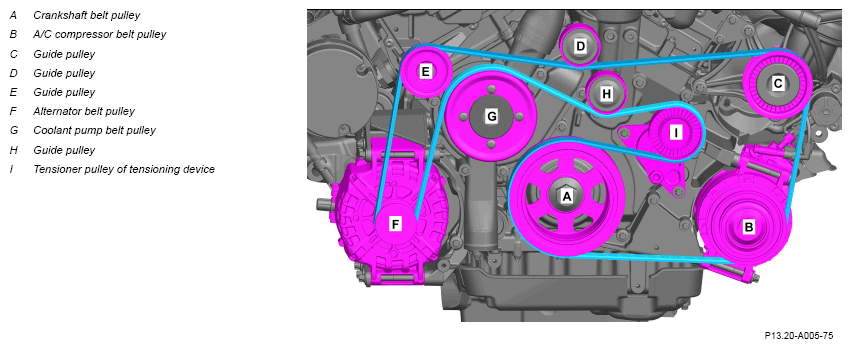

Fig 1: Poly-V Belt Routing - Engine 279 In Model 223

G16233034

Courtesy of MERCEDES-BENZ USA
