Remove/Install Crank Belt Pulley - AR03.30-P-1700SVZ
Engine 279 in model 223
Shown with engine removed
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove fan unit. | AR20.40-P-5050SVZ | |
| 2 | Remove poly-V-belt. | AR13.22-P-1202SVZ | |
| 3 | Attach protective plate for cooler. | ||
| WF58.50-P-0110-01A | |||

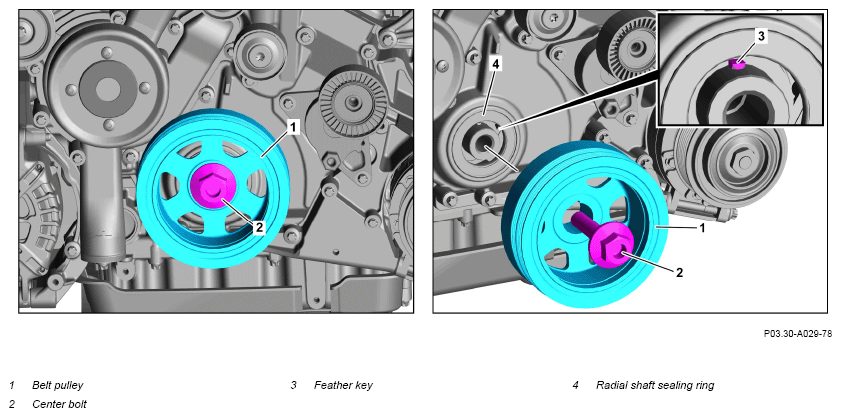

| 4 | Remove center screw (2). | *BA03.30-P-1001-01U | |
| Fig 3 | |||
| Fig 2 | |||
| 5 | Remove belt pulley (1) from crankshaft. | ||
| Check | |||
| 6 | Check belt pulley (1) for damage and wear. | If damage or wear is present, ↓ Replace belt pulley (1). |
|
| 7 | Check radial shaft sealing ring (4) for engine oil loss, damage and wear. | If engine oil loss, damage and/or wear are present: ↓ Replace the radial shaft sealing ring (4). |
AR03.20-P-3004SVZ |
| 8 | Install in the reverse order. |
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 279 | ||
|---|---|---|---|---|
| BA03.30-P-1001-01U | Center bolt, belt pulley to crankshaft | Stage 1 | Nm | 275 |
| Stage 2 | ∠° | 90 | ||
