Remove/Install Alternator Belt Pulley - AR15.40-P-5710SVZ
Engine 279 in model 223
Shown with engine removed
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove fan unit. | AR20.40-P-5050SVZ | |
| 2 | Remove poly-V-belt. | AR13.22-P-1202SVZ | |
| 3 | Attach protective plate for cooler. | ||
| WF58.50-P-0110-01A | |||
| 4 | Remove cover (2). | ||

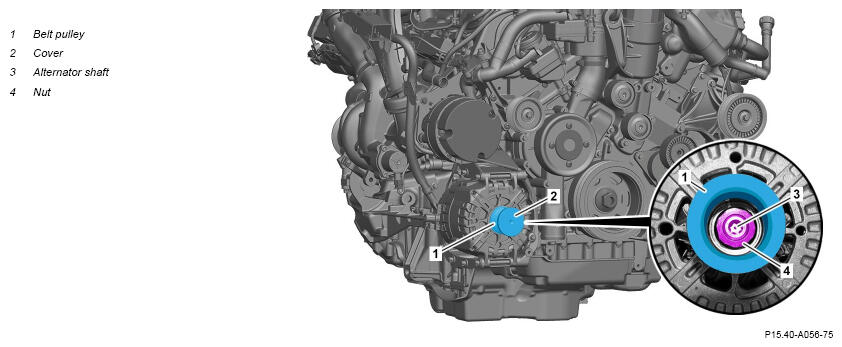

| 5 | Counterhold alternator shaft (3) using a triple-square socket or Torx socket and a socket wrench. | Fig 1 | |
| 6 | Remove nut (4) from alternator shaft (3). | *BA15.40-P-1004-01R | |
| 7 | Remove belt pulley (1) from alternator shaft (3). | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run and check the engine for proper function. |
ALTERNATOR
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA15.40-P-1004-01R | Collar nut, connecting belt pulley to alternator | Nm | 75 |
