Remove/Install Engine Cover - AR01.10-P-2405SVZ

Engine 279 in model 223

Courtesy of MERCEDES-BENZ USA

	Remove

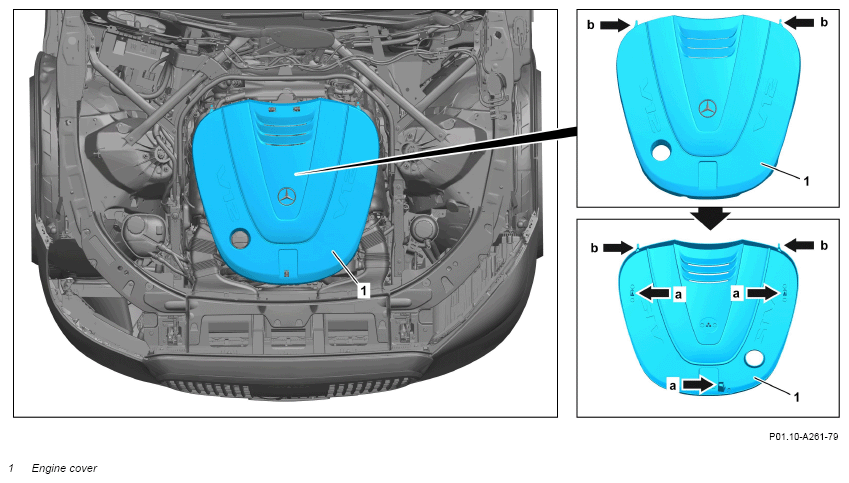

1	Raise engine cover (1) until the retaining lugs (arrows a) release.
2	Move engine cover (1) out of the retaining lugs (arrows b) in the direction of travel and remove engine cover (1).
	Install
3	Position engine cover (1) in the rear area and engage the retaining lugs (arrows b).
4	Press on engine cover (1) in the front area until the retaining lugs (arrows a) are locked in.	Make sure that the retaining lugs (arrows a) are positioned over the cutouts. If this is not the case, the engine cover (1) may be damaged.
