Remove/Install Engine With Transmission - AR01.10-P-2401MFJ

Engine 260 in model 118, 177, 247 with transmission 724.1

MODIFICATION NOTES

08.10.2021 Commissioning of the transmission, added. Operation step 53
11.10.2021 Fill transmission with oil, added. Operation step 55
11.10.2021 Check transmission oil level and correct if necessary, added. Operation step 56

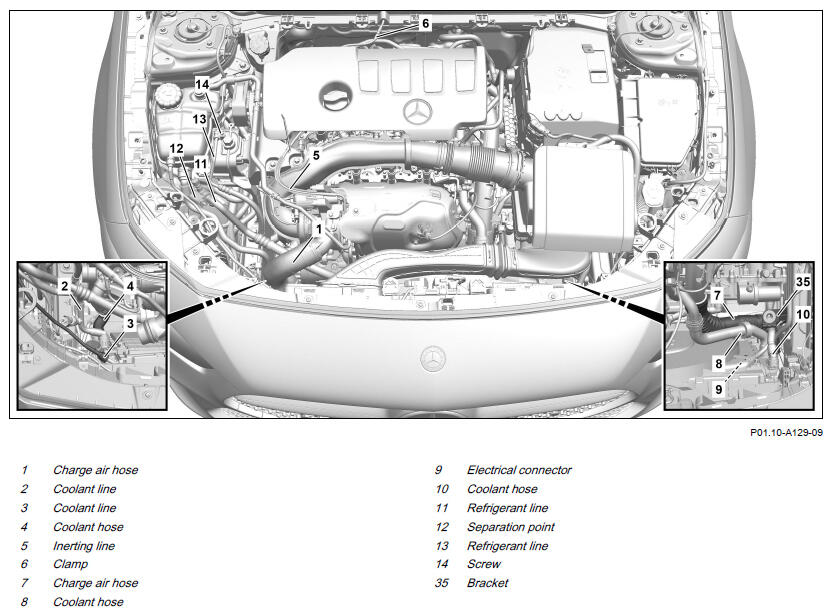

G16054079Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine 260 without code M016 (performance-enhanced engine)

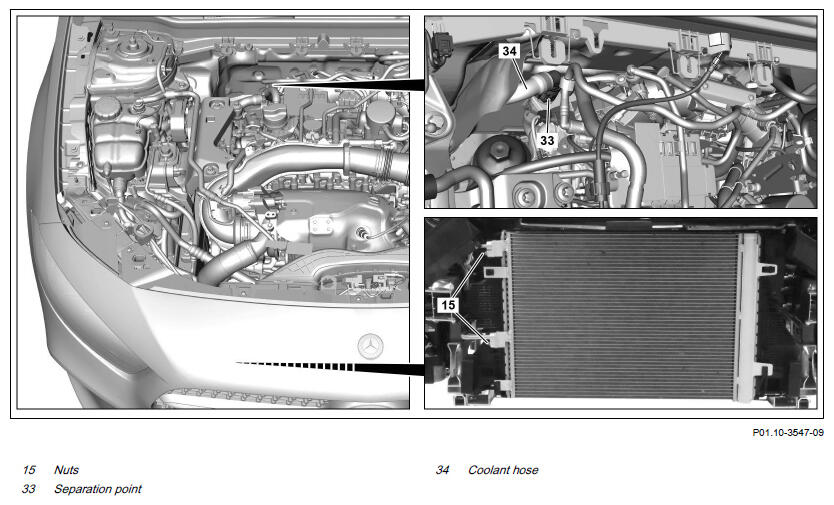

G16054080Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine 260 without code M016 (performance-enhanced engine)

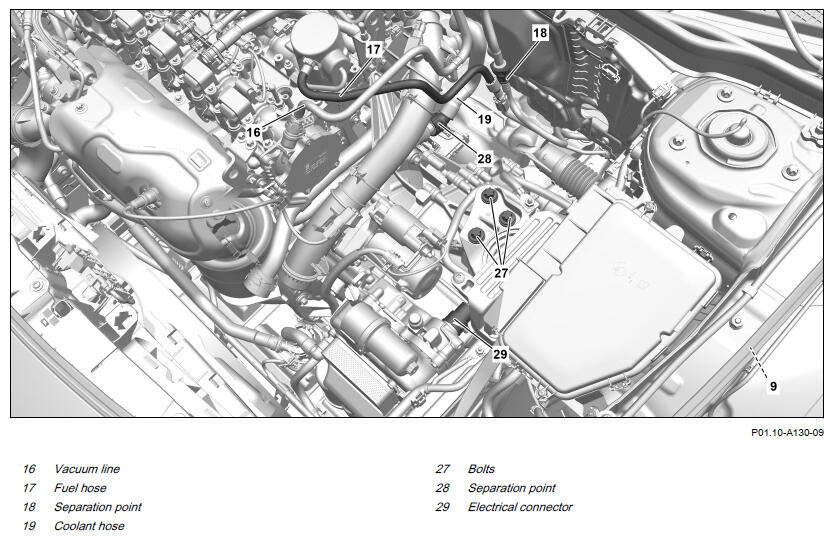

G16054081Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine 260 without code M016 (performance-enhanced engine)

Shown on model 177 with engine 260 without code M016 (performance-enhanced engine)

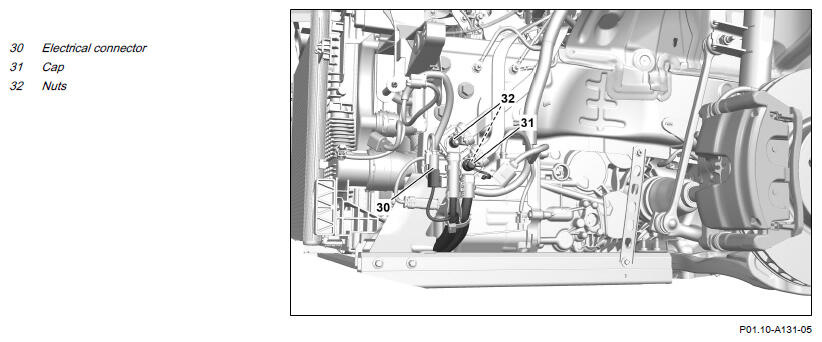

G16054082Courtesy of MERCEDES-BENZ USA

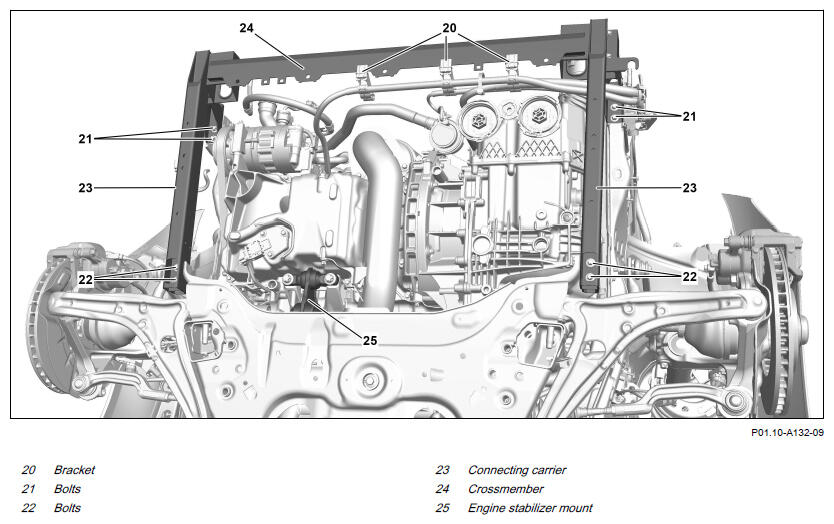

G16054083Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine 260 without code M016 (performance-enhanced engine)

Shown on model 177 with engine 260 with code M016 (performance-enhanced engine)

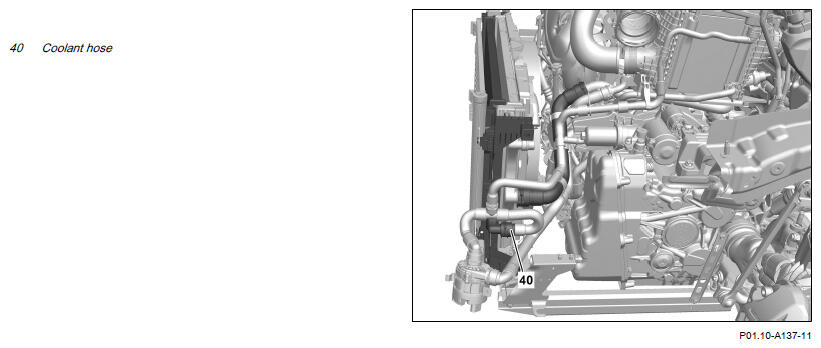

G16054084Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine 260 with code M016 (performance-enhanced engine)

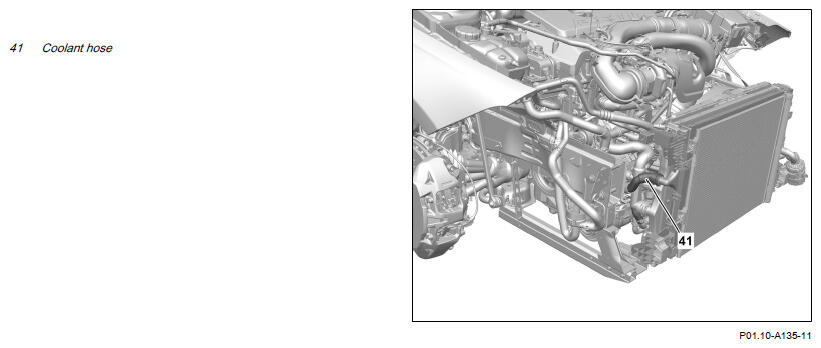

G16054085Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine 260 with code M016 (performance-enhanced engine)

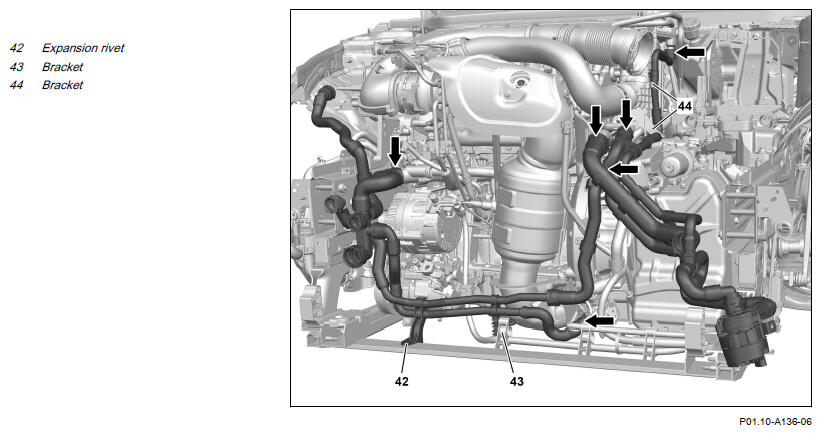

G16054086Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine 260 without code M016 (performance-enhanced engine)

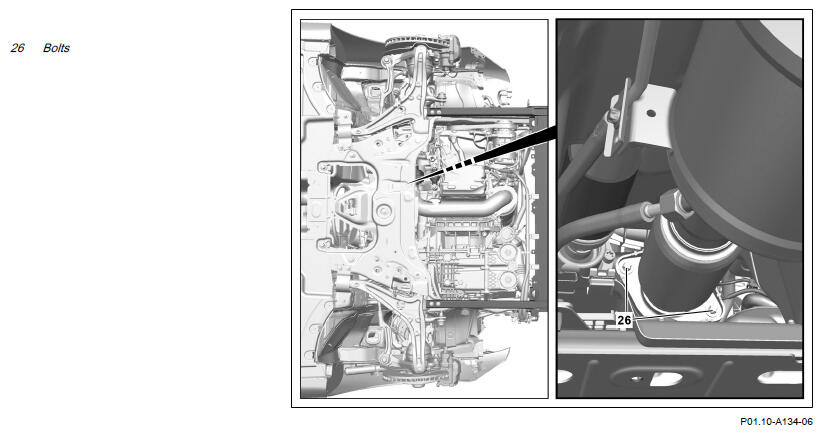

G16054087Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0007-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. AS47.00-Z-0001-01A
DANGER Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. AS07.16-Z-0001-01A
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure.
Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. AS00.40-Z-0001-01A
Notice  Information on influencing load ratios when removing major assemblies   AH00.60-P-0001-01A
Notice  Procedure for a damaged or leaky air conditioning system   AH83.30-P-0004-01KOA
Notice  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-P-0005-01KOA
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice  Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on coolant   AH20.00-P-2080-01KOA
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Use of engine no. when installing reconditioned engines and factory-new replacement engines or crankcases   AH01.10-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Put transmission into neutral position.
2 Secure vehicle against rolling away and release parking brake.
3 Secure vehicle on the vehicle lift and lift.   AR00.60-P-1006A
4 Remove front module. Engine 260 in model 118, 177, 247 with transmission 724.1
    Engine 260 in model 118, 177, 247.0 with transmission 724.1 AR88.30-P-1064MFA
5 Remove air filter housing.   AR09.10-P-1150MFC
6 Remove battery carrier.   AR54.10-P-0028MFA
7 Remove upper engine cover.
REFER TO MAINTENANCE   INSTALLATION IMPORTANT Do not install upper engine cover until after the leak test. AP01.10-P-2405-01C
8 Remove clamps (6), remove inerting line (5) from the separating point, and seal openings with suitable stop plugs. Engine 260 in model 118, 177, 247 with transmission 724.1 with code 2U8 (Alternative refrigerant) AR86.10-P-0119MFC
    SPECIAL TOOL Record plug Fig 8
9 Discharge air conditioning system.   AR83.30-P-1760MFA
10 Drain off coolant.   AR20.00-P-1142MFC
11 Drain off low-temperature circuit coolant. Engine 260 in model 118, 177, 247 with transmission 724.1 with code M016 (Uprated engine) AR09.41-P-6834MFC
12 Remove the coolant expansion reservoir.   AR20.30-P-4949MFD
13 Remove the charge air hose (1) and seal the openings with protective covers. Engine 260 in model 118, 177, 247 with transmission 724.1 except code M016 (Uprated engine) AR09.41-P-1311-01AL
    SPECIAL TOOL Set of protective covers Fig 2
14 Remove coolant lines (2, 3) and seal openings with suitable stop plugs and protective covers.   AR20.20-P-7441-01RQ
    SPECIAL TOOL Record plug Fig 8
    SPECIAL TOOL Set of protective covers Fig 5
15 Remove coolant hoses (4, 8, 10) from the cooler and seal openings with protective covers.   AR20.20-P-7441-01RQ
    SPECIAL TOOL Set of protective covers Fig 5
16 Remove coolant hoses (40, 41) from the low-temperature circuit cooler and seal openings with protective covers. Engine 260 in model 118, 177, 247 with transmission 724.1 with code M016 (Uprated engine) AR20.20-P-7441-01RQ
    SPECIAL TOOL Set of protective covers Fig 5
17 Release and disconnect electrical connector (9) of fan unit.
18 Remove the electric line from the bracket (35)
19 Remove charge air hose (7) and seal openings with protective covers. Engine 260 in model 118, 177, 247 with transmission 724.1 except code M016 (Uprated engine) AR09.41-P-1311-01AL
    SPECIAL TOOL Set of protective covers Fig 2
20 Separate refrigerant line (11) at separating point (12) and seal openings with suitable stop plugs.
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.1) INSTALLATION IMPORTANT Replace sealing ring and moisten with compressor oil. BB00.40-P-0362-01A
    TORQUE SPECIFICATION Nut, refrigerant line connecting point *BA83.30-P-1002-01T
    SPECIAL TOOL Record plug Fig 8
21 Remove screw (14) and remove refrigerant line (13) from the engine mount. Engine 260 in model 118, 177, 247 with transmission 724.1 except code M016 (Uprated engine)
TORQUE SPECIFICATION Screw, refrigerant line to engine mount/body
*BA83.30-P-1004-01T
22 Remove the nuts (15) on the condenser, remove the refrigerant lines and seal the openings with suitable stop plugs.
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.1) INSTALLATION IMPORTANT Replace sealing rings and moisten with compressor oil. BB00.40-P-0362-01A
    TORQUE SPECIFICATION Nut, refrigerant line to condenser *BA83.30-P-1007-01T
    SPECIAL TOOL Record plug Fig 8
23 Remove radiator package upward out of the elastomer bearings on the crossmember (24), place down on a suitable base, and capture escaping coolant with rags.
24 Remove coolant hose (34) from the separating point (33) and seal openings with protective covers.   AR20.20-P-7441-01RQ
    SPECIAL TOOL Set of protective covers Fig 6
25 Remove vacuum line (16) from vacuum pump and seal openings with suitable stop plugs. SPECIAL TOOL Set of plugs Fig 7
26 Unclip vacuum line (16) from the charge air cooler. Engine 260 in model 118, 177, 247 with transmission 724.1 with code M016 (Uprated engine)
27 Release and disconnect purge line at separating point (18) and seal with suitable stop plugs. SPECIAL TOOL Record plug Fig 8
28 Remove noise insulation of the high-pressure pump.
29 Remove fuel hose (17) from the high-pressure pump and seal openings with suitable stop plugs. SPECIAL TOOL Pliers for click clamps Fig 3
    SPECIAL TOOL Record plug Fig 8
30 Unclip fuel hose (17) from the charge air cooler. Engine 260 in model 118, 177, 247 with transmission 724.1 with code M016 (Uprated engine)
31 Remove coolant hose (19) at separating point (28) and seal openings with protective covers.   AR20.20-P-7441-01RQ
    SPECIAL TOOL Set of protective covers Fig 6
32 Unlock the electrical connector (29) on the automatic transmission, disconnect it and remove the electrical wiring harness on the automatic transmission.
33 Remove bracket (35). TORQUE SPECIFICATION Screw/bolt, air filter housing bracket to body *BA09.10-P-1001-01Q
34 Release and disconnect electrical connector (30).
35 Remove cover cap (31).
36 Remove nuts (32), remove electrical wiring harness from the stud bolts, and place to one side. TORQUE SPECIFICATION Nut, starter wiring harness to current limiter *BA54.10-P-1006-01D
37 Remove brackets (20) from the crossmember (24).
38 Remove the expansion rivet (42). Engine 260 in model 118, 177, 247 with transmission 724.1 with code M016 (Uprated engine)
SPECIAL TOOL Clip remover
Fig 9
39 Remove bolts (21). TORQUE SPECIFICATION Bolt, radiator support to mounting support *BA62.30-P-1004-02O
40 Remove screws (22) and remove connecting carriers (23) together with crossmember (24). TORQUE SPECIFICATION Bolt, connecting carrier to front axle carrier/radiator support *BA62.30-P-1003-02O
41 Remove lower engine stabilizer mount (25).   AR22.10-P-1155MFC
42 Remove propeller shaft. Engine 260 in model 118, 177, 247 with transmission 724.1 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0050MFA
43 Remove screws (26) from the separating point of the exhaust system. TORQUE SPECIFICATION Bolt, front exhaust system to center exhaust system *BA49.10-P-1006-02Q
44 Remove front axle shafts.   AR33.30-P-0620MFA
45 Remove heat shield of front axle drive shaft.   AR49.00-P-1000-05MFC
    TORQUE SPECIFICATION Bolt, heat shield to engine carrier/crankcase/oil pan/cylinder head *BA22.10-P-1002-02E
46 Remove coolant hose package on the engine side from the separating points (arrows) and seal openings with protective covers. Engine 260 in model 118, 177, 247 with transmission 724.1 with code M016 (Uprated engine) AR20.20-P-7441-01RQ
    SPECIAL TOOL Set of protective covers Fig 5
    SPECIAL TOOL Set of protective covers Fig 2
    SPECIAL TOOL Hose clamp pliers Fig 4
47 Unclip coolant hose package from the brackets (43, 44) and remove. Engine 260 in model 118, 177, 247 with transmission 724.1 with code M016 (Uprated engine)
48 Install engine support fixture to remove engine transmission unit.   AR01.10-P-0106MFA
49 Remove right engine mount.   AR22.10-P-1102MFD
50 Remove screws (27) from the transmission mount. TORQUE SPECIFICATION Screw, transmission mount to body/transmission/mounting support *BA22.10-P-1010-03P
51 Move engine transmission unit with lifting platform out of vehicle in forward direction.
REFER TO SPECIAL TOOLS 000 588 25 62 00 Lift table   WS01.00-P-0264A
    NOTES No lines and hoses may be damaged when removing/inserting engine with transmission.
Otherwise leaks and engine damage can occur.
IMPORTANT Aid of helper required.
SPECIAL TOOL Support fixture
Fig 1
52 Install in the reverse order.
53 Perform commissioning of transmission. When replacing or repairing the transmission.
DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06MFA
INSPECT Check
54 Check engine oil level and correct if necessary.
REFER TO MAINTENANCE   NOTES Never pour in engine oil to above the maximum value.
Engine damage will occur otherwise.
AP18.00-P-1812MFA
55 Fill transmission with oil. When replacing or repairing the transmission.
IMPORTANT New transmission is delivered empty.
AR27.00-P-0272MFA
56 Check transmission oil level and correct if necessary.   AR27.00-P-0104MFA
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
57 Perform engine test run; while doing so, check engine and transmission for proper operation and leak tightness.
58   Check headlamp adjustment and correct.
REFER TO MAINTENANCE   Engine 260 in model 118 with transmission 724.1 AP82.10-P-8260Y
REFER TO MAINTENANCE   Engine 260 in model 177 with transmission 724.1 AP82.10-P-8260N
REFER TO MAINTENANCE   Engine 260 in model 247 with transmission 724.1 AP82.10-P-8260AO
59 Install upper engine cover.
REFER TO MAINTENANCE     AP01.10-P-2405-01C
60 Install lower engine compartment lining. Engine 260 in model 118, 177, 247 with transmission 724.1 except code M016 (Uprated engine) AR61.20-P-1105MFA
    Engine 260 in model 118, 177, 247 with transmission 724.1 with code M016 (Uprated engine) AR61.20-P-1105MFR
AIR FILTER

Number Designation Engine 260
BA09.10-P-1001-01Q Screw/bolt, air filter housing bracket to body M8 Nm 20
ENGINE SUPPORT (ENGINE SIDE)

Number Designation Engine 260
BA22.10-P-1002-02E Bolt, heat shield to engine carrier/crankcase/oil pan/cylinder head M6 Nm 8
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 118, 177, 247
BA22.10-P-1010-03P Screw, transmission mount to body/transmission/mounting support Nm 106
EXHAUST SYSTEM

Number Designation Model 118 with engine 260 Model 177 with engine 260
BA49.10-P-1006-02Q Bolt, front exhaust system to center exhaust system M8 Nm 25 25
EXHAUST SYSTEM

Number Designation Model 247 with engine 260
BA49.10-P-1006-02Q Bolt, front exhaust system to center exhaust system M8 Nm 25
BATTERY

Number Designation Model 118 Model 177
BA54.10-P-1006-01D Nut, starter wiring harness to current limiter Nm 16 16
BATTERY

Number Designation Model 247
BA54.10-P-1006-01D Nut, starter wiring harness to current limiter Nm 16
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 118 Model 177
BA62.30-P-1003-02O Bolt, connecting carrier to front axle carrier/radiator support M8 Nm 16 16
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 247
BA62.30-P-1003-02O Bolt, connecting carrier to front axle carrier/radiator support M8 Nm 16
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 118 Model 177
BA62.30-P-1004-02O Bolt, radiator support to mounting support M8 Nm 16 16
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 247
BA62.30-P-1004-02O Bolt, radiator support to mounting support M8 Nm 16
AIR CONDITIONING

Number Designation Model 118 Model 177
BA83.30-P-1002-01T Nut, refrigerant line connecting point M6 Nm 12 12
M8 Nm 20 20
AIR CONDITIONING

Number Designation Model 247
BA83.30-P-1002-01T Nut, refrigerant line connecting point M6 Nm 12
M8 Nm 20
AIR CONDITIONING

Number Designation Model 118 Model 177
BA83.30-P-1004-01T Screw, refrigerant line to engine mount/body M6 Nm 8 8
AIR CONDITIONING

Number Designation Model 247
BA83.30-P-1004-01T Screw, refrigerant line to engine mount/body M6 Nm 8
AIR CONDITIONING

Number Designation Model 118 Model 177
BA83.30-P-1007-01T Nut, refrigerant line to condenser M6 Nm 12 12
AIR CONDITIONING

Number Designation Model 247
BA83.30-P-1007-01T Nut, refrigerant line to condenser M6 Nm 12
Fig 1: Identifying Support Fixture (177 589 02 62 00)
G14688132Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Set Of Protective Covers (001 589 12 91 00)
G14790201Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Pliers For Click Clamps (177 589 00 37 00)
G13658546Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Hose Clamp Pliers (454 589 00 37 00)
G12939525Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Set Of Protective Covers (001 589 06 91 00)
G14785718Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Set Of Protective Covers (001 589 11 91 00)
G14785720Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Set Of Plugs (199 589 00 98 00)
G10781222Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Record Plug (129 589 00 91 00)
G09975019Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Clip Remover (452 589 01 63 00)
G09980802Courtesy of MERCEDES-BENZ USA
