Remove/Install Heat Shield Of Drive Shaft On Front Axle - AR49.00-P-1000-05MFC
Engine 260 in model 118, 177, 247
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A |
ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Engine 260 | ||
|---|---|---|---|---|
| BA22.10-P-1002-02E | Bolt, heat shield to engine carrier/crankcase/oil pan/cylinder head | M6 | Nm | 8 |

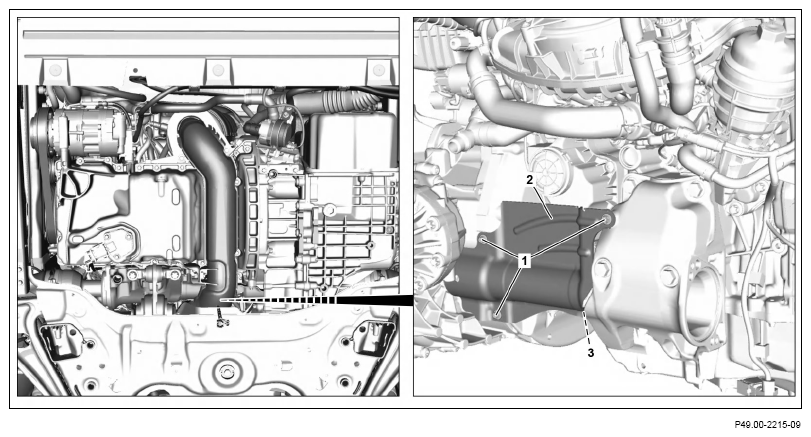

- Remove screws (1) and remove heat shield (2) with retaining clamp (3)
.
- Install in the reverse order.
