Remove/Install Right Engine Mount - AR22.10-P-1102MFD

Engine 260 in model 118, 177, 247

Engine 282 in model 118, 177, 247

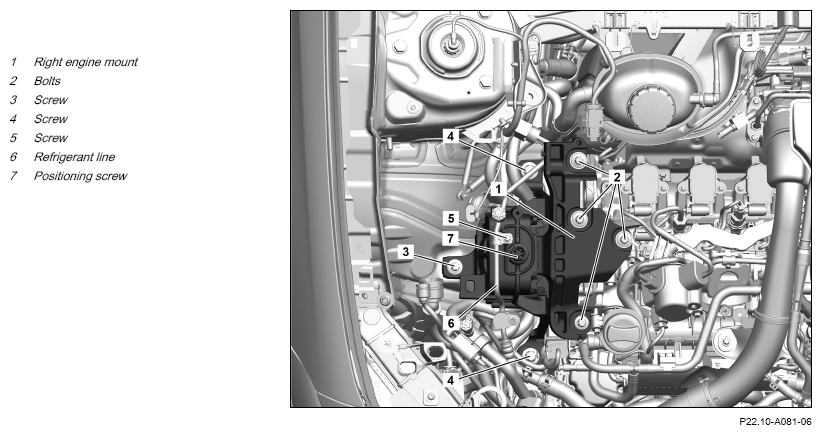

Fig 1: Right Engine Mount Components Location - Engine 260 In Model 247 (Shown On Engine 282 In Model 177 Without Code ME08)

Courtesy of MERCEDES-BENZ USA

Shown on engine 282 in model 177 without code ME08 (hybrid drive 75-84 KW VARIANT (INCLUDING PLUG-IN))

Shown on engine 282 in model 177 with code ME08 (hybrid drive 75-84 KW VARIANT (INCLUDING PLUG-IN))

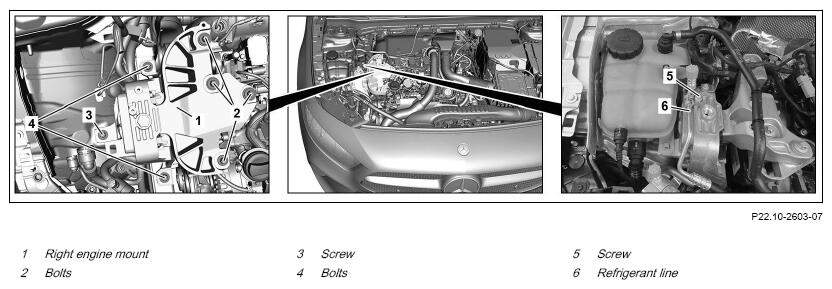

Fig 2: Right Engine Mount Components Location - Engine 260 In Model 247 (Shown On Engine 282 In Model 177 With Code ME08)

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
		Engine 282 in model 177, 247 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUG-IN))
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	General information on vehicles with high voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Engine 282 in model 177, 247 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUG-IN))	AH00.00-Z-0300-01A
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove/install
1	Attach engine support fixture to the engine transmission unit and lift engine until the right engine mount (1) is relieved.	3 When lifting, do not subject right engine mount (1) to tension. Otherwise, damage to the right engine mount (1) will occur.	AR01.10-P-0107MFA
2	Remove engine stabilizer mount at the top.	Engine 260 in model 118, 177, 247	AR22.10-P-1145MFC
		Engine 282 in model 118, 177, 247	AR22.10-P-1145MFH
3	Remove inerting system line from the right engine mount (1).	Engine 260 in model 118, 177, 247 with code 2U8 (Alternative refrigerant)	AR86.10-P-0119MFC
4	Remove screw (5) and place refrigerant line (6) to one side.	Engine 282 in model 118, 177, 247
		Screw, refrigerant line to engine mount/body	*BA83.30-P-1004-01T
5	Remove bolts (3, 4).	Screw, engine mount to body	*BA22.10-P-1001-03P
6	Remove screws (2).	Screw, engine mount to cylinder head	*BA22.10-P-1002-03P
7	Remove right engine mount (1).
	Check
8	Check right engine mount (1) for damage.	If damage is identified: ↓ replace right engine mount (1).
9	Install in the reverse order.
10	Remove positioning screw (7).	If a new right engine mount (1) was installed.
