Drain/Fill Low-Temperature Circuit Coolant - AR09.41-P-6834MFC
Engine 260 in model 118, 177, 247 with code M016 (Uprated engine)
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove | |||

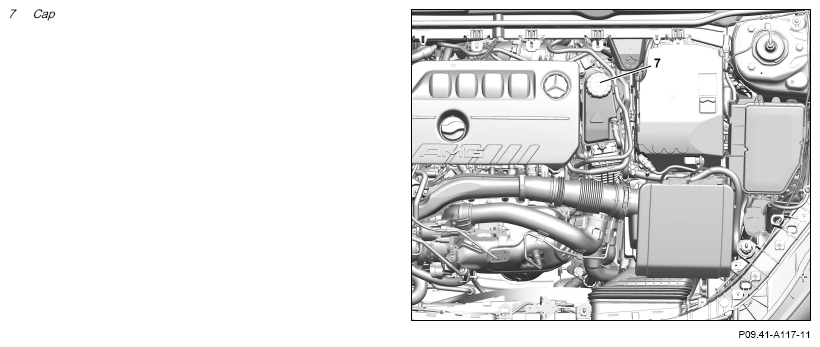

| 1 | Remove the cap (7) from the low-temperature circuit coolant expansion reservoir. | ||
| 2 | Remove bottom engine compartment lining. | AR61.20-P-1105MFR | |

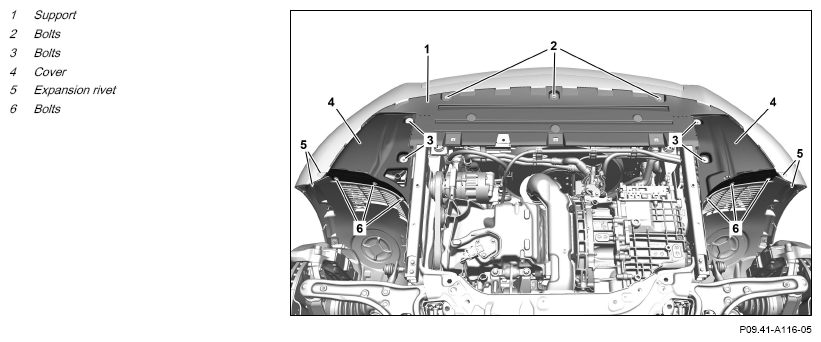

| 3 | Remove screws (3, 6) and remove covers (4). | ||
| 4 | Remove expansion rivets (5). | Fig 4 | |
| 5 | Remove screws (2) and remove support (1). | ||
| Drain off | |||

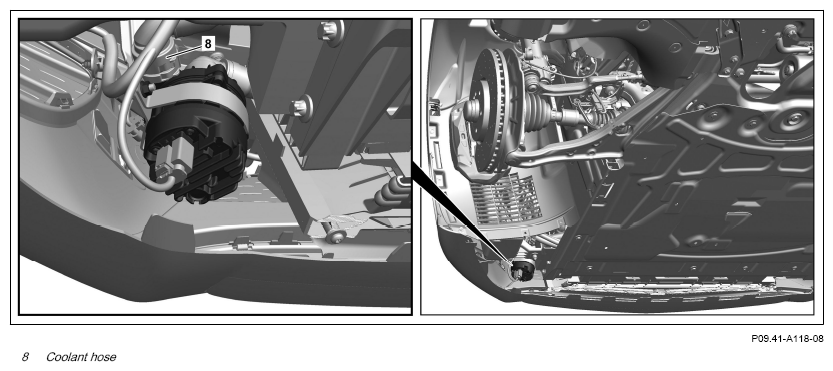

| 6 | Remove the coolant hose (8) from the low-temperature circuit circulation pump and drain off the coolant into a suitable container. | AR20.20-P-7441-01RQ | |
| Pour in | |||
| 7 | Attach the coolant hose (8) to the low-temperature circuit circulation pump. | AR20.20-P-7441-01RQ | |
| 8 | Pour in the coolant, bleed the low-temperature circuit, check the coolant and antifreeze level and top up if necessary. | AR20.00-P-1142-04A | |
| *BF20.00-P-1001-02AB | |||
| Fig 5 | |||
| Fig 3 | |||
| Fig 2 | |||
| Fig 1 | |||
| Check | |||
| 9 | Check low-temperature circuit for leak tightness. | AR09.41-P-1011MFC | |
| Install | |||
| 10 | Install the support (1) and screw in the screws (2). | ||
| 11 | Install the covers (4) and screw in the screws (3, 6). | ||
| 12 | Install expansion rivets (5). | ||
| 13 | Install lower engine compartment lining. | AR61.20-P-1105MFR |
ENGINE COOLING SYSTEM
| Number | Designation | Engine 260 in model 118 | Engine 260 in model 177 with code M016 (Uprated engine) | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02AB | Engine cooling system | Workshop replacement quantity | Liter | ≈8, 9 | ≈8, 2 | |
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Fluids specifications | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Fluids specifications | BB00.40-P-0325-00A | BB00.40-P-0325-00A | ||||
| Fluids specifications | BB00.40-P-0326-00A | BB00.40-P-0326-00A | ||||
ENGINE COOLING SYSTEM
| Number | Designation | Engine 260 in model 247 with code M016 (Uprated engine) | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02AB | Engine cooling system | Workshop replacement quantity | Liter | ≈8, 2 | |
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Fluids specifications | BB00.40-P-0310-01A | ||||
| Fluids specifications | BB00.40-P-0325-00A | ||||
| Fluids specifications | BB00.40-P-0326-00A | ||||
