Remove/Install Front Brake Control Cable - AR42.20-S-0520E
Model 447.6/7, 448.7
Except Code B25 (Electric parking brake)
Shown on model 447.6 Except Code XM0 (MOPF) with engine 622
Shown on model 447.6 with engine 780.701
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 447.6/7 with engine 780 |
AS00.00-Z-0035-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447.6/7 with engine 780 | AH00.00-Z-0300-01A |
| Remove/install | |||
| 1.1 | Remove HV battery module. | Model 447.6/7 with engine 780.701 | AR47.70-S-0001F |
| 1.2 | Remove high-voltage battery. | Model 447.6 with engine 780.705, Model 447.7 with engine 780.702 | AR47.70-S-0002G |
| 1.3 | Lift vehicle with vehicle lift. | Model 447.6/7 with engine 274, 622, 651, 654, model 448.7 | AR00.60-S-1000E |
| 2.1 | Remove underfloor paneling at left. | Model 447.6/7 with engine 651 with code MX0 (BlueEFFICIENCY package), model 447.6/7 with engine 654.9 with code CU1 (Underfloor paneling, aerodynamic) | AR61.30-S-1001E |
| 2.2 | Remove left center underfloor paneling. | Model 447.6/7 with engine 654.9 with code CU4 (Aerodynamics package) | AR61.30-S-1001E |
| 3 | Unscrew counternut (2). | If counternut (2) is installed. | |

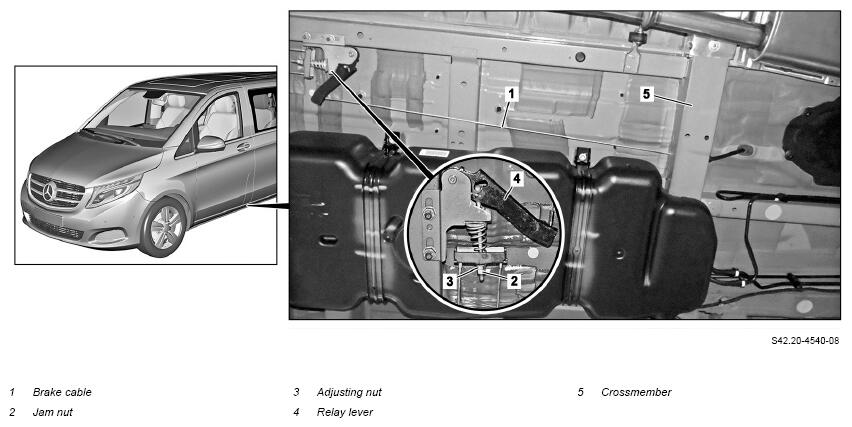

| 4 | Release adjusting nut (3) on cable slack adjuster. | ||
| 5 | Remove brake cable (1) from relay lever (4). | ||
| 6 | Unclip brake cable (1) from holder (11). | Model 447.6/7 with engine 780 If damage is present, ↓ install new bracket (11). |
|
| 7.1 | Remove brake cable (1) from body feed-through of crossmember (5) and guide out of crossmember (5). | Model 447.6/7 with engine 274, 622, 651, 654, model 448.7 |

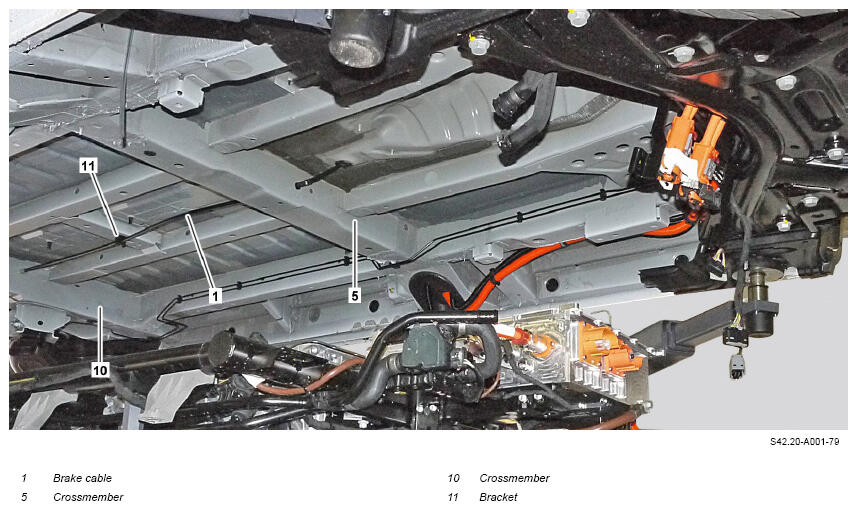

Fig 1 |
| 7.2 | Remove brake cable (1) from body feed-through of crossmember (10) and guide out of crossmembers (5, 10). | Model 447.6/7 with engine 780 |
Fig 1 |
| 8 | Lower vehicle. | ||
| 9 | Remove pedal assembly of parking brake. | AR42.20-S-0510E | |
| 10 | Remove door sill on driver's side. | AR68.30-S-4100E | |
| 11 | Remove seat console of driver's seat. | Model 447.6/7, 448.7 with code H00 (Hot/cool air duct to passenger compartment) | AR91.10-S-3000E |
| 12.1 | Remove center console. | Model 447.6/7, 448.7 with code FF1 (Center console with stowage compartment), Model 447.6/7, 448.7 with code FG0 (Luxury center console with roller blind), Model 447.6/7 with code F1O (Center console with stowage compartment and cup holder, center design), Model 447.6/7 with code FF2 (Center console with 1 device installation frame) Model 447.6/7 with code F1O (Center console with stowage compartment and cup holder, center design) |
AR68.20-S-2000EH |
| Model 447.6/7, model 448.7 with code FG0 (Luxury center console with roller blind) | AR68.20-S-2000EA | ||
| Model 447.6/7, model 448.7 with code FF1 (Center console with stowage compartment), model 447.6/7 with code FF2 (Center console with 1 device installation frame) | AR68.20-S-2000E | ||
| 12.2 | Remove trim of vertical strut. | Model 447.6/7 except code F1O (Center console with stowage compartment and cup holder, center design) except code FF1 (Center console with stowage compartment) except code FF2 (Center console with 1 device installation frame) except code FG0 (Luxury center console with roller blind) | AR68.00-S-1500E |
| 13 | Lift up floor covering on driver's side. | ||

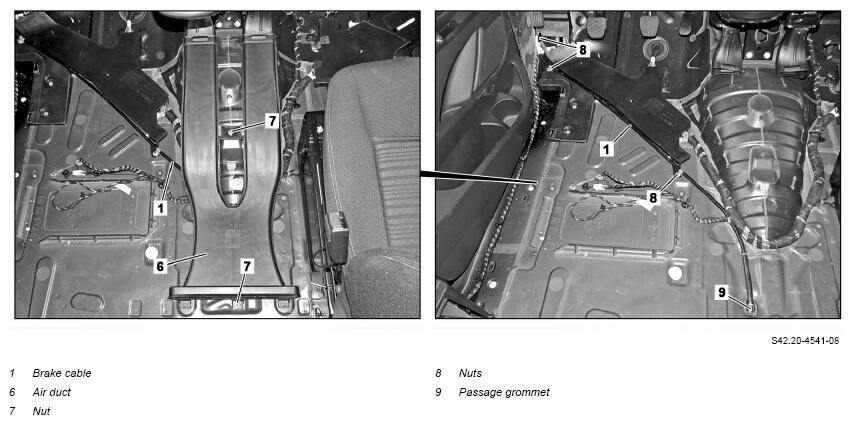

| 14 | Remove air duct (6). | Model 447.6/7, 448.7 with code H00 (Hot/cool air duct to passenger compartment) |
|
| 15 | Remove nuts (8). | ||
| 16 | Detach brake cable (1). | ||
| 17 | Remove brake cable (1) upwards through body feed-through. | ||
| 18 | Install in the reverse order. | ||
| 19 | Adjust parking brake. | AR42.20-S-0540EA |
