Lift/Jack Up Vehicle - AR00.60-S-1000E
Model 447, 448

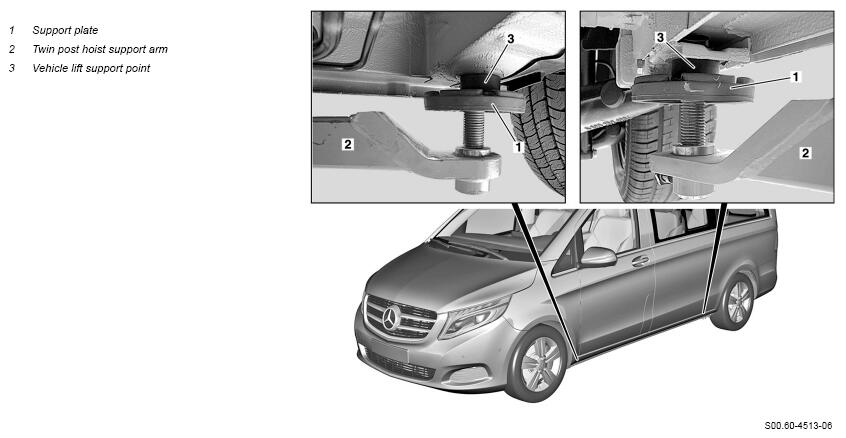

Illustration of left side of vehicle

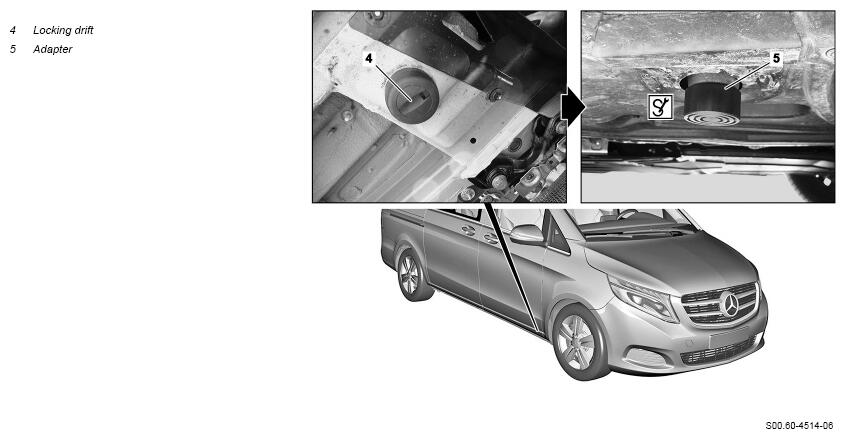

Shown at right front
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notice | Special instructions for lifting and supporting vehicle | AH00.60-S-0100-01KOA | |
| Raising | |||
| 1 | Remove locking drifts (4) from all vehicle lift support points (3) | Model 447 with engine 651 with code MX0 (BlueEFFICIENCY package) Model 447 with code H12 (Auxiliary hot-water heater) except code MX0 (BlueEFFICIENCY package) except code VQ1 (AVANTGARDE) Model 447 with code HZ1 (Auxiliary heater (warm air)) except code MX0 (BlueEFFICIENCY package) except code VQ1 (AVANTGARDE) Model 447 with code MA6 (Emissions category Euro 6b N1 GR.III/N2) except code MX0 (BlueEFFICIENCY package) except code VQ1 (AVANTGARDE) Model 447 with code MB6 (Low-emission vehicle, Euro 6 Gr. 1) except code MX0 (BlueEFFICIENCY package) except code VQ1 (AVANTGARDE) Only when the left or right underfloor paneling or the splash guard is removed. |
|
| 2 | Fit adapter (5) to all vehicle lift support points (3) | Model 447 with engine 651 with code MX0 (BlueEFFICIENCY package) Model 447 with code H12 (Auxiliary hot-water heater) except code MX0 (BlueEFFICIENCY package) except code VQ1 (AVANTGARDE) Model 447 with code HZ1 (Auxiliary heater (warm air)) except code MX0 (BlueEFFICIENCY package) except code VQ1 (AVANTGARDE) Model 447 with code MA6 (Emissions category Euro 6b N1 GR.III/N2) except code MX0 (BlueEFFICIENCY package) except code VQ1 (AVANTGARDE) Model 447 with code MB6 (Low-emission vehicle, Euro 6 Gr. 1) except code MX0 (BlueEFFICIENCY package) except code VQ1 (AVANTGARDE) Only when the left or right underfloor paneling or the splash guard is removed. |
Fig 1 |
| 3 | Place support plates (1) to parallel position by shifting the support arms on the twin post hoist (2) to the specified vehicle lift support points (3) or the adapters (5) | Commercially available devices/tools Twin post hoist, 3.0-3.5 t electromechanical Twin post hoist, 2.5-3.5 t electrohydraulic |
|
| 4 | Move support arms for twin post hoist (2) upwards until the support plates (1) are positioned at the specified vehicle lift support points (3) or the adapters (5) | Otherwise, the body could be damaged. |
|
| Check | |||
| 5 | Check support plates (1) are seated correctly and mass distribution of the vehicle | ||
| Support plates (1) must be positioned as close to mounting console as possible so that the cover is not damaged. Realign support plates (1) if necessary. | |||
| Raising | |||
| 6 | Raise vehicle to working height | When removing major assemblies or with heavy special equipment, the vehicle must be secured against tilting and falling down. ↓ Secure vehicle on vehicle lift |
AR00.60-S-0100E |
| 7 | Lowering the vehicle in the reverse order |
