Underbody Paneling Removal And Installation - Ar61.30-S-1001E

Model 447 with engine 254

with code HX1 (Refrigerant R-1234yf)

Model 447 with engine 651

with code MX0 (BlueEFFICIENCY package)

Model 447 with engine 654.9

Courtesy of MERCEDES-BENZ USA

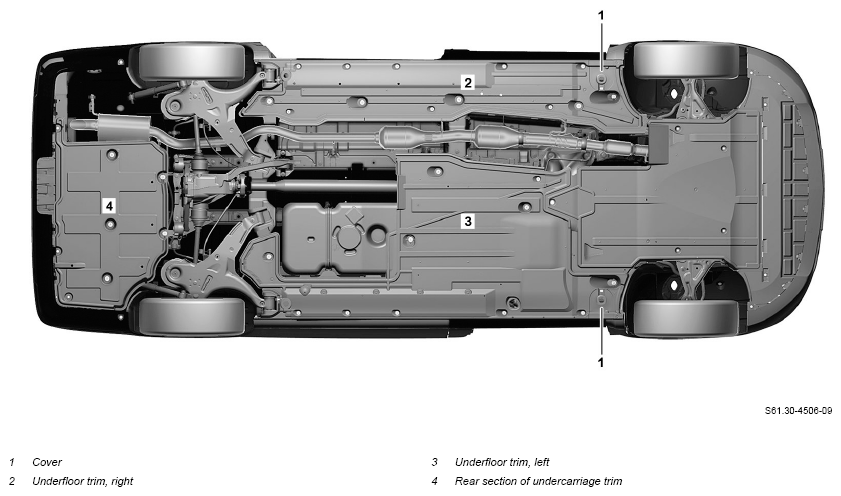

Shown on model 447 with engine 651

Courtesy of MERCEDES-BENZ USA

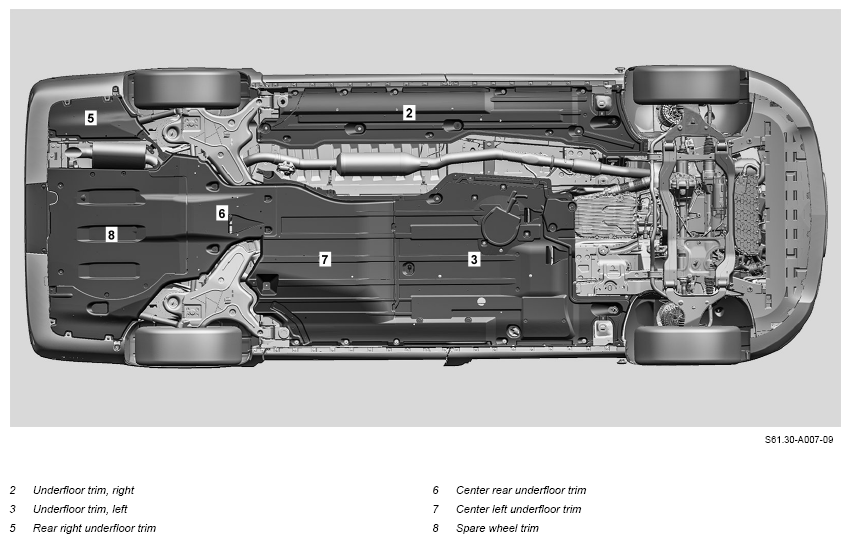

Shown on model 447 with engine 654.9 with code CU4 (Aerodynamics package), with spare wheel with version as emergency spare wheel

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Remove the left/right cover (1) on the jack support point.	If right underfloor trim (2) and/or left underfloor trim (3) are removed. Model 447 with engine 651 with code MX0 (BlueEFFICIENCY package) Model 447 with engine 654.9 with code CU1 (Aerodynamic underbody panelling)	AR61.30-S-1001-04E
2	Raise vehicle.		AR00.60-S-1000E
3	Remove the right underfloor trim (2).	Model 447 with engine 254 with code HX1 (Refrigerant R-1234yf) Model 447 with engine 651 with code MX0 (BlueEFFICIENCY package) Model 447 with engine 654.9	AR61.30-S-1001-01E
4	Remove the left underfloor trim (3).	Model 447 with engine 651 with code MX0 (BlueEFFICIENCY package) Model 447 with engine 654.9	AR61.30-S-1001-02E
5	Remove the rear underfloor trim (4).	Model 447 with engine 651 with code MX0 (BlueEFFICIENCY package) Model 447 with engine 654.9 with code CU1 (Aerodynamic underbody	AR61.30-S-1001-03E
		panelling)
6	Remove the right rear underfloor trim (5).	Model 447 with engine 654.9 with code CU4 (Aerodynamics package)	AR61.30-S-1001-06E
7	Remove the center rear underfloor trim (6).	Model 447 with engine 654.9 with code CU4 (Aerodynamics package) To do so, remove the spare wheel trim (8).	AR61.30-S-1001-05E
8	Remove carrier for the center rear underfloor trim (6).	Model 447 with engine 654.9 with code CU4 (Aerodynamics package)	AR61.30-S-1001-08E
9	Remove center left underfloor trim (7).	Model 447 with engine 654.9 with code CU4 (Aerodynamics package)	AR61.30-S-1001-07E
10	Install in the reverse order.
