Remove/Install Vertical Strut Paneling - AR68.00-S-1500E

Model 447.6/7

Except Code F1O (Center console with stowage compartment and cup holder med. version)

Except Code FF1 (Centre console with stowage compartment)

Except Code FF2 (Centre console with 1-DIN aperture)

Except Code FG0 (Deluxe center console with roller shutter door)

MODIFICATION NOTES

07.12.2023

Document updated.

Whole document.

Courtesy of MERCEDES-BENZ USA

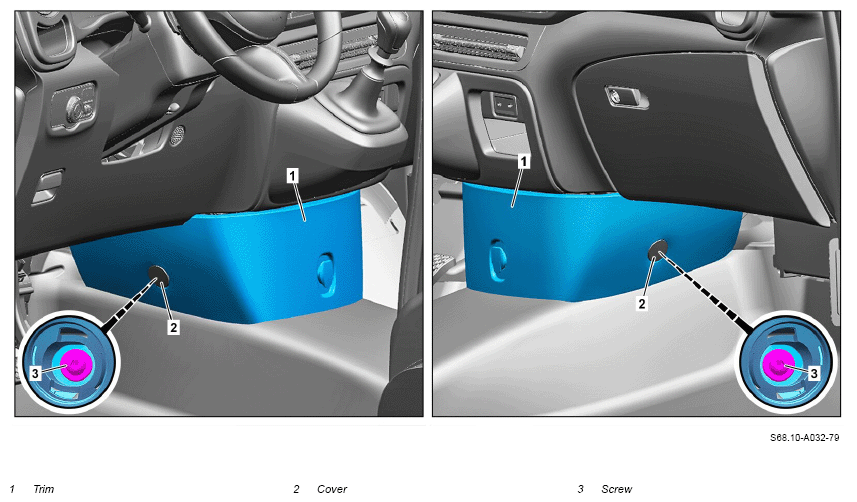

Shown On model 447.7 Except Code XM7 (facelift II)

Courtesy of MERCEDES-BENZ USA

Shown On model 447.7 With Code XM7 (Facelift II)

Courtesy of MERCEDES-BENZ USA

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447.6/7 with engine 780	AH00.00-Z-0300-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install

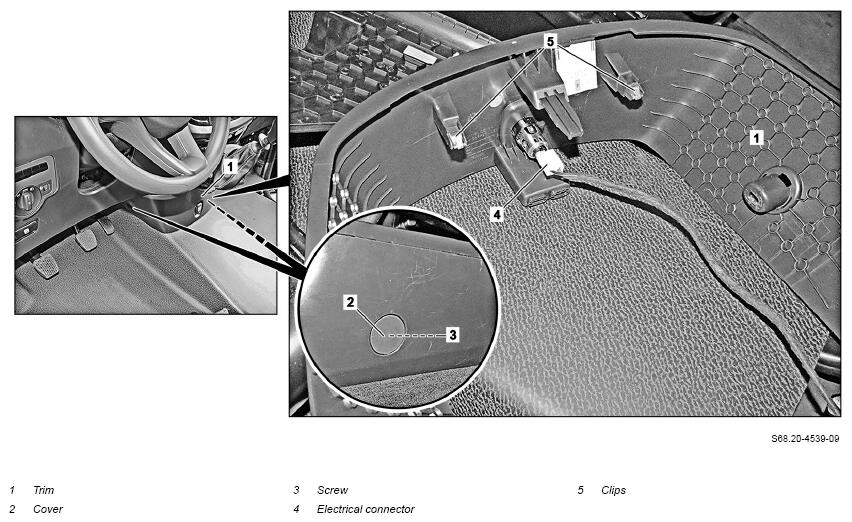

1	Remove covers (2).
2	Unscrew screws (3).
3	Release and disconnect electrical connector (4).

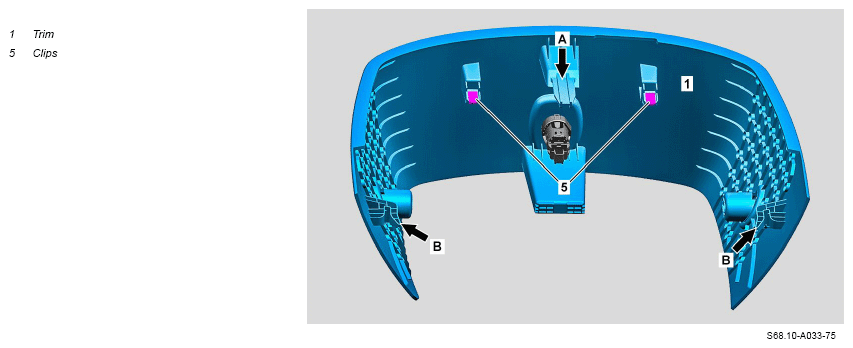

4	Remove trim (1).	To do this, unclip trim (1) in direction of passenger compartment. Ensure that guides (arrows A, B) are seated correctly. Check clips (5) for damage.
		Long wedge If damage is present: ↓ Replace damaged clip (5).	Fig 1
5	Remove trim (1).	To do so, release and disconnect electrical connector (4).
6	Install in the reverse order.
	Check
7	Perform function test on 12 V socket or cigarette lighter.

Fig 1: Identifying Long Wedge (115 589 03 59 00)
