Remove/Install Seat Console - AR91.10-S-3000E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

Shown on model 447.8 except code XM7 (MOPF II) on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Shown on model 447.8 with code SF1 (Electrically adjustable driver's seat), with code E65 (Burmester® surround sound system), except code XM7 (MOPF II) on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Shown on model 447.6 with code D50 (Full-width partition wall), with code S23 (Front passenger bench seat), except code XM7 (MOPF II) on right side of vehicle

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove respective front seat.	Model 447 except code S23 (Co-driver's seat double seat) Model 448	AR91.10-S-1000E
		Model 447.6/7 with code S23 (Co-driver's seat double seat)	AR91.10-S-1035E

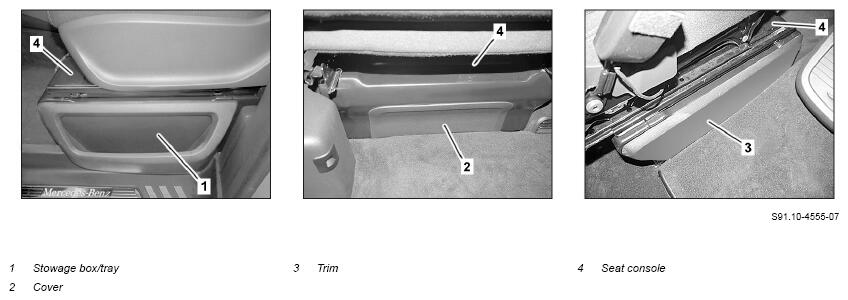

2.1	Remove stowage box/tray (1) on outside of seat console (4).	Model 447.8, 448.8
2.2	Remove cover (13) on outside of seat console (4).	Model 447.6/7, 448.7

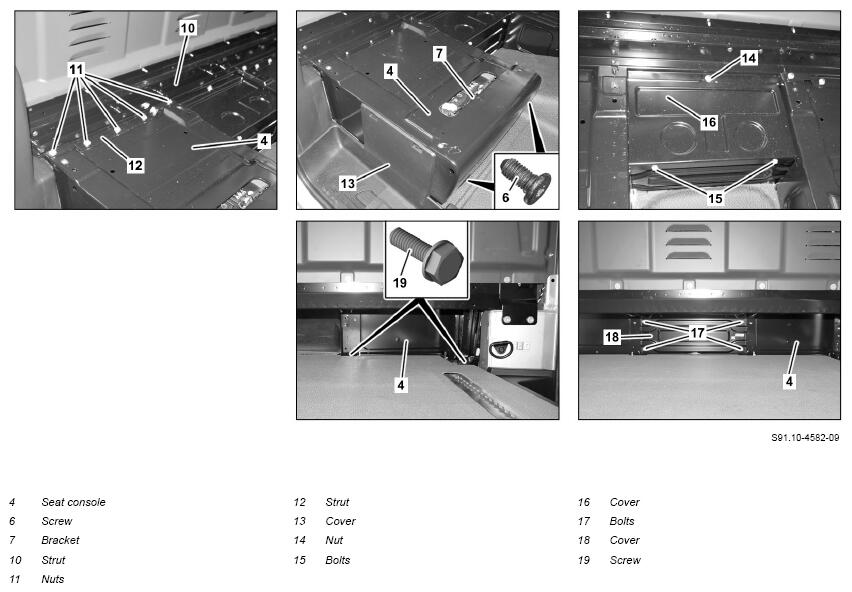

3	Remove strut (10) from B-pillar crossmember.	Model 447.6/7 with code S23 (Co-driver's seat double seat)
4	Remove nuts (11) and remove strut (12).	Model 447.6/7 with code S23 (Co-driver's seat double seat) Model 447.6 with code D50 (Full-length partition) Model 447.6 with code D51 (Entire partition with 1 window) Model 447.6 with code D62 (Prov.f.retrofitting of partition) Model 448.7 with code VR5 (Panel van)
5	Remove nut (14).	Model 447.6/7 with code S23 (Co-driver's seat double seat) Model 447.6 with code D50 (Full-length partition) Model 447.6 with code D51 (Entire partition with 1 window) Model 447.6 with code D62 (Prov.f.retrofitting of partition) Model 448.7 with code VR5 (Panel van)
6	Remove screws (15) and remove cover (16).	Model 447.6/7 with code S23 (Co-driver's seat double seat) Model 447.6 with code D50 (Full-length partition) Model 447.6 with code D51 (Entire partition with 1 window) Model 447.6 with code D62 (Prov.f.retrofitting of partition) Model 448.7 with code VR5 (Panel van)
7	Remove cover (2) at rear of seat console (4).	Model 447, 448 with code G42 (7G-TRONIC PLUS) Model 447, 448 with code G43 (9G-TRONIC) Model 447, 448 with code MJ8 (ECO start/stop function) Long wedge	Fig 1
8	Remove trim (3) from seat console (4).	Model 447.8, 448.8 except code XM7 (MOPF II)
9	Lift floor covering (8) in area of screws (5) until the screws (5) are accessible.	Model 447.7, 448.7 with code V33 (Floor covering in passenger compartment (carpeted)) Model 447.7, 448.7 with code V41 (Carpeted floor in passenger compartment) Model 447.8, 448.8 Ensure floor covering (8) is correctly seated at side panels. Model 447.7, 448.7 with code H00 (Hot/cool air duct to passenger compartment) with code V33 (Floor covering in passenger compartment (carpeted)) Model 447.8, 448.8 with code H00 (Hot/cool air duct to passenger compartment) Installation:  Ensure floor covering (8) is correctly seated on hot air duct to passenger compartment.

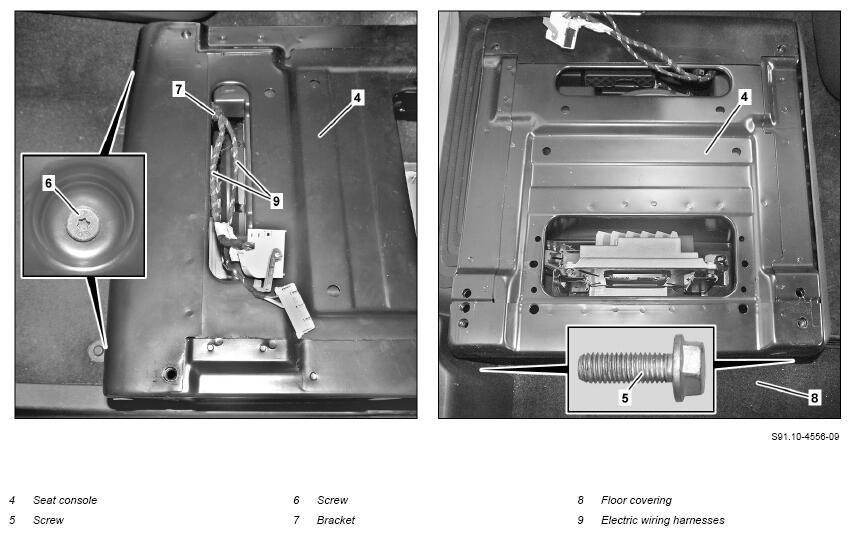

10.1	Remove bolts (5).	Model 447.7, 448.7 with code V33 (Floor covering in passenger compartment (carpeted)) Model 447.7, 448.7 with code V41 (Carpeted floor in passenger compartment) Model 447.8, 448.8 Screw/bolt, seat console to body	*BA91.10-Z-1003-01KOJ
10.2	Remove screws (19).	Model 447.6/7 with code S23 (Co-driver's seat double seat) Model 447.6 with code D50 (Full-length partition) Model 447.6 with code D51 (Entire partition with 1 window) Model 447.6 with code D62 (Prov.f.retrofitting of partition) Model 448.7 with code VR5 (Panel van) Screw/bolt, seat console to body	*BA91.10-Z-1003-01KOJ
11	Remove screws (17) and remove cover (18).	Model 447.6/7 with code S23 (Co-driver's seat double seat) Model 447.6 with code D50 (Full-length partition) Model 447.6 with code D51 (Entire partition with 1 window) Model 447.6 with code D62 (Prov.f.retrofitting of partition) Model 448.7 with code VR5 (Panel van)
12	Tighten screws (6).	Screw/bolt, seat console to front reinforcement	*BA91.10-Z-1004-01KOJ
13	Remove holder (7) for electrical wiring harnesses (9).	If installed.
14	Remove seat console (4) upwards from vehicle floor and remove from vehicle.
15	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
