Retrofit COMAND® Online - AN82.85-P-0009WM

Model 172.4

with code 3U1 (Head unit europe/CIS-states/Monoglei)

with code 505 (Radio 20 NTG5, not navigation-enabled)

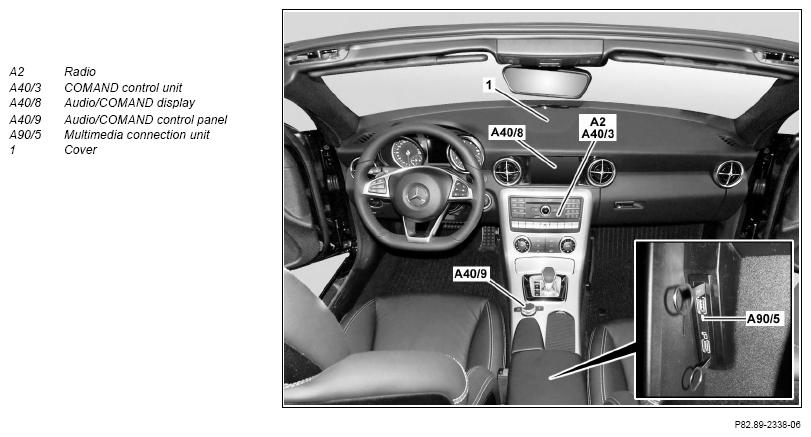

Shown on model 172.4## 1#

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove radio (A2)	The radio (A2) is no longer required.	AR82.60-P-7502W
2	Remove upper control panel control unit.		AR54.21-P-1262W
3	Remove Audio/COMAND® control panel (A40/9)	The Audio/COMAND® control panel (A40/9) is no longer required.
4	Remove Audio/COMAND® display (A408)		AR82.60-P-7722W
5	Remove instrument cluster	Model 172.4## 1# except code 810 (Sound system)	AR54.30-P-6015W
6	Remove cover under instrument panel (driver side)
7	Remove cover under instrument panel (passenger-side)	Model 172.4## 2# except code 810 (Sound system)
8	Unclip cover (1) from instrument panel	Mounting wedge	Fig 2
9	Remove glove box
10	Remove side paneling from instrument panel (passenger side)
11	Remove multimedia connection unit (A90/5)	The multimedia connection unit (A90/5) is no longer required.	AR82.60-P-1032WM
12	Disconnect battery ground line	Model 172.4 except code 810 (Sound system)	AR54.10-P-0003W
13	Release SAM control unit with fuse and relay box at front left	Model 172.4 except code 810 (Sound system) Do not disconnect electrical connections.	AR54.21-P-1260CW
	Install
14	Retrofit GPS antenna for COMAND®		AN82.85-P-0008-04WM
15	Retrofit WLAN antenna for COMAND®		AN82.85-P-0008-05WM
16	Retrofit additional fan for COMAND®	Model 172.4 except code 810 (Sound system)	AN82.85-P-0008-01WM
17	Retrofit additional fan wiring harness for COMAND®	Model 172.4 except code 810 (Sound system)	AN82.85-P-0008-02WM
	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 1
18	Retrofit new Audio/COMAND® control panel (A40/9)
19	Install COMAND® controller unit (A40/3)		AR82.60-P-7502W
20	Install new multimedia connection unit (A90/5)		AR82.60-P-1032WM
21	Install remaining parts
	Update Vehicle Documentation (VeDoc)
22	Delete special equipment from online vehicle data card	CODE 505 (Radio 20 NTG5 non-navigation-capable)
23	Enter special equipment into the on-line vehicle data card	Code 531 (COMAND® APS) CODE 815 (Single DVD drive)
24	Attach "COMAND® Online retrofitted as per AN82.85-P-0009WM" note under field organization texts to design group 82
25	Attach "COMAND® Online retrofitted as per AN82.85-P-0009WM" note under field organization texts to design group 54	Model 172.4 except code 810 (Sound system)
26	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)		AD00.00-P-2000-04A
27	Carry out variant coding using software calibration number (SCN)	Instrument cluster  COMAND® controller unit (A40/3)  Front SAM control unit with fuse and relay module
28	Carry out variant coding using software calibration number (SCN)	Model 172.4 with code 218 (Reversing camera) Backup camera
29	Carry out variant coding using software calibration number (SCN)	Model 172.4 with code 348 (Emergency call/Assist system) Emergency call system control unit
30	Disconnect diagnostic system		AD00.00-P-2000-04A
	Check
31	Perform function test	See Owner's Manual.

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
