Connect Star Diagnosis And Read Out Fault Memory - AD00.00-P-2000-04A

Model 117, 124.034/036, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171.4, 172, 176, 197, 199, 202, 203, 204, 207, 208, 209, 210, 211, 212, 215, 216, 218, 219, 220, 221, 230, 231, 240, 242, 245, 246, 251, 292, 414

Model 461

Model 463

up to model year 2019

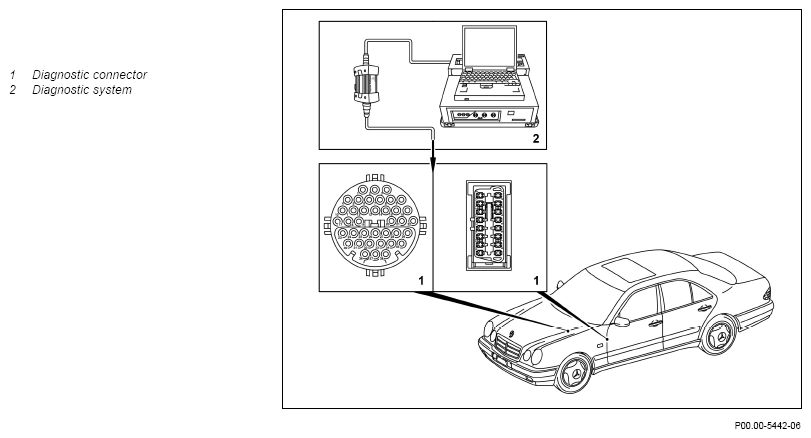

Shown on model 210

Courtesy of MERCEDES-BENZ USA

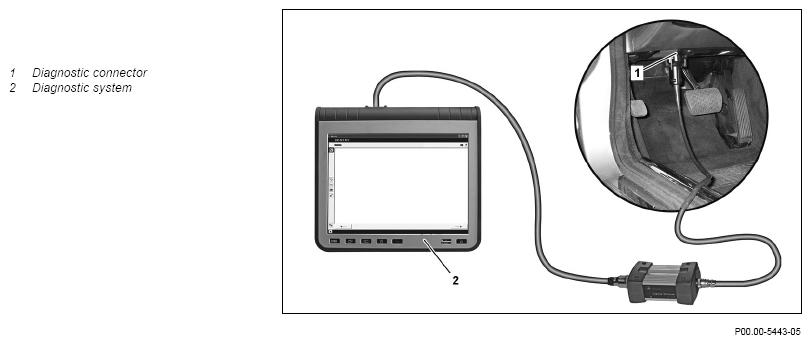

Shown on model 204

Courtesy of MERCEDES-BENZ USA

1. Connect diagnostic system (2) to diagnostic connector (1).
2. Start diagnosis.
3. Select the model series in the menu.

   The work procedures in the diagnosis program are menu-assisted.

   Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following completion of the operations.

4. Disconnect diagnostic system (2).

   Following completion of diagnostic operations.
