Retrofit WLAN Antenna For COMAND® Online Incl. DVD Changer - AN82.85-P-0008-05WM

Model 172.4

with code 3U1 (Head unit europe/CIS-states/Monoglei)

with code 505 (Radio 20 NTG5, not navigation-enabled)

Information on preventing damage to electronic components due to electrostatic discharge

AH54.00-P-0001-01A

The following operation steps describe installation in a left-hand drive vehicle. The work procedure may differ for right-hand drive vehicles.

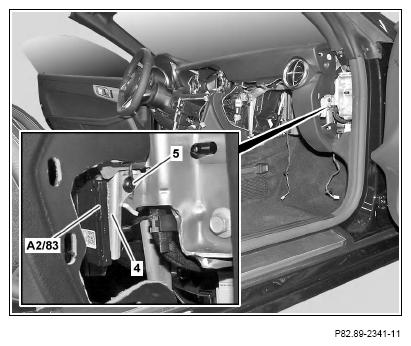

1. Tighten bracket (4) using screw/bolt (5) onto cross member under instrument panel.
2. Clip WLAN antenna (A2/83) into bracket.

   Courtesy of MERCEDES-BENZ USA

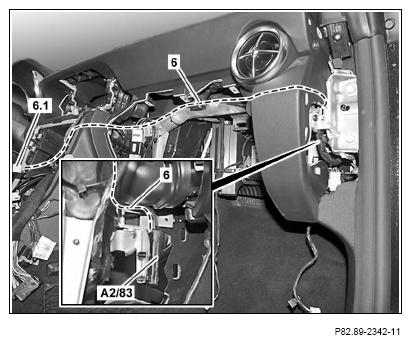

3. Route antenna line (6), starting from installation location of GPS antenna (A2/83), to device installation frame for the audio component and fix in place using cable ties.

   The beige 1-pin connector socket (6.1) is connected when the COMAND® controller unit is installed.

Courtesy of MERCEDES-BENZ USA
