Remove/Install Multimedia Connection Unit In Front Stowage Compartment - AR82.60-P-1032WM
Model 172.4
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Open stowage compartment in center console | ||
| 2 | Insert removal fixture (3) in multimedia connection unit (1) and remove multimedia connection unit (1) from center console | ||

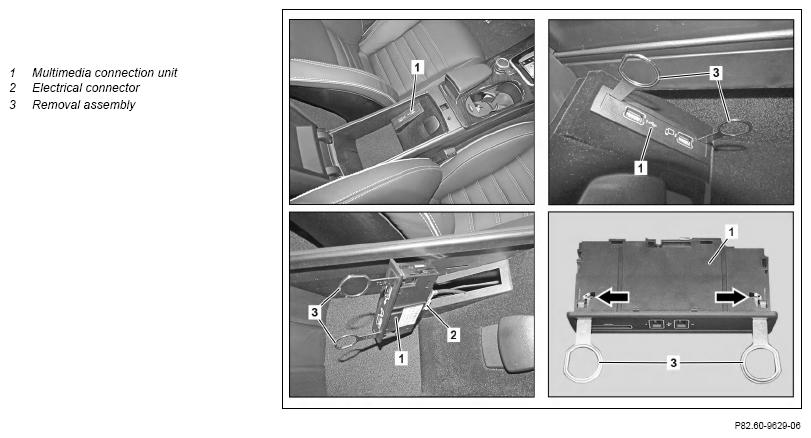

| Fig 1 | |||
| 3 | Disconnect electrical connector (2) from multimedia connection unit (1) and remove multimedia connection unit (1) | ||
| 4 | Operate locks (arrows) on multimedia connection unit (1) and remove removal fixture (3) | ||
| 5 | Install in the reverse order |
