Install Additional Fan For COMAND® Online Incl. DVD Changer - AN82.85-P-0008-01WM

Model 172.4

with code 3U1 (Head unit europe/CIS-states/Monoglei)

with code 505 (Radio 20 NTG5, not navigation-enabled)

except code 810 (Premium sound system)

The following operation steps describe installation in a left-hand drive vehicle. The work procedure may differ for right-hand drive vehicles.

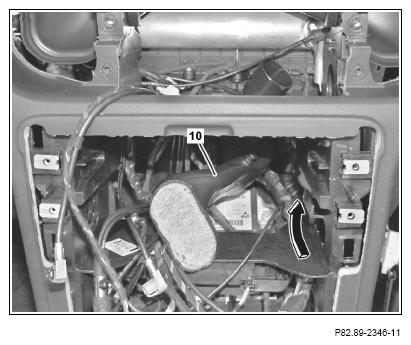

1. Route air intake pipe (10), as shown, upwards between mounting slot for COMAND® controller unit and the air conditioner housing in the direction of the arrow.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

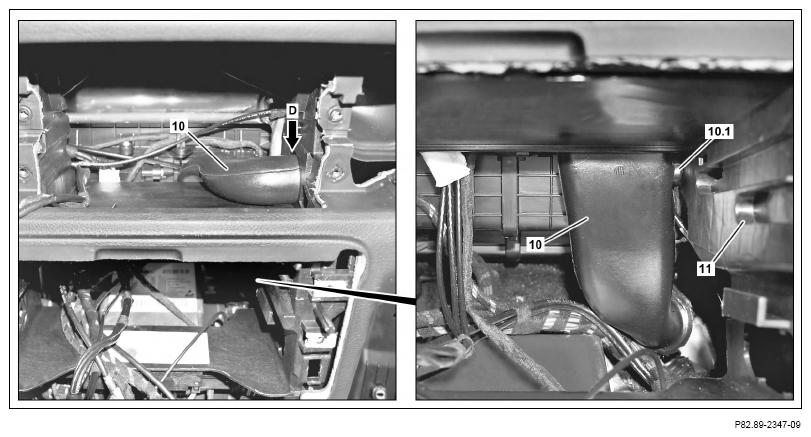

2. Position air intake pipe (10), as shown, and clip guide (10.1) into mounting slot (11) of COMAND® controller unit.
3. Insert air intake pipe (10) into upper area in opening (arrow D) in mounting slot (11) of COMAND® controller unit.

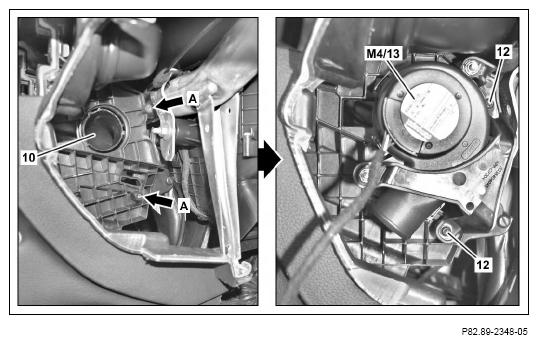

4. Insert COMAND® fan motor (M4/13) into guides on air intake pipe (10) and turn to left.
5. Align COMAND® fan motor (M4/13) with attachment points (arrows A) and tighten using screws/bolts (12).

   Courtesy of MERCEDES-BENZ USA

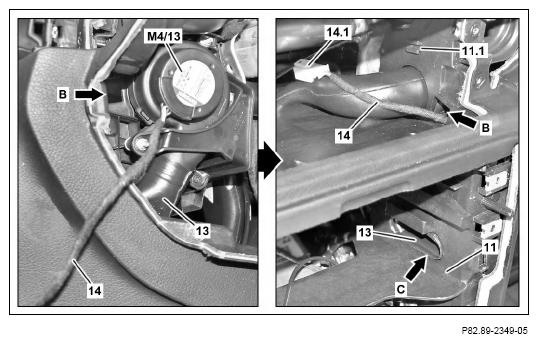

6. Slide air exhaust pipe (13) onto COMAND® fan motor (M4/13) and clip into lower section (arrow C) of mounting slot (11) of COMAND® controller unit.
7. Route wiring harness (14) of COMAND® fan motor (M4/13), as shown, through opening (arrow B) to the bracket (11.1).
8. Clip white, 4-pin connector (14.1) into bracket (11.1).

Courtesy of MERCEDES-BENZ USA
