Remove/Install Stabilizer Bar On Front Axle - AR32.20-P-0300RG

Model 190

Courtesy of MERCEDES-BENZ USA

Shown on model 190 except code 478 (AMG RIDE CONTROL suspension) and except code M032 (Black Series version)

Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on working in engine compartment		AH60.00-P-0042-01RG
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove front wheels.		AR40.10-P-1100RQ
2	Remove front left and right fender liner in front fender.	Model 190 with code M032 (Black Series version)	AR88.10-P-1300RGB
		Model 190 except code M032 (Black Series version)	AR88.10-P-1300RG
3	Remove front engine compartment lining at bottom.	Model 190.381	AR61.20-P-1105RGB
		Model 190 (except 190.381)	AR61.20-P-1105RG
4.1	Remove engine cover (11) and radiator grille (12).	Model 190 except code M032 (Black Series version)
4.2	Remove fan unit.	Model 190.381 with engine 178 with code M032 (Black Series version)	AR20.40-P-5050MNJ
5	Remove front guide vanes from front axle.		AR42.10-P-0101RG
		Model 190 with code M030 (GT R version) Model 190 with code M032 (Black Series version)

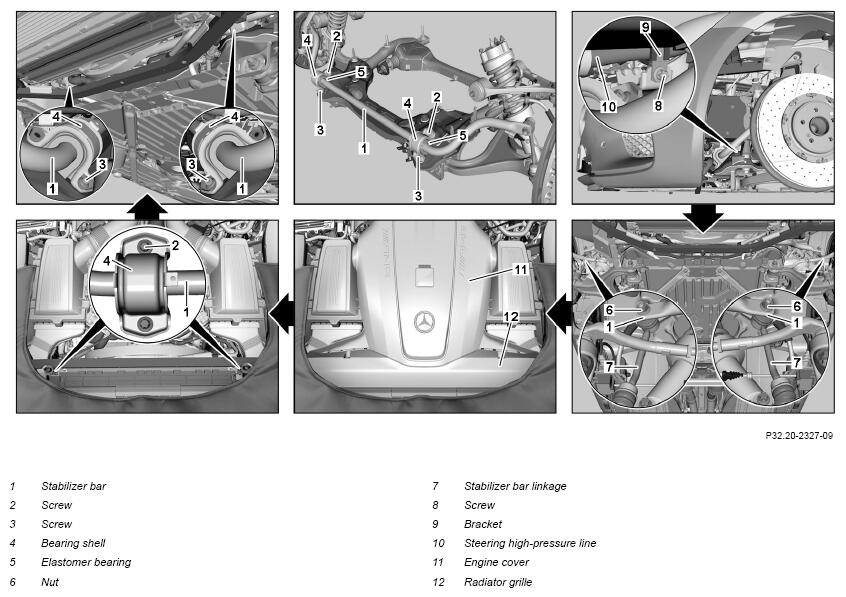

6	Unscrew screw (8) and expose holder (9) of steering high-pressure line (10).
7	Remove nuts (6) of torsion bar linkages (7) at left and right and detach joint ends of torsion bar linkages (7) at left and right from stabilizer (1).	Model 190 with code 478 (AMG RIDE CONTROL) Model 190 with code M032 (Black Series version) Handle carbon stabilizer (1) carefully. It may be damaged otherwise.
		Model 190 with code 478 (AMG RIDE CONTROL)
		Installation  : Secure torsion bar linkages (7) to each outer bore of stabilizer (1).
		Model 190 with code M032 (Black Series version)
		Installation  : Secure torsion bar linkages (7) to respective inner bore of stabilizer (1).
		Nut, torsion bar linkage to stabilizer bar	*BA32.35-P-1001-02C
8	Unscrew screws (2) at left and right from above.	Bolt, stabilizer bar to integral carrier	*BA32.35-P-1003-02C
9	Unscrew screws (3) at left and right from below.	Bolt, stabilizer bar to integral carrier	*BA32.35-P-1003-02C
10	Remove bearing shells (4) at left and right.	Clean bearing shells (4) before installation.
11	Detach stabilizer (1) from front axle carrier and remove sidewards to front passenger side.	Model 190 with code 478 (AMG RIDE CONTROL) Model 190 with code M032 (Black Series version) Handle carbon stabilizer (1) carefully. It may be damaged otherwise.
		Clean elastomer bearings (5) before installation of stabilizer (1).
	Check
12	Check ball joints and sealing bellows of torsion bar linkages (7) for damage or wear.	If problems are found, ↓ replace corresponding torsion bar linkage (7).
			AR32.35-P-3330RG
13	Check elastomer bearings (5) of stabilizer (1) for damage or wear.	If problems are found, ↓ Replace stabilizer bar (1).
14	Install in the reverse order.
