Lower Engine Compartment Lining Removal And Installation - Ar61.20-P-1105RGB

Model 190.381

MODIFICATION NOTES

24.01.2024

Bolt, mount for front engine compartment paneling

Model 190

BA61.40-P-1001-01E

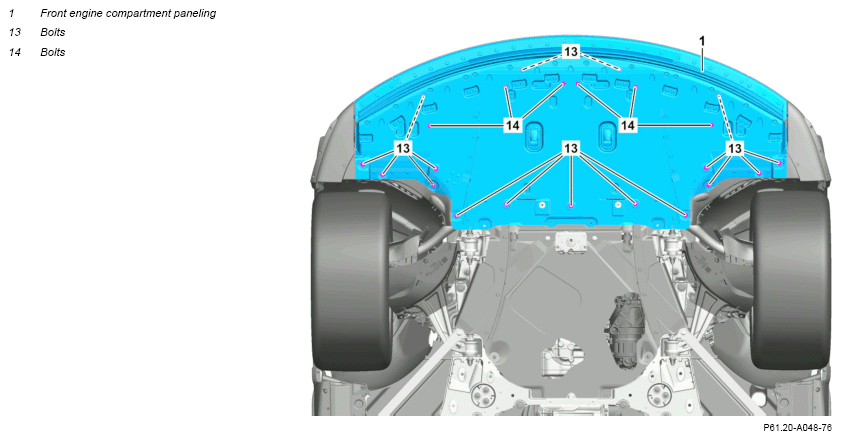

G16677934

Courtesy of MERCEDES-BENZ USA

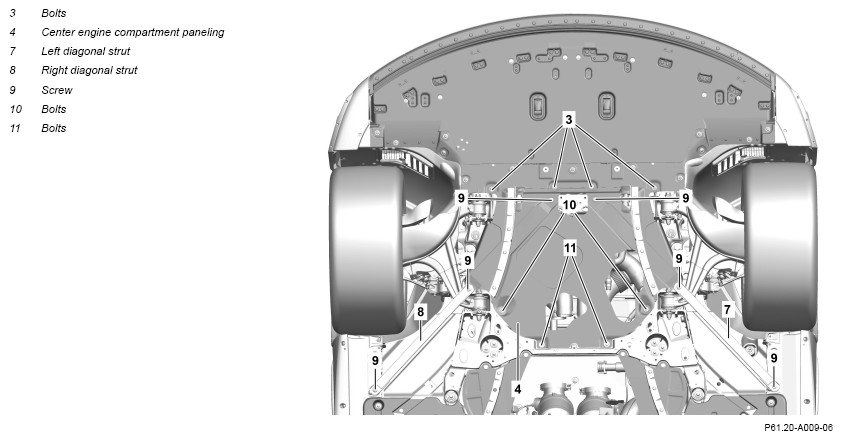

G16677935

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove holders on front spoiler.	When removing front engine compartment paneling (1).
2	Raise vehicle.		AR00.60-P-1000RG
3	Tighten screws (3).	Front engine compartment paneling (1) and center engine compartment paneling (4) can be removed separately.
		Bolt, mount for front engine compartment paneling	*BA61.40-P-1001-01E
4	Remove screws (13, 14), release and disconnect electrical connector and remove front engine compartment lining (1).	When removing front engine compartment paneling (1). Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. Aid of helper required.
		Bolt, mount for front engine compartment paneling	*BA61.40-P-1001-01E
5	Unscrew bolts (9) and remove left diagonal strut (7) and/or right diagonal strut (8).	When removing center engine compartment paneling (4). : Do not tighten screws (9) until vehicle is in ready-to-drive condition (e. g. on a 4- post vehicle lift).
		Bolt, diagonal strut mount to front axle carrier/longitudinal member	*BA61.10-P-1004-01I
6	Remove screws (10).	When removing center engine compartment lining (4).
7	Unscrew bolts (11) and remove center engine compartment lining (4).	When removing center engine compartment lining (4).
		Screw, attachment of front/center engine compartment lining	*BA61.40-P-1005-01E
8	Install in the reverse order.

FRAME FLOOR ASSEMBLY

Number	Designation		Model 190
BA61.10-P-1004-01I	Bolt, diagonal strut mount to front axle carrier/longitudinal member	Nm	55

UNDERBODY PROTECTION

Number	Designation		Model 190
BA61.40-P-1001-01E	Bolt, mount for front engine compartment paneling	Nm	6

UNDERBODY PROTECTION

Number	Designation			Model 190
BA61.40-P-1005-01E	Screw, attachment of front/center engine compartment lining	M8	Nm	22
