Remove/Install Fender Liner In Front Fender - AR88.10-P-1300RGB
Model 190
with code M032 (Black Series version)
Shown on the left side of vehicle
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove left or right front wheel and tire assembly. | AR40.10-P-1100RQ | |
| 2 | Unscrew the bolts (4, 9 and 11). | ||
| 3 | Remove the nuts (7 and 8). | ||

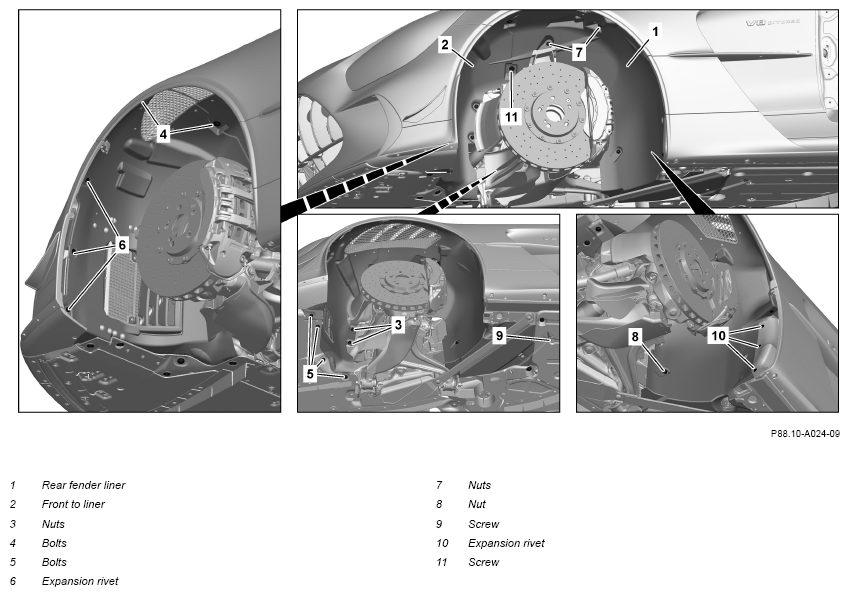

| 4 | Remove expansion rivets (10). | Fig 1 | |
| 5 | Guide out the left/right rear fender liner (1) and remove. | ||
| 6 | Remove nuts (3). | ||
| 7 | Remove expansion rivets (6). | Fig 1 | |
| 8 | Remove screws (5). | ||
| 9 | Remove the left/right front fender liner (2). | ||
| 10 | Install in the reverse order. |
