Remove/Install Fender Liner In Front Fender - AR88.10-P-1300RG

Model 190

except code M032 (Black Series version)

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Remove left or right front wheel and tire assembly.		AR40.10-P-1100RQ
2	Remove screws (3).
3	Remove nuts (2).

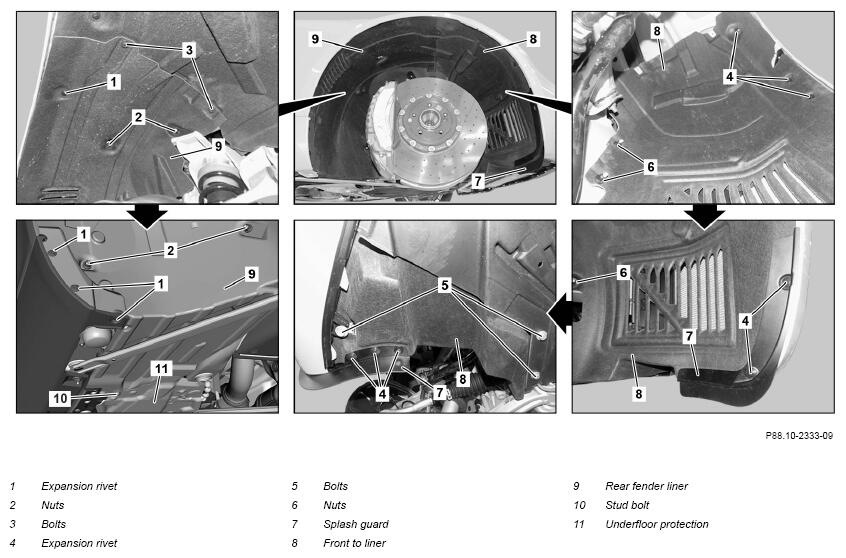

4	Remove expansion rivets (1).	Clip remover	Fig 1
5	Detach left and/or right front underbody protection (11) until stud bolt (10) is accessible.
6	Guide left and/or right rear fender liner (9) out over stud bolt (10) and remove.
7	Remove screws (5).
8	Remove expansion rivets (4).	Clip remover	Fig 1
9	Remove splash guard (7).
10	Remove nuts (6).
11	Remove left/right front fender liner (8).
12	Install in the reverse order.

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
