Remove/Install Front Guide Vane On Front Axle - AR42.10-P-0101RG

Model 190

with code M030 (GT R version)

Model 190

with code M032 (Black Series version)

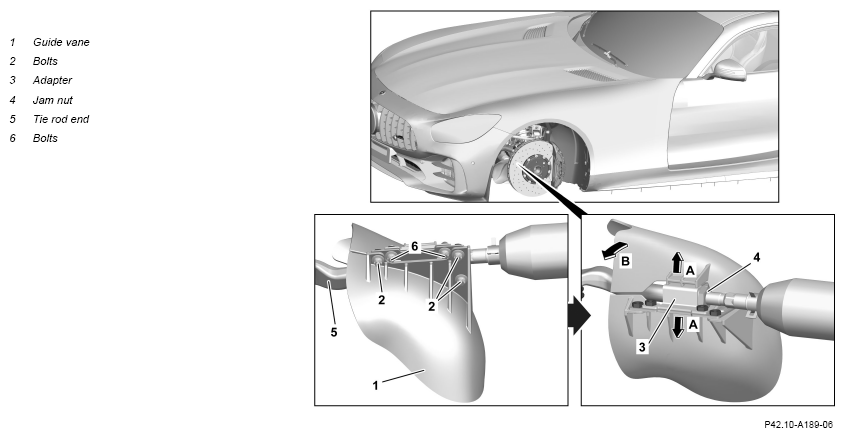

Shown with code M030 (GT R version) on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Raise vehicle.		AR00.60-P-1000RG
2	Swivel tie rod end (5) in direction of arrow (arrow B).
3	Remove bolts (2).
4	Remove guide vane (1) from tie rod end (5) (arrows A).
5	Unscrew screws (6) and remove adapter (3) from tie rod end (5).	When replacing adapter (3).
	Install
6	Attach adapter (3) to tie rod end (5) and screw in screws (6).	When replacing adapter (3).
		The adapter (3) must be flush with the counternut (4).
7	Position guide vane (1) at adapter (3).
8	Screw in screw/bolts (2).
9	Move tie rod end (5) to center position.
10	Lower vehicle.		AR00.60-P-1000RG
