Overview Of System Components, Telematics - GF82.85-P-9999FG

Model 213

up to model year 2021

G13747479Courtesy of MERCEDES-BENZ USA

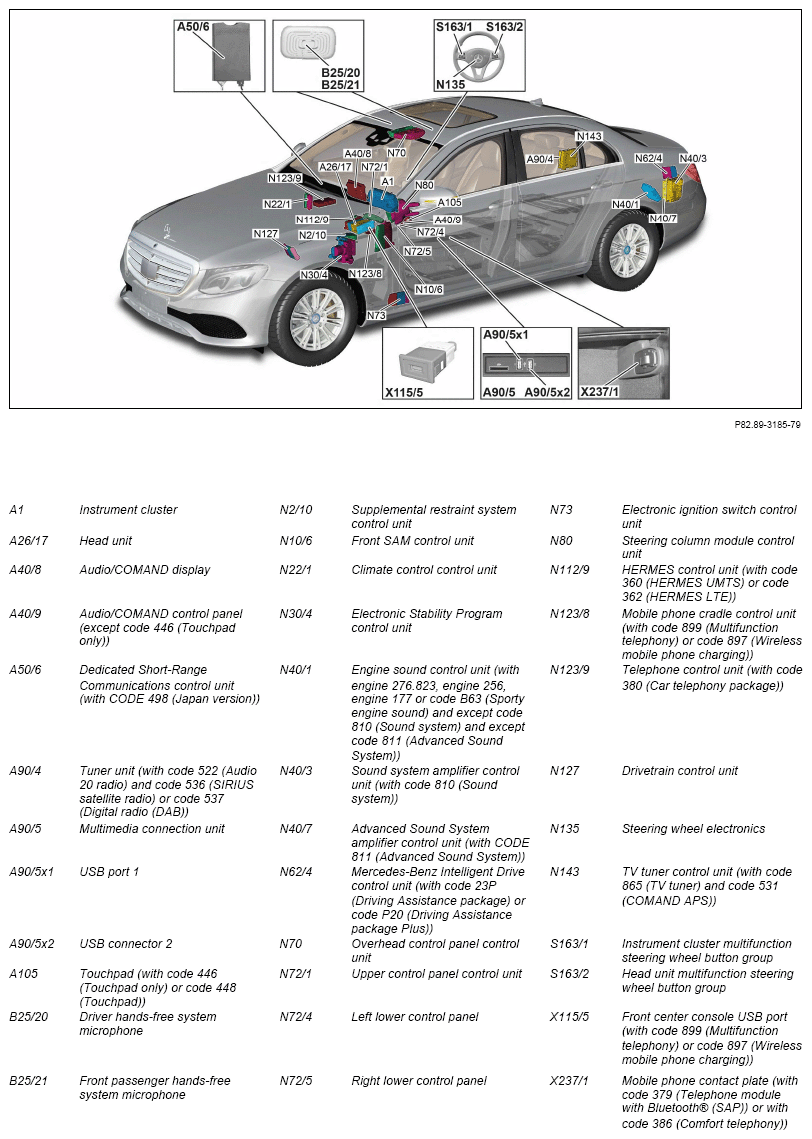

Component parts except telematics antenna system and except speaker system, shown on model 213.0

IMPORTANT Model 213 with engine 177 as of model year 2019 up to model year 2021 except code 810 (Premium sound system)

except code 811 (High-End sound system)

Model 213 with engine 256 as of model year 2019 up to model year 2021 with code M016 (Uprated engine) except code 810 (Premium sound system) except code 811 (High-End sound system)

The Midline sound system amplifier control unit (N40/2) is installed instead of the sound system amplifier control unit. The Midline sound system amplifier control unit is shown in this document together with the corresponding speaker system.

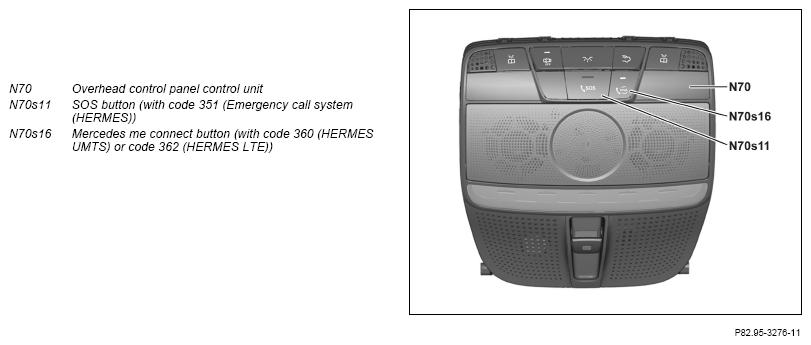

Detailed view of overhead control panel control unit as of 01.06.2018

G13747480Courtesy of MERCEDES-BENZ USA

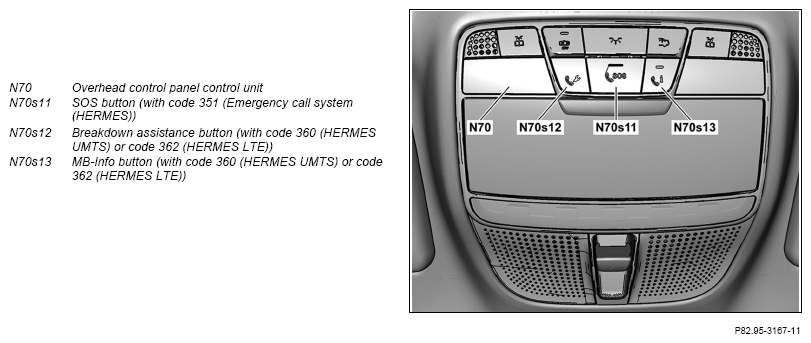

Detailed view of overhead control panel control unit up to 31.05.2018

G13747481Courtesy of MERCEDES-BENZ USA

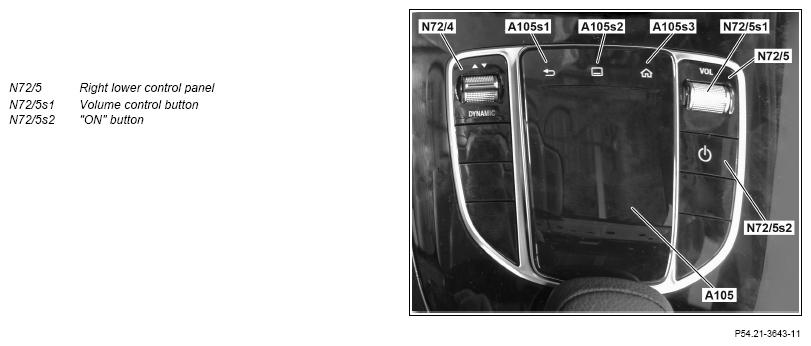

Detailed view of right lower control panel (N72/5), shown on model 213 except transmission 716.7

G13747482Courtesy of MERCEDES-BENZ USA

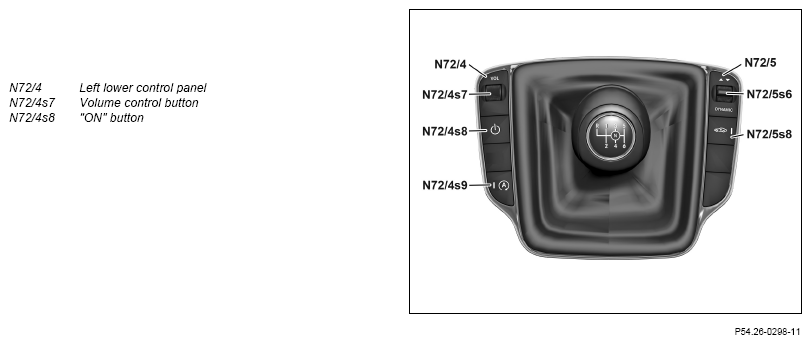

Detailed view of left lower control panel (N72/4), shown on mode 213 with transmission 716.7

G13747483Courtesy of MERCEDES-BENZ USA

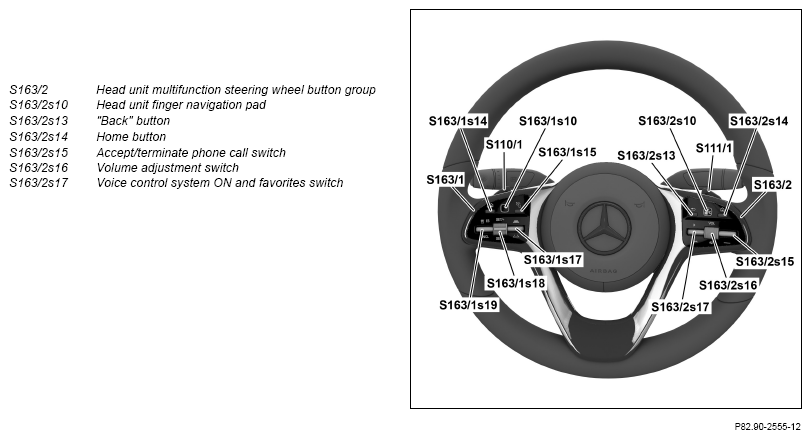

Detailed view of head unit multifunction steering wheel button group as of 01.06.2018, shown on left-hand drive vehicle

G13747484Courtesy of MERCEDES-BENZ USA

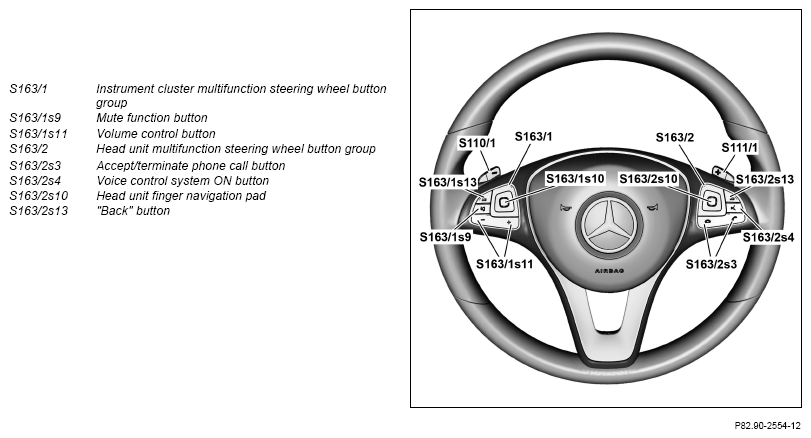

Detailed view of multifunction steering wheel up to 31.05.2018, shown on left-hand drive vehicle

G13747485Courtesy of MERCEDES-BENZ USA

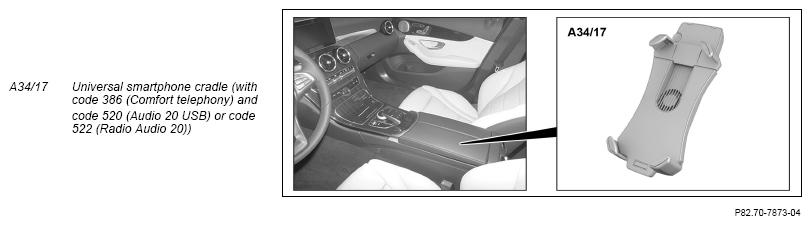

Detailed view of universal smartphone cradle (A34/17)

G13747486Courtesy of MERCEDES-BENZ USA
G13747487Courtesy of MERCEDES-BENZ USA

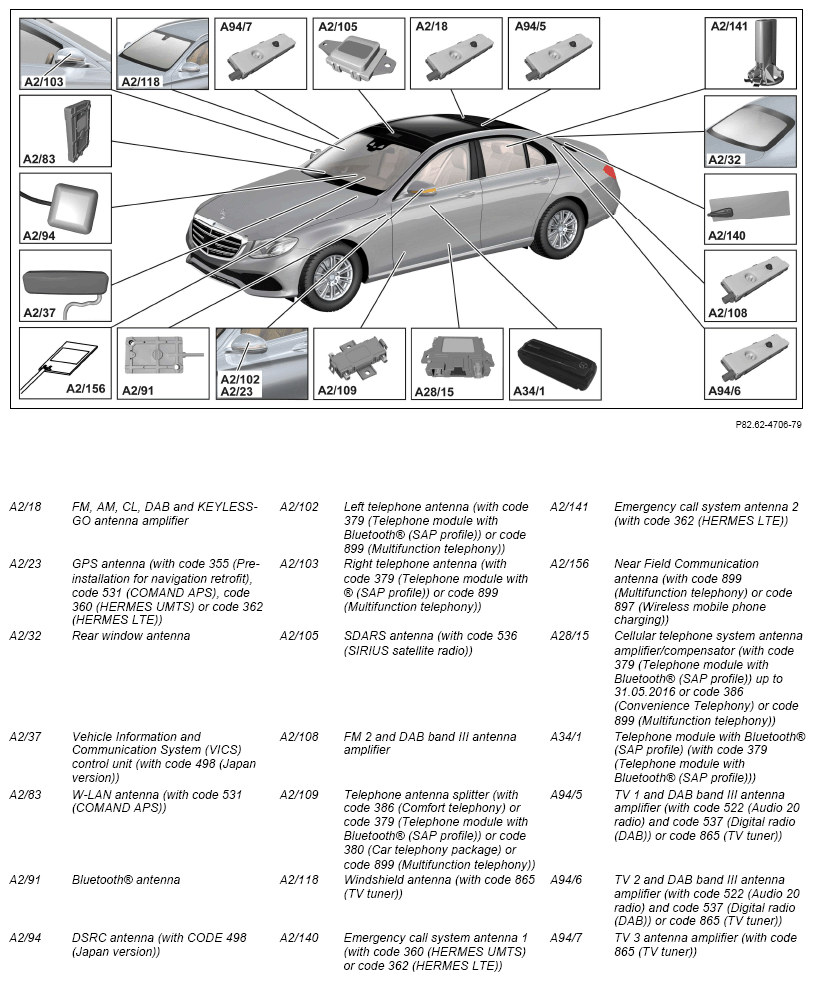

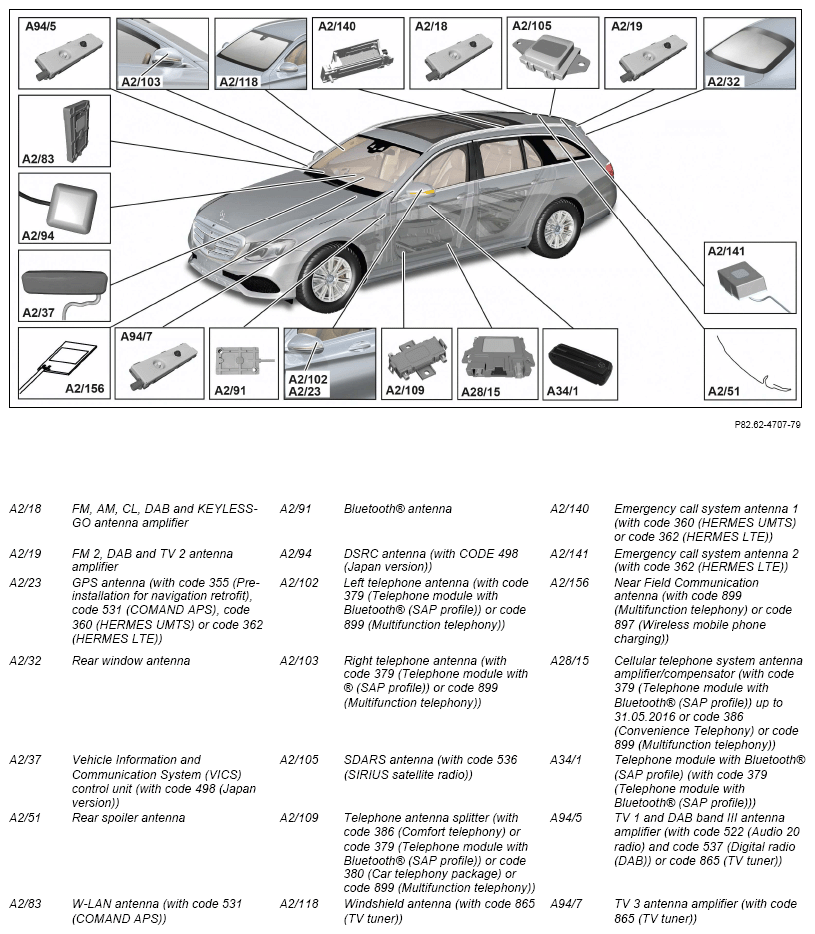

Telematics antenna system model 213.0/1, shown on model 213.0

G13747488Courtesy of MERCEDES-BENZ USA

Telematics antenna system, shown on model 213.2

G13747489Courtesy of MERCEDES-BENZ USA

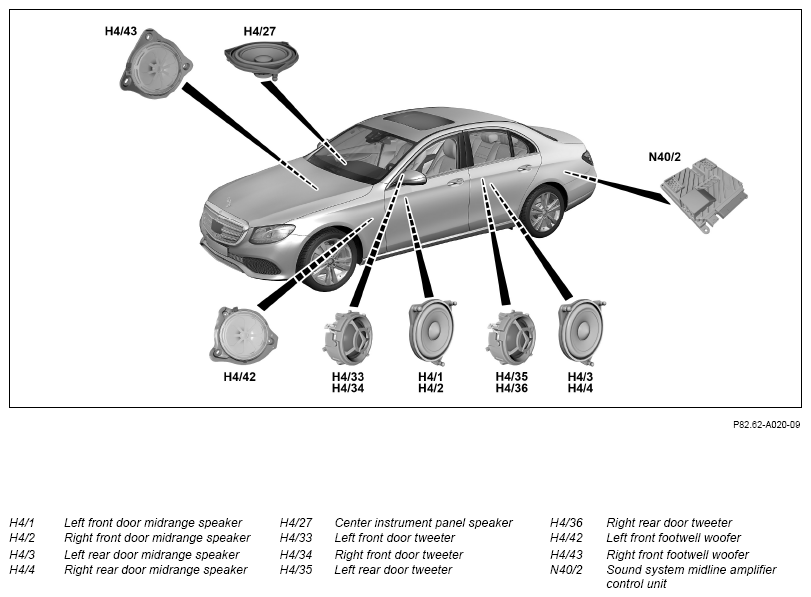

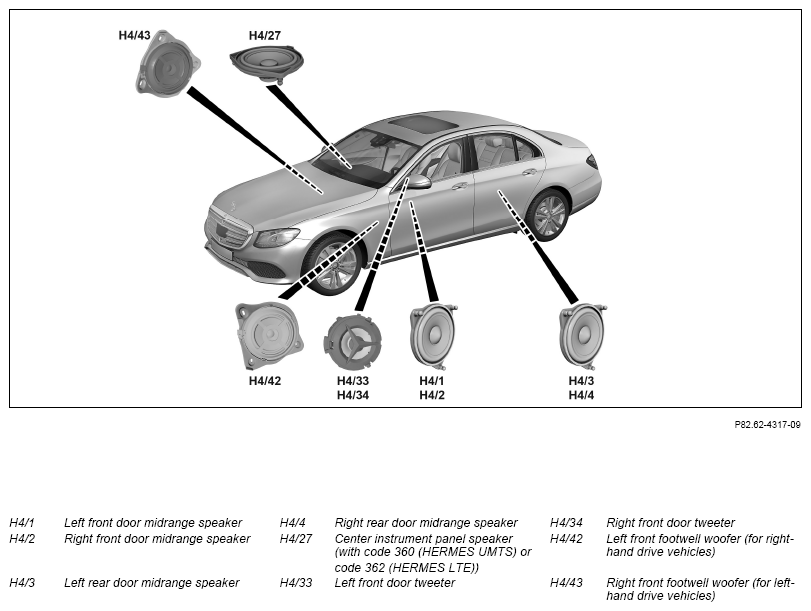

Speaker system except code 810 (Sound system) except code 811 (Advanced Sound System) and except AMG vehicles as of 01 06 2018 shown on model 213.0

G13747490Courtesy of MERCEDES-BENZ USA

Speaker system on AMG vehicles as of 01.06.2018 except code 810 (Sound system) and except code 811 (Advanced Sound System), shown on model 213.0

G13747491Courtesy of MERCEDES-BENZ USA

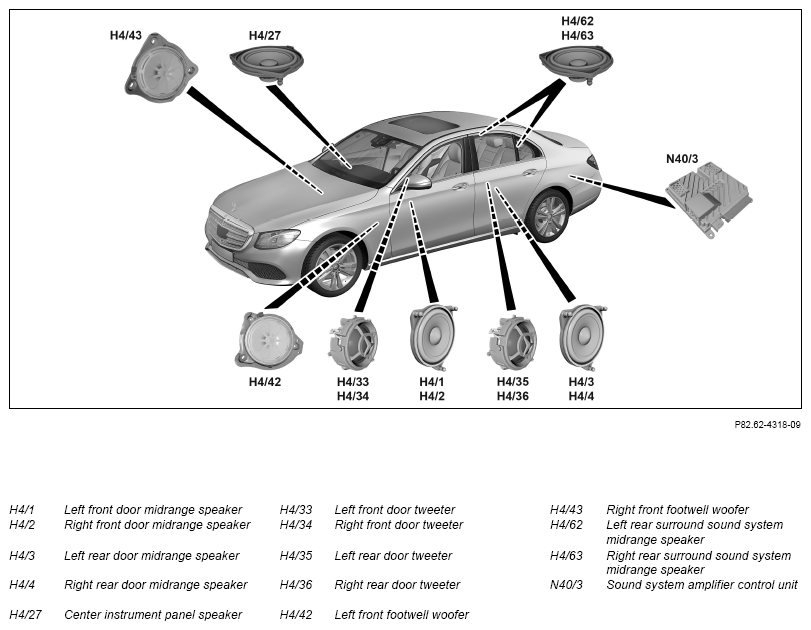

Speaker system, shown on model 213.0 with code 810 (Sound system)

G13747492Courtesy of MERCEDES-BENZ USA

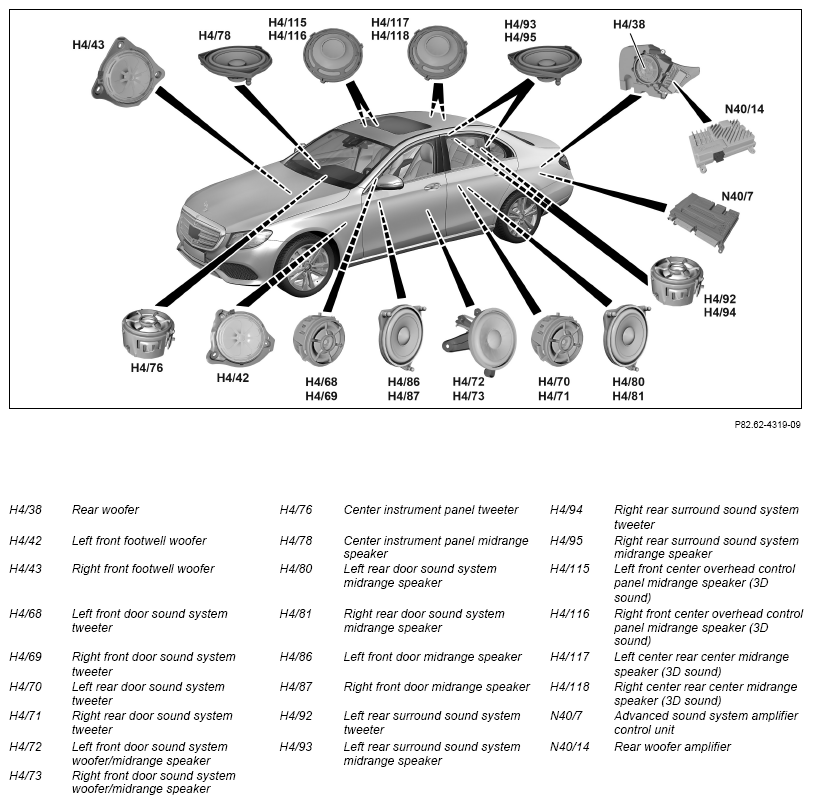

Speaker system, shown on model 213.0 with code 811 (Advanced Sound-System)

  Component description for instrument cluster A1 GF54.30-P-6000FG
  Head unit, component description Model 213 up to model year 2021 with code 520 (Audio 20 USB)
except code 506 (Audio 20 NTG 5.5 radio)
except code 522 (Audio 20 radio)
except code 531 (COMMAND APS) A26/17		 GF82.85-P-3140FG
    Model 213 up to model year 2021 with code 522 (Audio 20 radio)
except code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 531 (COMMAND APS) A26/17		 GF82.85-P-3140FGA
    Model 213 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio)
Model 213 up to model year 2021 with code 531 (COMMAND APS) A26/17		 GF82.85-P-3140FGB
  Component description for Audio/COMMAND display A40/8 GF54.30-P-6150FG
  Component description for Audio/COMMAND control panel Model 213 up to model year 2021 except code 446 (Touchpad only) A40/9 GF54.21-P-4501FG
  Tuner unit, component description Model 213 up to model year 2021 with code 522 (Audio 20 radio) with code 536 (Sirius satellite radio complete system)
Model 213 up to model year 2021 with code 522 (Audio 20 radio) with code 537 (DAB digital radio standard (Digital Audio Broadcast)) A90/4		 GF82.60-P-5015FG
  Touchpad, component description Model 213 up to model year 2021 with code 446 (Touchpad only)
Model 213 up to model year 2021 with code 448 (Touchpad) A105		 GF54.21-P-4511FG
  Touchscreen, component description Model 213.1 up to model year 2021
with code 447 (Touchscreen in rear) A105/3		 GF54.21-P-4509FG
  Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080FG
  Component description for front SAM control unit N10/6 GF54.21-P-7010FG
  Climate control, control unit, component description N22/1 GF83.40-P-2250FG
  Component description for Electronic Stability Program control unit Model 213 (except 213.016/050/053/153/216) up to model year 2021 N30/4 GF42.45-P-5119FG
    Model 213.016/050/053/153/216 up to model year 2021 N30/4 GF42.45-P-5119FGH
  Engine sound control unit, component description Model 213 with engine 177 up to model year 2019 except code 810 (Premium sound system) except code 811 (High-End sound system)
except code B63 (Engine sound via speakers)
Model 213 with engine 256 up to model year 2019 except code 810 (Premium sound system) except code 811 (High-End sound system) except code B63 (Engine sound via speakers)
Model 213 with engine 276.823 up to model year 2019 except code 810 (Premium sound system) except code 811 (High-End sound system) except code B63 (Engine sound via speakers)
Model 213 up to model year 2021 with code B63 (Engine sound via speakers) except code 810 (Premium sound system) except code 811 (High-End sound system)
N40/1		 GF54.21-P-0019FG
  Component description for sound system amplifier control unit Model 213 with engine 177 as of model year 2019 up to model year 2021 except code 810 (Premium sound system) except code 811 (High-End sound system)
Model 213 with engine 256 as of model year 2019 up to model year 2021 with code M016 (Uprated engine) except code 810 (Premium sound system) except code 811 (High-End sound system) N40/2		 GF82.62-P-5010FGB
    Model 213 up to model year 2021 with code 810 (Premium sound system) except code 811 (High-End sound system) N40/3 GF82.62-P-5010FG
    Model 213 up to model year 2021 with code 811 (High-End sound system) except code 810 (Premium sound system) N40/7 GF82.62-P-5010FGA
  Upper control panel control unit, component description N72/1 GF54.21-P-6040FG
  Lower control panel, component description N72/4, N72/5 GF54.25-P-4270FG
  Component description for overhead control panel control unit N70 GF82.20-P-5216FG
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001FG
  Component description for steering column tube module control unit Model 213 as of model year 2019 up to model year 2021 N80 GF54.21-P-6051FGA
    Model 213 up to model year 2019 N80 GF54.21-P-6051FG
  HERMES control unit, component description Model 213 up to model year 2021
with code 360 (HERMES UMTS)
Model 213 up to model year 2021
with code 362 (HERMES communications module LTE) N112/9		 GF82.85-P-0221FG
  Mobile phone cradle control unit component description Model 213 up to model year 2021 with code 897 (Front wireless telephone charging)
Model 213 up to model year 2021 with code 899 (Front wireless telephone charging and antenna) N123/8		 GF82.70-P-0201FG
  Telephone control unit, component description Model 213 up to model year 2021 with code 380 (Car telephony package) N123/9 GF82.70-P-4153FG
  Drivetrain control unit, component description Model 213 with engine 177.9 up to model year 2021 N127 GF54.21-P-2141MNA
    Model 213 with engine 256.9 up to model year 2021 N127 GF54.21-P-2141LF
    Model 213 with engine 264.9, 274.9, 276.8 up to model year 2021 N127 GF54.21-P-2141MRP
  Steering wheel electronics control unit, component description Model 213 as of model year 2019 up to model year 2021 N135 GF82.90-P-4006FG
  Digital TV tuner, component description Model 213 up to model year 2021 with code 531 (COMMAND APS) with code 865 (digital TV) N143 GF82.60-P-3118FG
  Table of contents for function description, telematics   GF82.85-P-0993FG
