Replace timing chain - AR05.10-P-7601GZ (ML500): Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

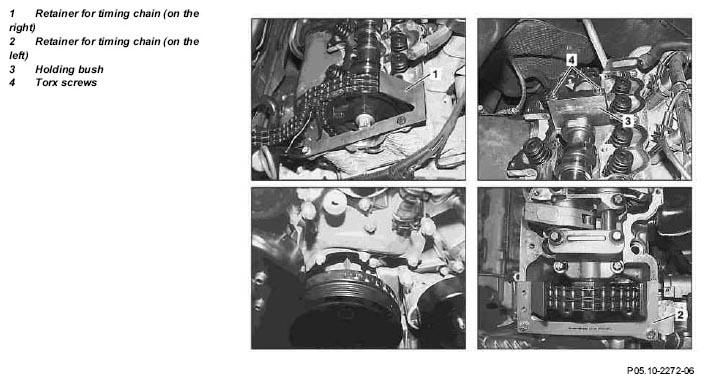

Fig 1: Identifying Timing Chain, Holding Bush And Torx Screws
G05257358Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVING Removing
DANGER Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fire, sparks, open flames or smoking.
Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.
AS54.10-Z-0001-01A
1 Disconnect ground cable from battery NOTES Insulate clamping device of the ground line in order to prevent inadvertent contact with the ground point of the battery. AR54.10-P-0003GZ
NOTES Notes on battery All models AH54.10-P-0001-01A
DANGER Risk of injury  caused by fingers being jammed or pinched  when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. When moving components, ensure that no body parts or limbs are within the operating range of moving parts. AS00.00-Z-0011-01A
2 Open engine hood and raise to vertical position   AR88.40-P-1000GZ
3 Remove one spark plug from each cylinder IMPORTANT To ensure that the engine can be easily cranked when drawing in the timing chain and to avoid the timing chain skipping, see. ↓
REFER TO MAINTENANCE   Replace spark plugs AP15.10-P-1580GZ
4 Remove cylinder head covers   AR01.20-P-5014GZ
5 Check the engine valve timing If necessary: ↓ AR05.10-P-6858GZ
    Set basic position of camshafts AR05.20-P-6020GZ
6 Remove chain tensioner   AR05.10-P-7800GZ
7 Remove camshaft Hall sensor   AR15.10-P-2000GZ
8 Crank engine in direction of rotation until the link for separating the timing chain is easily accessible IMPORTANT The timing chain is separated one chain link next to the copper plate (on right). See new timing chain.
9 Remove right camshaft bearing bridge   AR05.20-P-7103GZ
10 Install holding bush (3) onto right camshaft IMPORTANT Only fit Torx bolts (4).
    SPECIAL TOOL Holding bush Fig 3
11 Mount retainer for timing chain (on the right)
  1. and retainer for timing chain (on the left)
  2. for timing chain on the right and left cylinder head
SPECIAL TOOL Retainer Fig 2
12 Separate timing chain NOTES Cover over timing case recess with a clean cloth. Parts which have fallen into the timing case recess, must be removed.
IMPORTANT Connect the old chain to the new timing chain while pulling out the old timing chain.
AR05.10-P-7601-01AV
    SPECIAL TOOL Chain separating tool Figure
    SPECIAL TOOL Pressure screw Figure
    SPECIAL TOOL Thrust pins Figure
    SPECIAL TOOL Case Figure
INSTALLING Installing
13 Draw in new timing chain IMPORTANT Always remove the assembly link after drawing in the new timing chain. These are only an assembly aid and not intended for engine running.
IMPORTANT Pull in the new timing chain by turning the crankshaft in its standard direction of rotation.
AR05.10-P-7601-04AV
    SPECIAL TOOL Assembly links Fig 4
    SPECIAL TOOL Case Figure
14 Remove retainer for timing chain (on the right) (1) and retainer for timing chain (on the left) (2) for timing chain on the right and left cylinder head
15 Rivet new timing chain   AR05.10-P-7601-02AV
    TORQUE SPECIFICATION *BA05.20-P-1001-01B
    SPECIAL TOOL Riveting tool Fig 9
    SPECIAL TOOL Assembly inserts Fig 10
    SPECIAL TOOL Open-end wrench Fig 11
    SPECIAL TOOL Torque wrench Fig 12
    SPECIAL TOOL Case Figure
16 Crank engine in direction of rotation
17 Check the engine valve timing   AR05.10-P-6858GZ
18 Remove holding bush (3) from right camshaft
19 Fit right camshaft bearing bridge   AR05.20-P-7103GZ
20 Install camshaft Hall sensor   AR15.10-P-2000GZ
21 Installing chain tensioner   AR05.10-P-7800GZ
22 Install cylinder head covers   AR01.20-P-5014GZ
23 Install spark plugs
REFER TO MAINTENANCE Replace spark plugs   AP15.10-P-1580GZ
24 Connect ground cable to battery   AR54.10-P-0003GZ
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not grasp hot or rotating parts.
AS00.00-Z-0005-01A
25 Conduct engine test run and check the engine for leaks while it is running NOTES In the event of oil loss determine and eliminate cause, otherwise malfunctions, transmission damage, and serious environmental pollution may occur.
CAMSHAFT

Number Designation Engines 113.940/941/942/943/944/948/961/962/963/964/965/966/967/968/969/971/980/981/982/984/986/992/995
BA05.20-P-1001-01B Bolt for camshaft sprocket M12 x 45 Stage 1 Nm 50
Stage 2 ∠ ° 90
Fig 2: Identifying Retainer (112 589 04 40 00)
G05257359Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Holding Bush (112 589 05 40 00)
G05257360Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Assembly Links (602 589 02 40 00)
G05257361Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Case (602 589 00 98 00)
G05257362Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Chain Separating Tool (602 589 02 33 00)
G05257363Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Identifying Thrust Spindle (602 589 05 63 00)
G05257364Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 8: Identifying Thrust Pins (602 589 05 63 01)
G05257365Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 9: Identifying Riveting Tool (602 589 00 39 00)
G05257366Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 10: Identifying Assembly Inserts (103 589 01 63 00)
G05257367Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 11: Identifying Open End Wrench (112 589 00 01 00)
G05257368Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 12: Identifying Torque Wrench (001 589 72 21 00)
G05257369Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
