Checking the engine valve timing - AR05.10-P-6858GZ (ML500)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

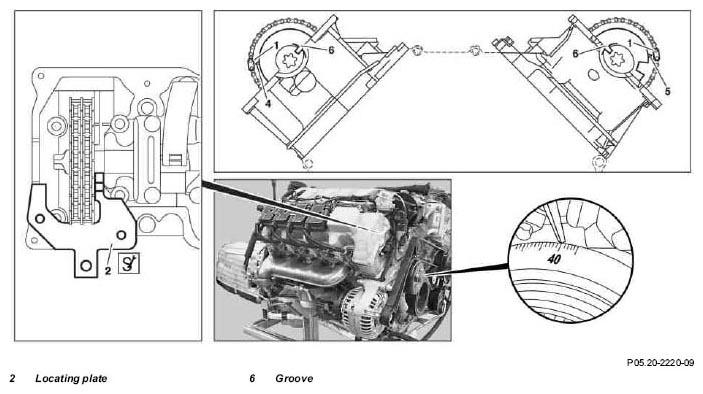

Fig 1: Identifying Locating Plate And Groove

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
1	Remove cylinder head covers		AR01.20-P-5014GZ
2	Remove right combination valve
	Checking
3	Inspect timing	Inlet	*BE05.20-P-1001-02F
		Outlet	*BE05.20-P-1002-02F
	Camshaft code number and assignment		AH05.20-N-0100-01A
4	Position engine to a 40° crank angle after ignition TDC of cylinder 1	Rotate engine at crankshaft in direction of rotation until 40° marking on belt pulley/vibration damper is aligned with marking on timing case cover. Grooves on the camshafts must point in the direction of inner V. The engine must not be turned backwards; otherwise the timing chain can get jammed.
5	Check basic position of camshafts	Place locating plate (2) for the right camshaft flush on the right cylinder head and insert it into the keyway (6) of the camshaft. Proceed same way with the left camshaft in the left cylinder head.
		Right locating plate	Fig 2
		Left locating plate If both locating plates cannot be inserted into the grooves: ↓	Fig 3
		Set the basic position of camshafts	AR05.20-P-6020GZ
	Install
6	Fit right combination valve	Replace seal on combination valve.
			*BA09.20-P-1001-01D
7	Install cylinder head covers		AR01.20-P-5014GZ

CHECK VALUES FOR TIMING

Number	Designation			Engine 113.960/961/962/963/964/965/967/968/971 on the left	Engine 113.960/961/962/963/964/965/967/968/971 on the right
BE05.20-P-1001-02F	Timing of inlet valve with 2 mm play and used timing chain	opens after TDC	°CA	30.9	32.5
BE05.20-P-1001-02F	Timing of inlet valve with 2 mm play and used timing chain	closes after BDC	°CA	25.7	27.3
BE05.20-P-1002-02F	Timing of exhaust valve with 2 mm play and used timing chain	opens before BDC	°CA	23, 2	21.6
		opens after BDC	°CA	-	-
		closes before TDC	°CA	9.1	7.5

INTAKE MANIFOLD

Number	Designation			Engines 112, 113
BA09.20-P-1001-01D	Bolt, intake manifold to cylinder head	M8	Nm	20

Fig 2: Identifying Locating Plate (112 589 00 32 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Locating Plate (112 589 01 32 00

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
