Drawing in timing chain - AR05.10-P-7601-04AV

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

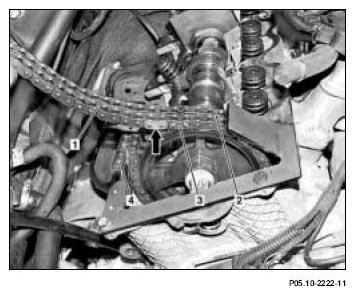

Fig 1: Identifying Assembly Links (602 589 02 40 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Case (602 589 00 98 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Connect the new timing chain (1) and the old timing chain (2) with the assembly link (3) (arrow).
Do not use an assembly plate and an assembly retainer. While drawing in the new timing chain (1), the assembly retainer can get jammed and jump off at the slide rails.
Slowly rotate crankshaft in direction of rotation of engine until the ends of the new timing chain (1) can be connected.
Always keep new timing chain (1) meshed with the camshaft sprocket. Pull out the free end of the timing chain (4) steadily corresponding with the drawing in of the new timing chain (1).
Remove the assembly link (3) and place the old timing chain (2) to the side.

Fig 3: Locating Assembly Link & Timing Chain
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Cover the timing case recess with a clean cloth.
Parts which have dropped into the timing case recess, must be removed.
Connect both ends of the new timing chain (1) with the new riveted link (5).

While inserting the new riveted link (5) ensure that the center plate (6) is also installed.

Fig 4: Identifying Chain Riveted Link And Center Plate

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
