Remove/install camshaft Hall sensor (Engine 113) - AR15.10-P-2000GZ
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.964 in MODEL 164.175
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000GZ | |
| Information on preventing damage to electronic components due to electrostatic discharge | All models | AH54.00-P-0001-01A | |
| 2 | Disconnect electrical connector at camshaft Hall sensor (B6/1) | ||

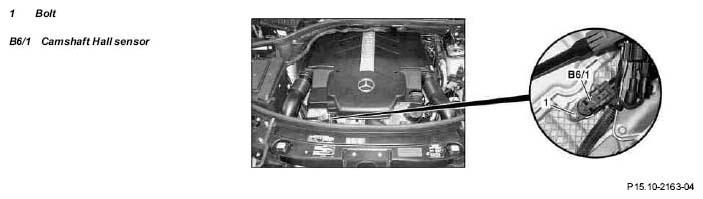

| 3 | Remove screw (1) | *BA15.10-P-1002-03A | |
| 4 | Pull camshaft Hall sensor (B6/1) out of cylinder head | ||
| 5 | Install in the reverse order |
POSITION SENSOR
| Number | Designation | Engines 113.940/941/ 942/943/944/ 948/960/961/ 962/963/964/ 965/966/967/ 968/969/971/ 980/981/982/ 984/986/992/ 993/995 | |
|---|---|---|---|
| BA15.10-P-1002-03A | Camshaft Hall sensor on cylinder head | Nm | 8 |
