Separate timing chain - AR05.10-P-7601-01AV

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Chain Separating Tool (602 589 02 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Thrust Spindle (602 589 05 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Thrust Pins (602 589 05 63 01)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Case (602 589 00 98 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Assemble chain separating tool (1) and thrust spindle (2).

Fig 5: Identifying Chain Separating Tool
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fit the chain separating tool (1) with the pressure screw (2) at the chain link to the right of the copper plate on the timing chain (4).
See new timing chain.
Screw in the guide sleeve (3) of the pressure screw (2) till it touches the chain link.
Ensure that the guide sleeve (3) is located above the clinch bolt of the chain link.
Screw in the pressure screw (2) and separate the timing chain (4).
Remove the pressure screw (2).
Remove the chain separating tool (1)and fit it at the second clinch bolt.
Repeat steps 3, 4 and 5 at the second clinch bolt.
Do not let the pushed out clinch bolts and plates to fall into the crankcase.
Remove the chain separating tool (1).

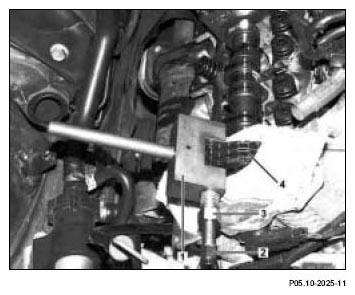

Fig 6: Identifying Chain Separating Tool, Pressure Screw, Guide Sleeve And Timing Chain

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
