Door And Liftgate Location Index

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

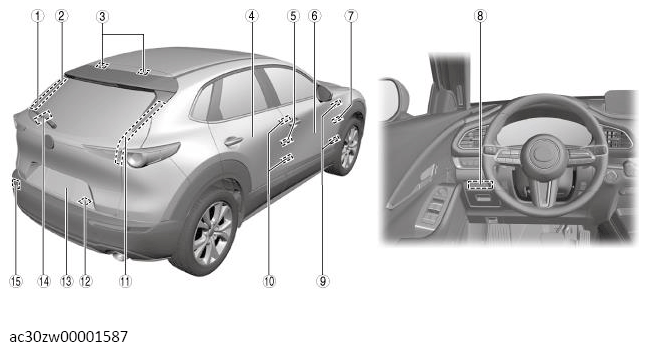

COMPONENT DESCRIPTION

1	Stay damper (without power liftgate) (See STAY DAMPER REMOVAL/INSTALLATION .) (See STAY DAMPER DISPOSAL .)
2	Power liftgate (PLG) drive unit (with PLG) (See POWER LIFTGATE (PLG) DRIVE UNIT REMOVAL/INSTALLATION .) (See POWER LIFTGATE (PLG) DRIVE UNIT INSPECTION .) (See STAY DAMPER DISPOSAL .)
3	Liftgate hinge (See LIFTGATE HINGE REMOVAL/INSTALLATION .)
4	Rear door (See REAR DOOR REMOVAL/INSTALLATION .) (See DOOR ADJUSTMENT .)
5	Rear door checker (See REAR DOOR CHECKER REMOVAL/INSTALLATION .)
6	Front door (See FRONT DOOR REMOVAL/INSTALLATION .) (See DOOR ADJUSTMENT .)
7	Front door checker (See FRONT DOOR CHECKER REMOVAL/INSTALLATION .)
8	Power liftgate (PLG) front switch (with PLG) (See POWER LIFTGATE (PLG) FRONT SWITCH REMOVAL/INSTALLATION .) (See POWER LIFTGATE (PLG) FRONT SWITCH INSPECTION (US) .)
9	Front door hinge (See FRONT DOOR HINGE REMOVAL/INSTALLATION .)
10	Rear door hinge (See REAR DOOR HINGE REMOVAL/INSTALLATION .)
11	Power liftgate (PLG) touch sensor (with PLG) (See POWER LIFTGATE (PLG) TOUCH SENSOR REMOVAL/INSTALLATION .) (See POWER LIFTGATE (PLG) TOUCH SENSOR INSPECTION .)
12	Power liftgate (PLG) rear switch (with PLG) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .) (See POWER LIFTGATE (PLG) REAR SWITCH INSPECTION .)
13	Liftgate (See LIFTGATE REMOVAL/INSTALLATION .) (See LIFTGATE ADJUSTMENT .)
14	Power liftgate (PLG) control module (with PLG) (See POWER LIFTGATE (PLG) CONTROL MODULE REMOVAL/INSTALLATION .) (See POWER LIFTGATE (PLG) CONTROL MODULE INSPECTION .) (See POWER LIFTGATE (PLG) FULLY OPEN POSITION CHANGE .) (See POWER LIFTGATE (PLG) FULLY OPEN POSITION RESET .) (See POWER LIFTGATE (PLG) INITIALIZATION PROCEDURE .)
15	Power liftgate (PLG) buzzer (with PLG) (See POWER LIFTGATE (PLG) BUZZER REMOVAL/INSTALLATION .) (See POWER LIFTGATE (PLG) BUZZER INSPECTION .)
