Power Liftgate (PLG) Front Switch Inspection (Us)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For the power liftgate (PLG) front switch removal/installation, refer to the cluster switch removal/installation. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

Disconnect the negative battery terminal.
Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

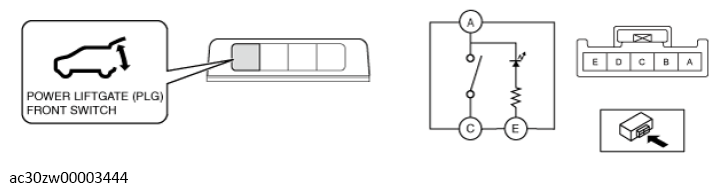

Verify that the continuity between the power liftgate (PLG) front switch terminals is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
Apply battery voltage to cluster switch terminal E, and connect terminal A to ground.
Verify that the LED illuminates.
- If there is any malfunction, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
