Front Door Checker Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When the front door checker securing bolt is removed, the front door may open until it contacts the front fender panel causing the front door and the front fender panel to be damaged. Before removing the front door checker, overlap and adhere the protective tape to the position shown in the illustration and be careful not to damage the front door and the front fender panel.

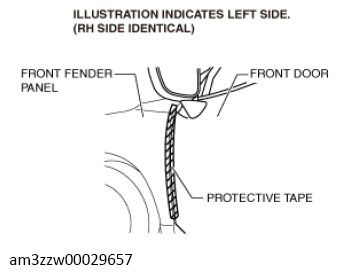

G13559927Courtesy of MAZDA MOTORS CORP.
  1. Fully close the front door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    3. Power window sub switch (front) (to remove from passenger's side) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
    4. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)
    5. Service hole cover No. 1 (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  4. Remove the bolt shown in the illustration.

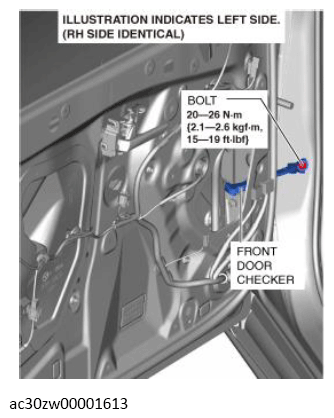

    Fig 1: Front Door Checker Bolt With Torque Specification
    G13559928Courtesy of MAZDA MOTORS CORP.
  5. Remove the nuts shown in the illustration.

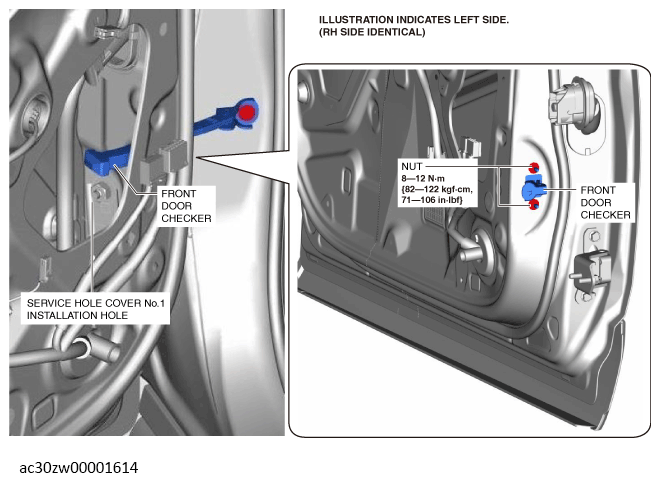

    Fig 2: Front Door Checker Nuts With Torque Specification
    G13559929Courtesy of MAZDA MOTORS CORP.
  6. Pull out the front door checker from the service hole cover No. 1 installation hole.
  7. Install in the reverse order of removal.
