Rear Door Hinge Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Rear door (See REAR DOOR REMOVAL/INSTALLATION .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    5. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    6. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolts shown in the illustration.

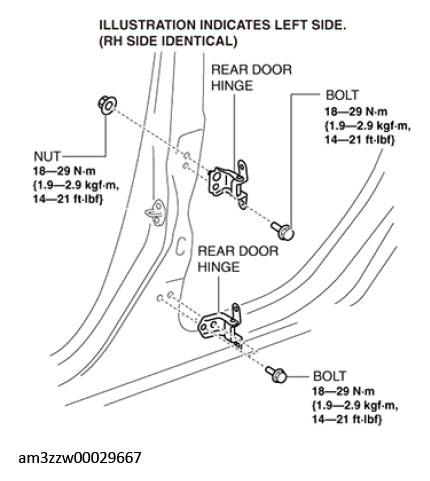

    Fig 1: Rear Door Hinge Bolts And Nut With Torque Specification
    G13178609Courtesy of MAZDA MOTORS CORP.
  4. Remove the nut.
  5. Remove the rear door hinges.
  6. Install in the reverse order of removal.
  7. Adjust the rear door. (See DOOR ADJUSTMENT .)
