Front Door Hinge Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Upper face (See UPPER FACE REMOVAL/INSTALLATION .)
2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
4. Front bumper slider No. 1 (See BUMPER SLIDER REMOVAL/INSTALLATION .)
5. Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
6. Front door (See FRONT DOOR REMOVAL/INSTALLATION .)
7. Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
8. Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION .)
9. Side step molding (See SIDE STEP MOLDING REMOVAL .) (See SIDE STEP MOLDING INSTALLATION .)
10. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
Remove the bolts shown in the illustration.

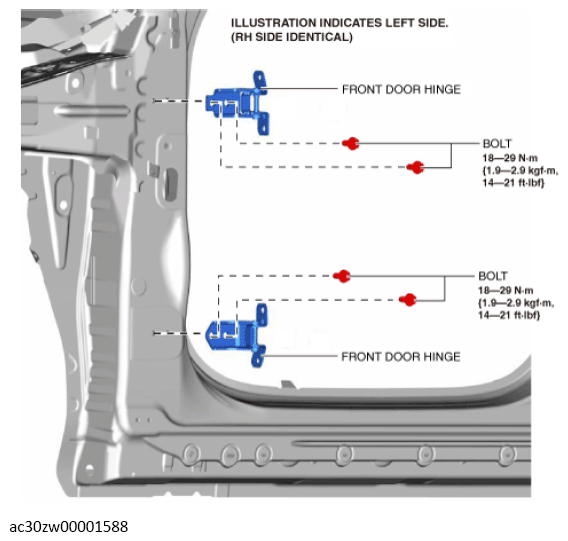

Fig 1: Front Door Hinge Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the front door hinges.
Install in the reverse order of removal.
Adjust the front door. (See DOOR ADJUSTMENT .)
Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
Adjust the headlight aiming. (See HEADLIGHT AIMING (US) .)
