Rear Door Checker Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Replacement part

Grommet	Rear door speaker hole cover
Quantity: 3	Quantity:
Location of use: Rear door speaker hole cover	Location of use: Rear door panel

Fully close the rear door glass.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the power window sub switch (rear). (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

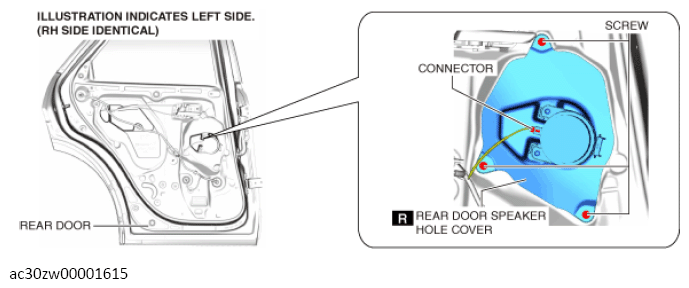

Remove the screws shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Disconnect the connector shown in the illustration.

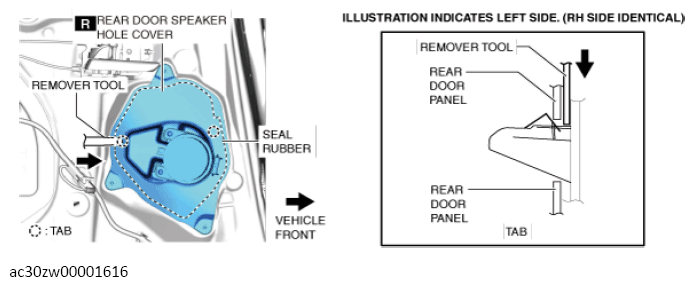

Insert a remover tool into the position shown in the illustration, move it in the direction of the arrow, and detach the tabs from the rear door panel.

Courtesy of MAZDA MOTORS CORP.
Remove the rear door speaker hole cover with the rear door speaker.

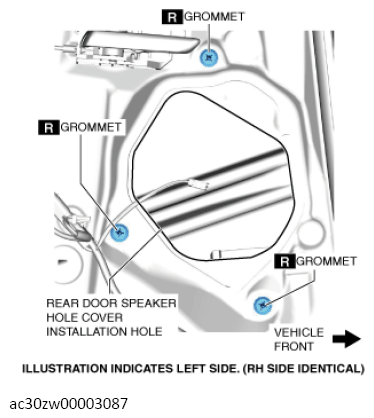

Remove the grommets.

Courtesy of MAZDA MOTORS CORP.

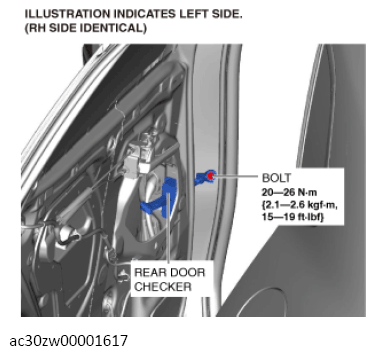

Remove the bolt shown in the illustration.

Fig 1: Rear Door Checker Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.

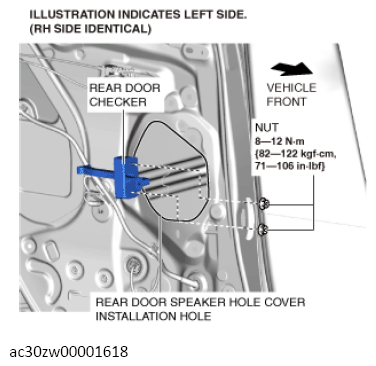

Remove the nuts shown in the illustration.

Fig 2: Rear Door Checker Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Pull out the rear door checker from the rear door speaker hole cover installation hole.
Install in the reverse order of removal.
