Door Adjustment

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

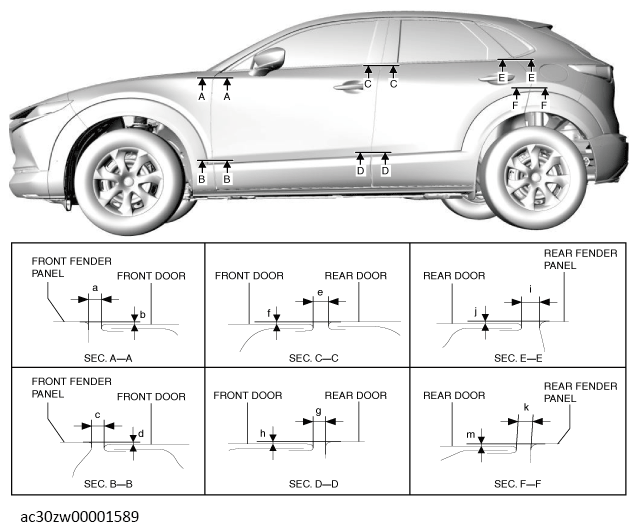

Measure the gap and height difference between the door and the body.

Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. 2.4-4.4 mm {0.10-0.17 in}
2. -1.0-1.0 mm {-0.039-0.039 in}
3. 2.6-4.3 mm {0.11-0.16 in}
4. -1.0-0.9 mm {-0.03-0.03 in}
5. 3.3-5.1 mm {0.13-0.20 in}
6. -1.0-1.0 mm {-0.039-0.039 in}
7. 2.5-4.3 mm {0.10-0.16 in}
8. -1.0-1.0 mm {-0.039-0.039 in}
9. 3.7-5.7 mm {0.15-0.22 in}
10. -1.0-1.0 mm {-0.039-0.039 in}
11. 2.8-4.8 mm {0.12-0.18 in}
12. Not used
13. -1.0-1.0 mm {-0.039-0.039 in}
- If the measured value exceeds the standard clearance, adjust the door using the following procedure:
  1. Loosen the door hinge installation bolts and adjust the door.
  2. Tighten the door hinge installation bolts. (See FRONT DOOR REMOVAL/INSTALLATION .) (See REAR DOOR REMOVAL/INSTALLATION .)
  3. If the door does not open/close smoothly, adjust it by loosening the door lock striker installation screw. (See DOOR LOCK STRIKER ADJUSTMENT .)
  4. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
  5. If the front door is adjusted, perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
