Interior Trim Location Index

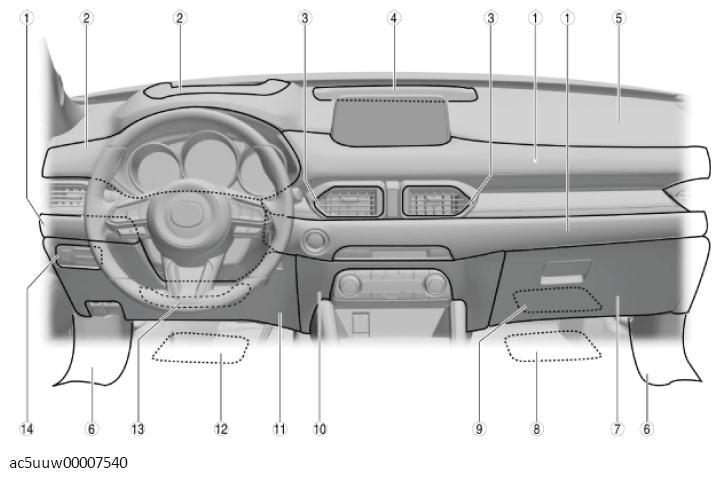

Fig 1: Dashboard Components
G11427965Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Decoration panel
(See DECORATION PANEL REMOVAL/INSTALLATION .)
(See DECORATION PANEL DISASSEMBLY/ASSEMBLY .)
2 Meter hood
(See METER HOOD REMOVAL/INSTALLATION .)
3 Ventilator grille
(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
4 Speaker grille
(See SPEAKER GRILLE REMOVAL/INSTALLATION .)
5 Dashboard
(See DASHBOARD REMOVAL/INSTALLATION .)
(See DASHBOARD DISASSEMBLY/ASSEMBLY .)
6 Front side trim
(See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
7 Passenger-side lower panel
(See LOWER PANEL REMOVAL/INSTALLATION .)
8 Foot support
(See FOOT SUPPORT REMOVAL/INSTALLATION .)
9 Dashboard under cover
(See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
10 Center lower panel
(See CENTER LOWER PANEL REMOVAL/INSTALLATION .)
11 Driver-side lower panel
(See LOWER PANEL REMOVAL/INSTALLATION .)
12 Heel cushion
(See HEEL CUSHION REMOVAL/INSTALLATION .)
13 Knee bolster (With knee bolster)
(See KNEE BOLSTER REMOVAL/INSTALLATION .)
14 Cluster switch
(See CLUSTER SWITCH REMOVAL/INSTALLATION .)

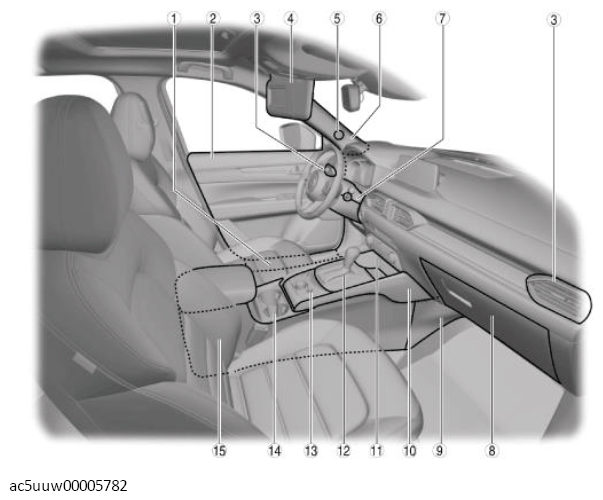

Fig 2: Interior Components (Front)
G11427966Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Front scuff plate
(See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2 Front door trim
(See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
(See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
3 Ventilator grille
(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
4 Sunvisor
(See SUNVISOR REMOVAL/INSTALLATION .)
5 Speaker grille (With tweeter)
(See SPEAKER GRILLE REMOVAL/INSTALLATION .)
6 A-pillar trim
(See A-PILLAR TRIM REMOVAL/INSTALLATION .)
7 Column cover
(See COLUMN COVER REMOVAL/INSTALLATION .)
8 Glove compartment
(See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
9 Side wall
(See SIDE WALL REMOVAL/INSTALLATION .)
10 Console side panel
(See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
11 Front console box
(See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
12 Shift panel
(See SHIFT PANEL REMOVAL/INSTALLATION .)
13 Switch panel
(See SWITCH PANEL REMOVAL/INSTALLATION .)
14 Cup holder
(See CUP HOLDER REMOVAL/INSTALLATION .)
15 Rear console
(See REAR CONSOLE REMOVAL/INSTALLATION .)
(See REAR CONSOLE DISASSEMBLY/ASSEMBLY .)
(See CONSOLE LID REMOVAL/INSTALLATION .)

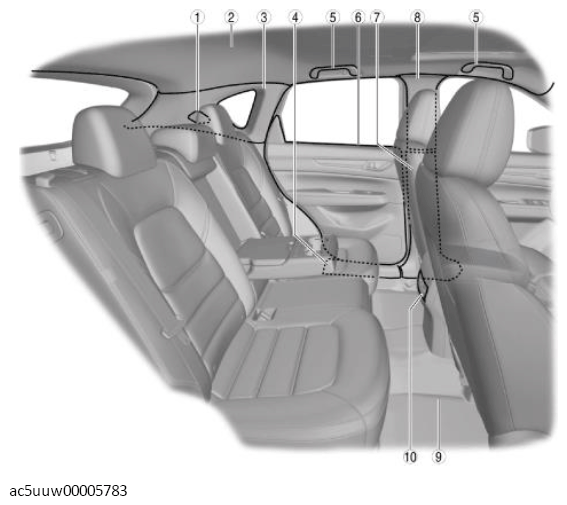

Fig 3: Interior Components (Rear)
G11427967Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Speaker grille (With Bose °)
(See SPEAKER GRILLE REMOVAL/INSTALLATION .)
2 Headliner
(See HEADLINER REMOVAL/INSTALLATION .)
3 C-pillar trim
(See C-PILLAR TRIM REMOVAL/INSTALLATION .)
4 Rear scuff plate
(See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
5 Assist handle
(See ASSIST HANDLE REMOVAL/INSTALLATION .)
6 Rear door trim
(See REAR DOOR TRIM REMOVAL/INSTALLATION .)
(See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY .)
7 B-pillar lower trim
(See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
8 B-pillar upper trim
(See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
9 Floor covering
(See FLOOR COVERING REMOVAL/INSTALLATION .)
10 Ventilator grille (With rear vent duct)
(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)

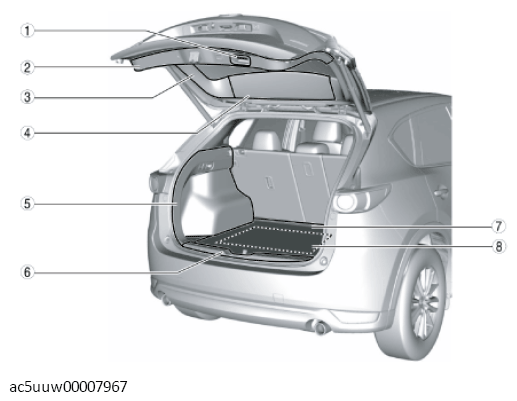

Fig 4: Rear Components
G11427968Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Liftgate recess
(See LIFTGATE RECESS REMOVAL/INSTALLATION .)
2 Liftgate lower trim
(See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
3 Liftgate side trim
(See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
4 Liftgate upper trim
(See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
5 Trunk side trim
(See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
6 Trunk end trim
(See TRUNK END TRIM REMOVAL/INSTALLATION .)
7 Trunk board
(See TRUNK BOARD REMOVAL/INSTALLATION .)
8 Sub-trunk
(See SUB-TRUNK REMOVAL/INSTALLATION .)
