Knee Bolster Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    5. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    6. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)

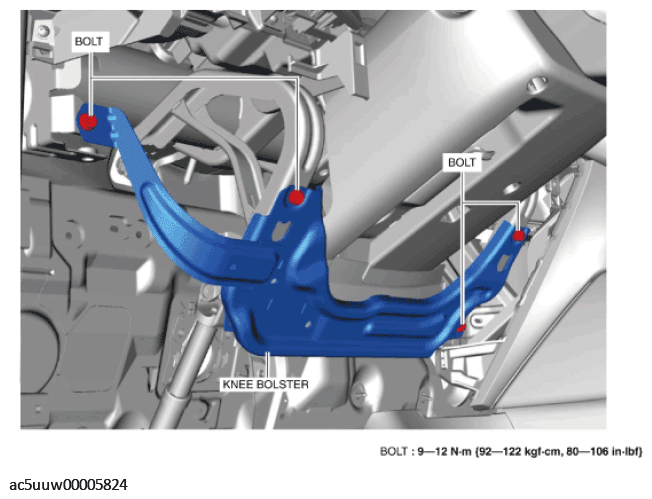

  3. Remove the bolts.
    Fig 1: Knee Bolster And Bolts
    G11427969Courtesy of MAZDA MOTORS CORP.

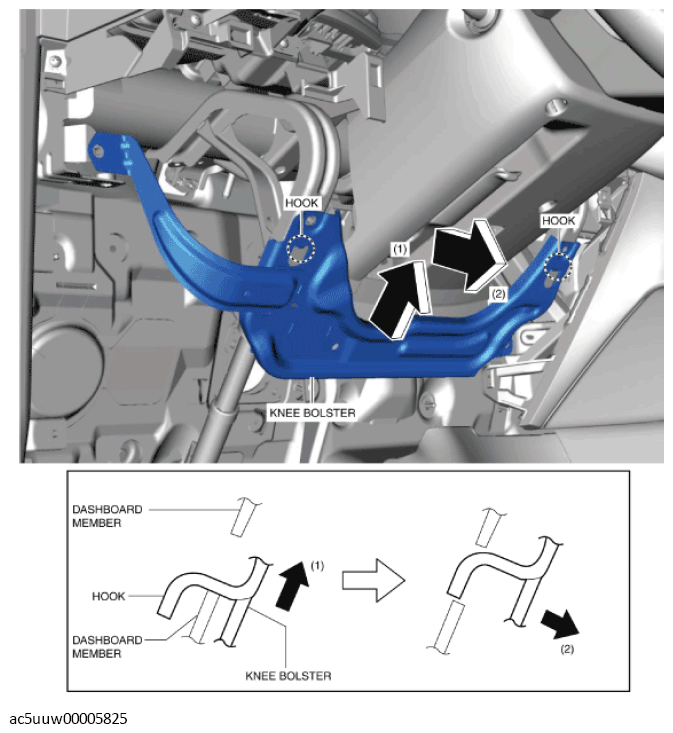

  4. Pull the knee bolster in the order of arrows (1), (2) while detaching the hooks.
    Fig 2: Pulling Knee Bolster In Order Of Arrows
    G11427970Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
