Cup Holder Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
Remove the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION .)
Open the console lid and remove the storage box.

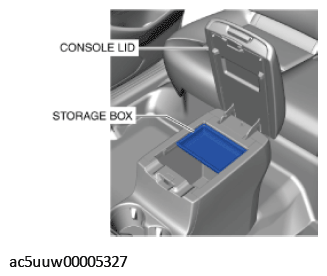

Fig 1: Console Lid And Storage Box
Courtesy of MAZDA MOTORS CORP.
Insert the remover tools into the service holes.

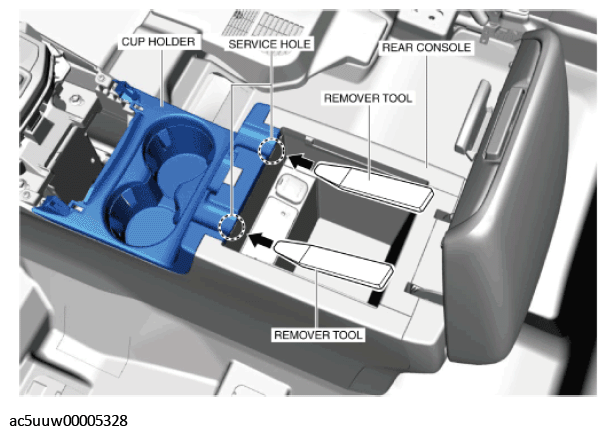

Fig 2: Inserting Remover Tools Into Service Holes
Courtesy of MAZDA MOTORS CORP.
Move the remover tools in the direction of the arrows shown in the figure and detach the clips from the rear console.

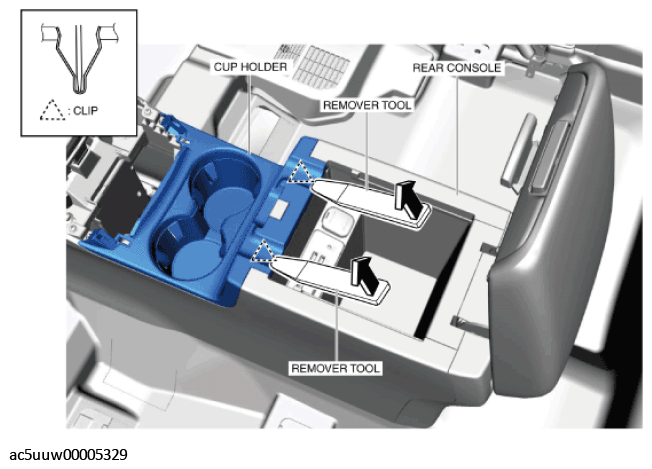

Fig 3: Detaching Rear Console Clips Using Remover Tools
Courtesy of MAZDA MOTORS CORP.
Move the cup holder in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips and hooks.

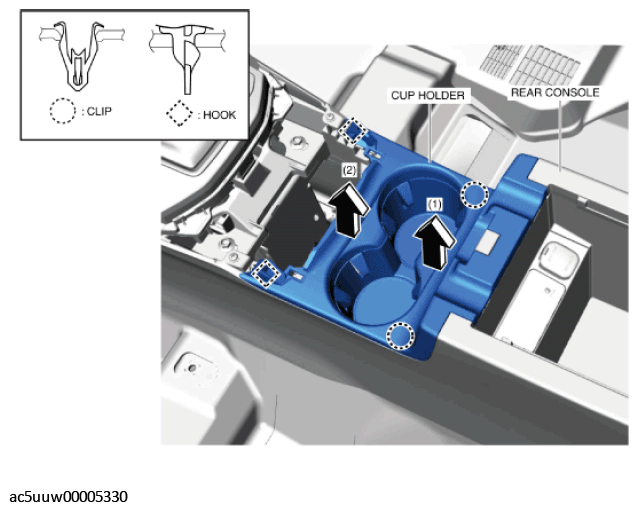

Fig 4: Removing Cup Holder
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
